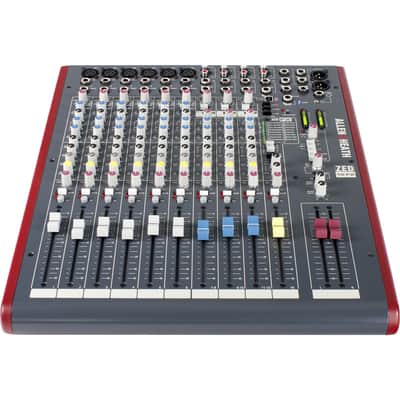

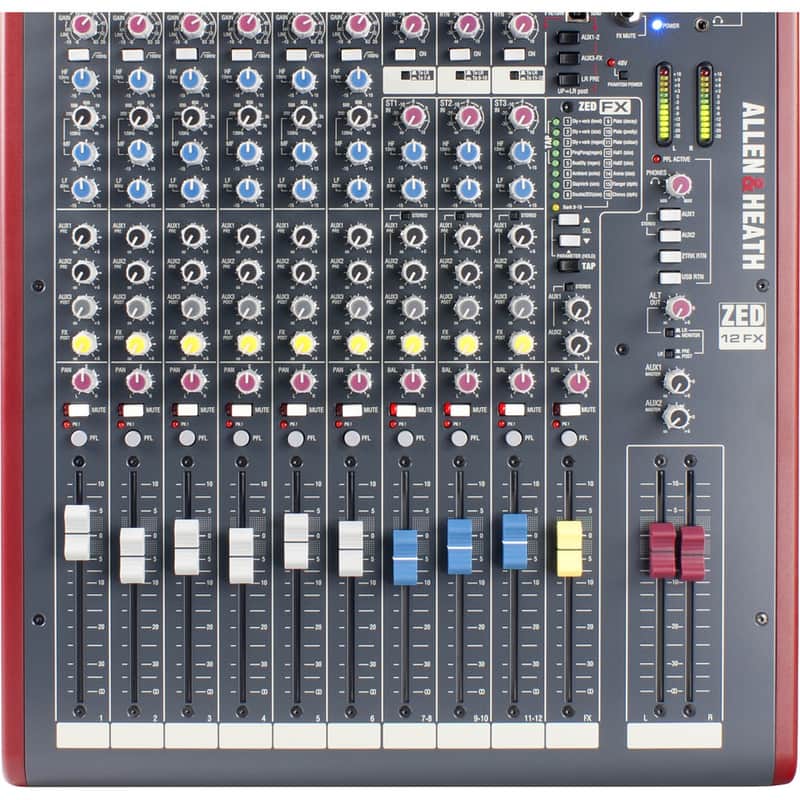

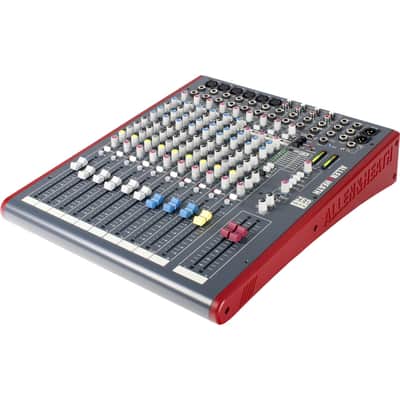

The Allen & Heath ZED-12FX is a full-size live sound mixer with 6 mono mic/line channels, 3 stereo line channels, 16 built-in 24-bit effects, and 100mm ALPS faders. Featuring DuoPre preamps with 69dB gain range, 3-band EQ with sweepable mid, 4 aux sends (including a dedicated internal FX send), channel inserts, and a stereo USB interface, the ZED-12FX delivers professional live mixing with onboard processing.

Inputs and Outputs

• 6 mono mic/line channels with XLR inputs (DuoPre, 69dB gain)
• 3 stereo line channels (1/4" TRS + RCA on channels 7-10)
• 4 aux sends (2 pre-fade, 1 post-fade, 1 internal FX post-fade)
• Channel inserts on mono channels 1-6 and main stereo bus
• Main stereo XLR L/R, 1/4" mono output
• RCA alt outputs, RCA record outputs
• 1/4" + 3.5mm headphone outputs
• +48V global phantom power (6 channels)

EQ and Processing

• 3-band EQ with sweepable mid on mono channels 1-6
• 2-band EQ on stereo channels 7-12
• 16 built-in 24-bit effects: reverbs, delays, chorus, flange

Recording

• 2-in / 2-out USB 1.1 audio interface
• 16-bit resolution, 32/44.1/48 kHz sample rate
• Sonar LE included

Specifications

• Faders: 12 x 100mm ALPS faders
• Metering: 12-segment L/R peak meters
• Dimensions: 385 x 98 x 465 mm (15.2" x 3.9" x 18.3") W x H x D
• Weight: 6.5 kg / 14.3 lbs
• Rack Mount: Optional (ZED1402-RK19)

In the Box

• ZED-12FX Mixer
• Mains Lead
• Type A-B USB Lead
• User Guide
• Sonar LE Install CD
