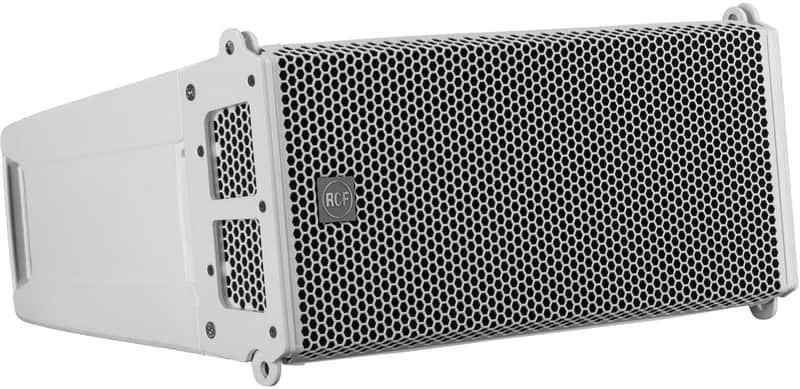

RCF HDL6-A W 1400 Watt Active 2 Way Line Array Module Speaker White

The HDL6-A is the ideal choice when line array performance is needed and a fast and easy set-up a must. A 1400 W 2-channel class-D amplifier powers the system. A powerful DSP processes the sound including crossover, phase correction, limiting and protection. The system features state-of-the-art RCF transducers two powerful 6.0” woofers for a solid bass reproduction plus a high powered 1.7” voice coil compression driver mounted on a precise 100° x 10° waveguide delivers vocal clarity with high definition and an incredible dynamic.

Key Features

• 1400 W, two-way amplification
• 131 dB max SPL
• 1.7" voice coil neodymium compression driver
• 2 x high-power neodymium 6.0"woofers
• 48 kHz, 32 bit floating point DSP processing
• Symmetrical design
• Extremely low weight
• FiRPHASE processing

Technical Specifications

Acoustical specifications
FREQUENCY RESPONSE
65 Hz ÷ 20000 Hz
MAX SPL @ 1M
131 dB
HORIZONTAL COVERAGE ANGLE
100°
VERTICAL COVERAGE ANGLE
10°
Transducers
COMPRESSION DRIVER
1.0'' neo, 1.75'' v.c
WOOFER
2 x 6.0'' neo, 2.0'' v.c
Input/Output section
INPUT SIGNAL
bal/unbal
INPUT CONNECTORS
XLR
OUTPUT CONNECTORS
XLR
INPUT SENSITIVITY
+4 dBu
Processor section
CROSSOVER FREQUENCIES
900 Hz
PROTECTIONS
Thermal, RMS
LIMITER
Soft Limiter
CONTROLS
HF correction
Power section
TOTAL POWER
1400 W Peak, 700 W RMS
HIGH FREQUENCIES
400 W Peak, 200 W RMS
LOW FREQUENCIES
1000 W Peak, 500 W RMS
COOLING
Convection
CONNECTIONS
Powercon IN/OUT
Standard compliance
CE MARKING
Yes
Physical specifications
CABINET/CASE MATERIAL
PP Composite
HARDWARE
Array fittings
HANDLES
2 Back
GRILLE
Steel
COLOR
Black
Size
HEIGHT
237 mm / 9.33 inches
WIDTH
470 mm / 18.5 inches
DEPTH
377 mm / 14.84 inches
WEIGHT
11.6 kg / 25.57 lbs
Shipping informations
PACKAGE HEIGHT
260 mm / 10.24 inches
PACKAGE WIDTH
550 mm / 21.65 inches
PACKAGE DEPTH
425 mm / 16.73 inches
PACKAGE WEIGHT
13 kg / 28.66 lbs
