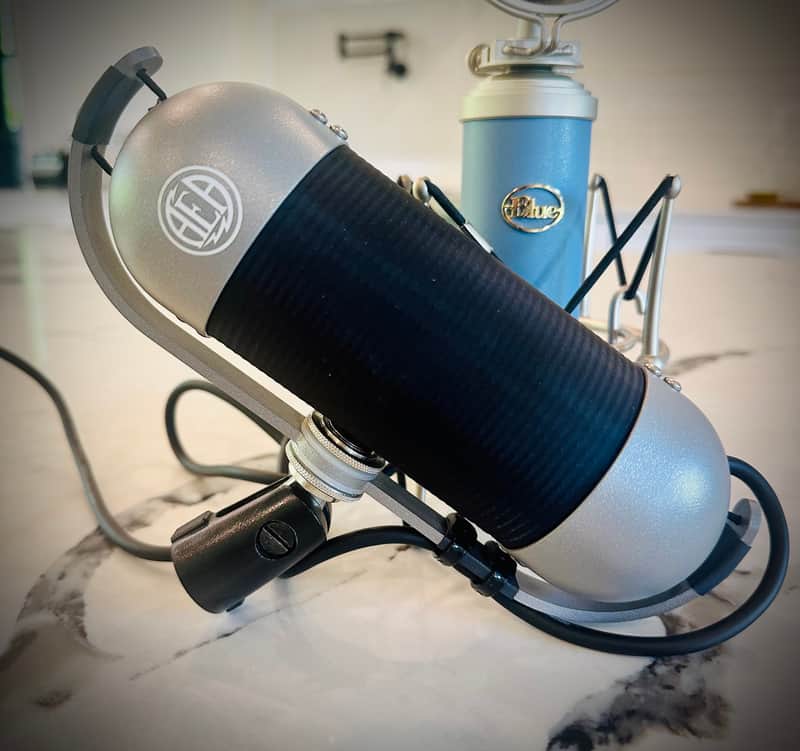

The AEA R92 is a passive, near-field ribbon microphone known for its dual sonic characteristics, high SPL handling, and suitability for close-miking applications, particularly guitar amplifiers and drums. It offers a classic ribbon tone with reduced proximity effect compared to traditional designs. Key Features & SpecificationsThe AEA R92 is handmade in the USA and designed with a focus on versatility in close-up recording scenarios. Specification DetailsMicrophone TypePassive Ribbon, Figure-8 polar pattern.Frequency Response20 Hz to 20 kHz (+/- 3 dB).Maximum SPL165 dB (1% THD > 1 kHz), making it suitable for loud sources.Output Impedance270 Ohms nominal.Diaphragm1.8 µm thin aluminum ribbon (4.7 x 59.7 mm).PoweringNot required or recommended (passive design).ConnectivityCaptive 10' (3m) output cable with XLR-3M connector.MountingIntegrated U-shaped yoke shock mount with 360-degree swivel.Dual Tonal Character A distinctive feature of the R92 is its different sonic signatures on the front and rear sides, essentially offering two microphones in one.

• Front Lobe: Offers a "crisp" and brighter sound with clear high-end detail.
• Rear Lobe: Provides a "smooth" and darker, more classic ribbon high-end roll-off, ideal for taming harsh transients from sources like trumpets or strings.
