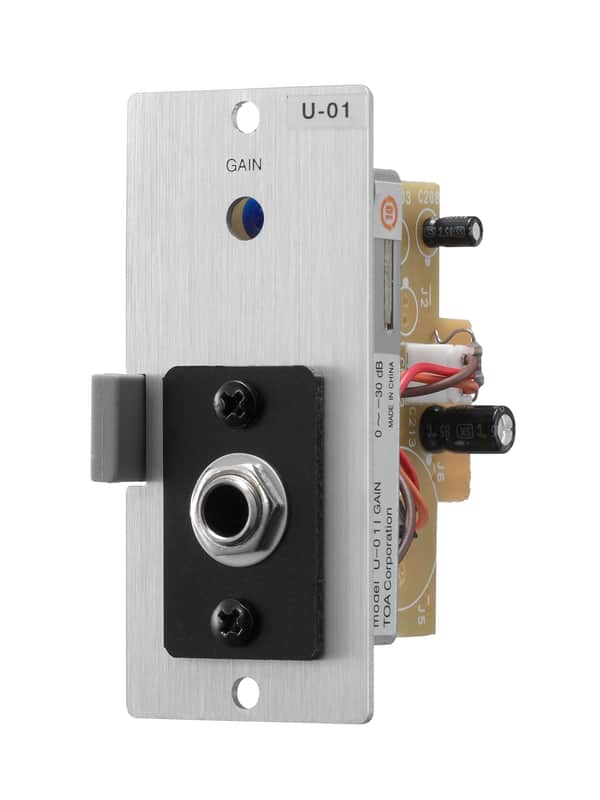

TOA U01P Unbalanced Line Input Module for 900 Series Amplifier, 1/4 Female
This seller has not set a shipping cost for Luxembourg. Please contact them to ask about shipping.
Price€78.05
Incl. VAT
+ Shipping
Only 1 left
Grab it before it's gone
Listed:over a month ago
Views:15
Watchers:0
Verona, WI, United States
14-Day Return Policy
Enjoy peace of mind with your new gear
Our users rate Reverb
The TOA U01P is a aux-preamp module for the 900 series with female 1/4". For unbalanced, line level equipment such as AM/FM tuners, tape decks, and CD players.
Specifications:- Controls/Functions: Gain Control
- Performance Input: 220kΩ
- Gain (Adjustable): -30 ~ 0dB
- Maximum Input: +18dB
- Signal to Noise (S/N): 90dBu
- Power Source: 24VDC (supplied from the main frame)
- Current Consumption: 4mA
- Input Sensitivity: -20dB* (rated output: -20dB*), adjustable: -20 to +10dB*
- Input Impedance: 220kΩ, unbalanced
- Frequency Response: 20Hz - 20kHz ± 1.0dB
- Distortion: 0.05% or less (1kHz, output: 0dB*)
- Noise Level: -106dB* (20Hz - 20kHz BPF)
- Connector: 6.3mm (1/4") Phone jack (3-Pin)
- Dimensions: 35 (W) × 78 (H) × 88 (D) mm (1.38 × 3.07" × 3.46")"
- Weight: Max. 75g (0.17lbs)
