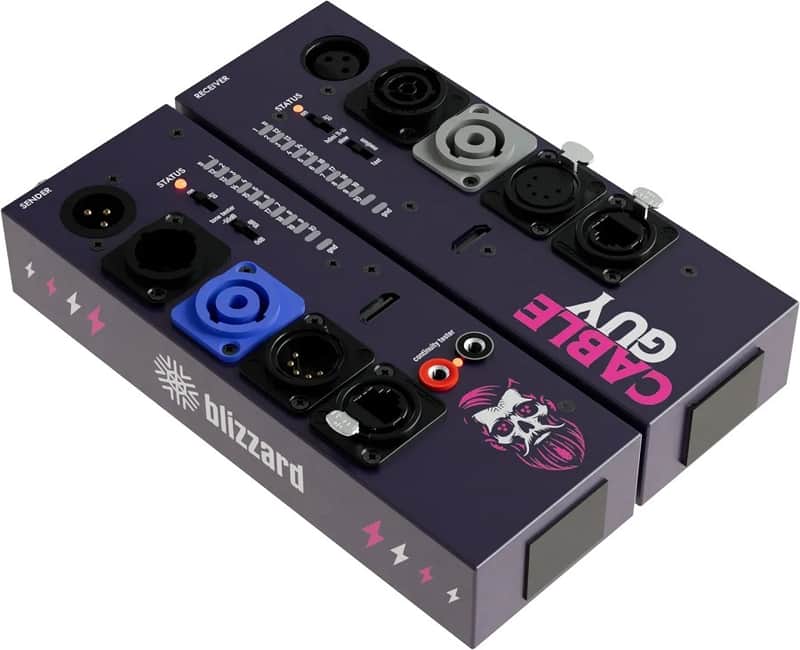

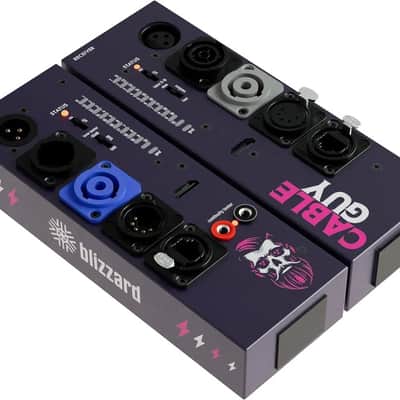

Blizzard CABLE-GUY Advanced cable tester capable of testing multiple types including 3/5-pin DMX, XLR, powerCON, True1, RJ45, RCA, BNC, 1/4' TRS, 3.5mm, HDMI, and single Banana.

Your Ultimate Cable Testing Companion

The Cable Guy™ is a cutting-edge, professional cable testing tool that no lighting designer or stage technician should be without. Designed for simplicity and versatility, it tests a wide range of common cable types, including 3-pin XLR, 5-pin XLR, powerCON®, powerCON® TRUE1, HDMI, RJ45, and more. The two-piece sender and receiver can be separated, enabling efficient testing of through-wall wired connections.

Multi-Functional and Easy to Use

Operating the Cable Guy™ is effortless. Simply power on the sender and receiver, then plug the cable into each side. The device automatically cycles through all possible connections, displaying results via LED indicators. Matching LEDs on both sides confirm successful continuity, while mismatched or unlit LEDs signal an issue with the cable.

Blizzard Cable Guy Features

• Lossless transmission up to 3,000 meters
• Audio signal indicator
• Durable steel housing
• Sender and receiver units can be separated for through-wall wire testing

Blizzard Cable Guy Specifications

• Supported types:
  • 1/4 TRS
  • 1/8 TRS
  • 3-pin XLR
  • 5-pin XLR
  • BNC
  • HDMI
  • powerCON®
  • powerCON® TRUE1
  • RCA
  • RJ45 (EtherCON)
• Weight & Dimensions:
  • 5 x 7.5 x 1.3 inches (128 x 190 x 33mm)
  • 2.35 lbs (1.06 kg)
• Control:
  • Dual power switches & status LEDs
  • Tone tester switch: -50dB, 10dB, 0dB
  • HDMI switch: slow, medium, fast
  • 1-10 (x2) wire tracker + status LEDs + gnd
• Power + Current: Requires 2x 9V batteries (batteries not Included)
• Warranty + Certifications: Limited lifetime warranty
