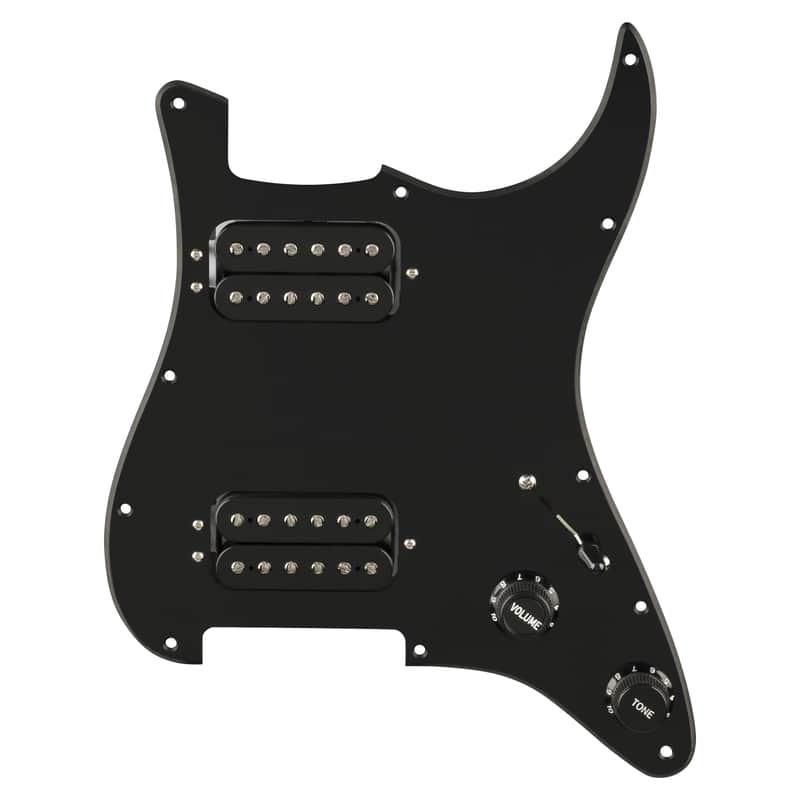

Fender Pre-Wired Strat Pickguard, Quadra Tap HH - Black

Transform the voice of your Stratocaster with a genuine Fender Pre-Wired Pickguard Assembly. Crafted with premium components in the same factory as our iconic guitars, this complete drop-in solution delivers authentic Fender tone with hassle-free installation. No complicated wiring required - just remove your existing pickguard, connect two wires, mount the new assembly, and unlock a whole new voice for your guitar in minutes. It's the fastest way to upgrade your Strat with our time-tested electronics and craftsmanship.

Equipped with the Quadra Tap 1 and 2 Humbuckers, this loaded pickguard puts ten distinct voices at your fingertips - both hot and vintage voicings in either humbucking or split-coil modes. The volume knob’s S-1 switch selects between each voicing while the 5-way selector allows each pickup to be split between humbucker and single coil modes. In addition, a treble bleed circuit maintains your highs at any volume.

Powered by an alnico 2 bar magnet, the passive Quadra Tap Humbucker is a tone-shaping powerhouse. Experience four distinct voices that span from vintage-inspired warmth to scorching hot output in both single coil and humbucker settings.

Features

• Quadra Tap 2 Humbucker in the bridge position
• Quadra Tap 1 Humbucker in the neck position
• S-1 switch on volume knob selects between the vintage and modern voicings of both pickups
• 5-way selector allows each pickup to be split between humbucker and single coil mode
• All passive design that is noise free
• The fastest way to upgrade your Strat with our time-tested electronics and craftsmanship
• Series : Quadra Tap
• Orientation : Right-Hand
• Color : Black

Hardware

• Pickguard : 1-Ply Black
• Pickguard Ply : 1-Ply
• Pickup Covers : Black
• Control Knobs : Black Soft-Touch Knobs
• Switch Tip : Black
• Hardware Finish : Chrome
• Mounting Type : 11-Hole Modern

Electronics

• Bridge Pickup : Quadra Tap 2 Humbucker
• Neck Pickup : Quadra Tap 1 Humbucker
• Pickup Configuration : HH
• Lead Wire : Vinyl-covered
• Magnet Type : Alnico 2
• Magnet Wire : Enamel-coated
• Shielded : Yes
• Bobbin Material : Plastic
• Controls : Master Volume with S-1 Switch, Master Tone
• Switching : 5-Position Blade: 1. Bridge Full Humbucker, Position 2. Bridge Inner Coil, Position 3. Bridge Inner and Neck Outer Coils in Parallel, Position 4. Neck Outer Coil, Position 5. Neck Full Humbucker
• Power Requirements : Passive
• Potentiometers : Master Volume: S-1 500K, Master Tone: 500K

Measurements

• Dimensions : 2.25x10.75x13.50 IN
