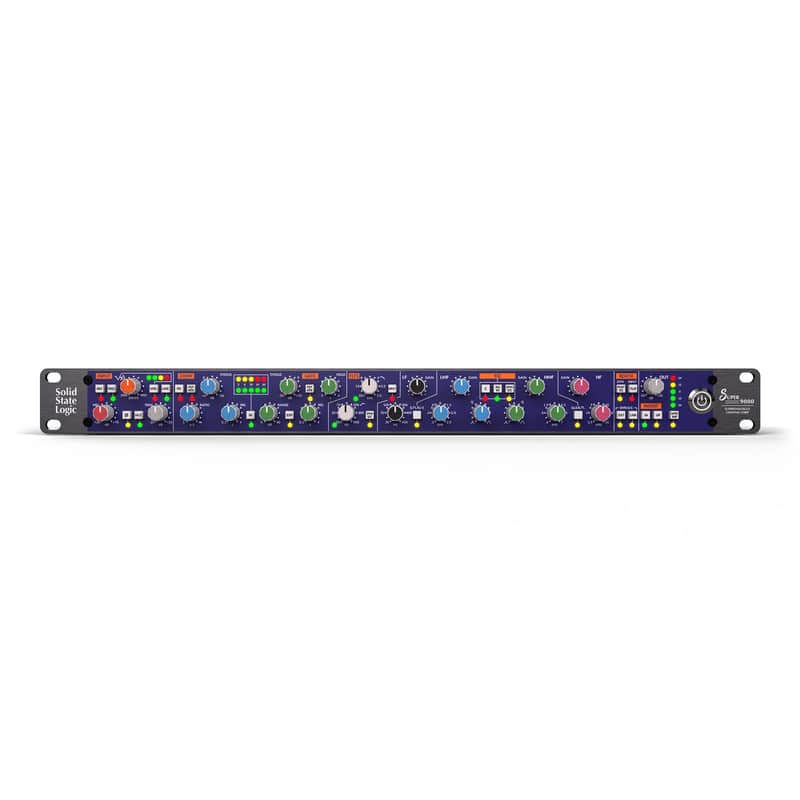

Solid State Logic Super 9000 SuperAnalogue Channel Strip

Solid State Logic Super 9000 SuperAnalogue Channel Strip - Modern SSL in 1RU

The Solid State Logic Super 9000 is a 1RU all-analogue channel strip that distills the legendary SL 9000 J and Duality console sound into a compact, studio-essential unit. Featuring **dual SuperAnalogue™ and VHD™ mic preamps**, **9000/Duality dynamics**, **switchable 292 (Pink) and 242 (Black) EQ circuits**, and **flexible routing**, it delivers ultra-low distortion, massive headroom, and the iconic SSL punch that defined rock, pop, hip-hop, and R&B. With no electrolytic capacitors in the audio path, ruler-flat response (±0.1 dB, 20 Hz–20 kHz), and extensive sidechain control, Super 9000 brings world-class console performance to any rack.

Dual Mic Preamps: SuperAnalogue™ or VHD™

Choose between the pristine, high-headroom **SuperAnalogue™ preamp** (9000 J) or the **Variable Harmonic Drive (VHD)** circuit (Duality) for 2nd/3rd-order harmonics—valve warmth or transistor edge. Two impedance settings (1.3 kΩ / 11 kΩ), **Input Flip** for line-level saturation, +48V, pad, and polarity reverse ensure total tonal control from tracking to mix.

Quintessential SSL Dynamics & EQ

The **9000/Duality dynamics** section uses a THAT 2181A VCA compressor with **Peak/Hard Knee**, **Fast Attack**, and **Soft Knee** modes, plus a classic **Gate/Expander** with **Hold** and **hysteresis**. Switch between **292 G-Series (Pink)** and **242 E-Series (Black)** 4-band EQs—variable-Q or constant-Q, with **E Bell/G÷3** and **Gx3/E Bell** for extreme frequency targeting. **HPF (18 dB/oct)** and **LPF (12 dB/oct)** can bypass or route to sidechain.

Key Features of the SSL Super 9000

• Dual mic preamps: SuperAnalogue™ (9000) or VHD™ (Duality)
• 2 mic impedances: 1.3 kΩ / 11 kΩ, +48V, pad, polarity
• Input Flip: route line input to mic pre for DAW stem saturation
• 9000/Duality dynamics: THAT 2181A VCA compressor + Gate/Expander
• 4-band EQ: switchable 292 (Pink) or 242 (Black) circuits
• HPF (18 dB/oct) + LPF (12 dB/oct), sidechain routing
• Balanced insert point, repositionable pre/post EQ
• External sidechain input + dynamics link for stereo pairs
• Line Output Trim, input/output metering
• SuperAnalogue™ path: no electrolytic caps, ultra-low noise/distortion

Technical Specifications

• Type: 1RU analogue channel strip
• Mic Pre Gain: Up to +72 dB (SuperAnalogue™), VHD variable
• Frequency Response: 20 Hz–20 kHz ±0.1 dB
• THD+N: <0.005% (typical)
• Noise: EIN
• Dynamic Range: >120 dB
• Inputs: XLR mic, XLR/TRS line, external sidechain
• Outputs: XLR main, insert send/return
• Power: Internal PSU, 100–240V AC
• Dimensions: 19" x 1.75" x 12" (483 x 44 x 305 mm)
• Weight: ~10 lbs (4.5 kg)
