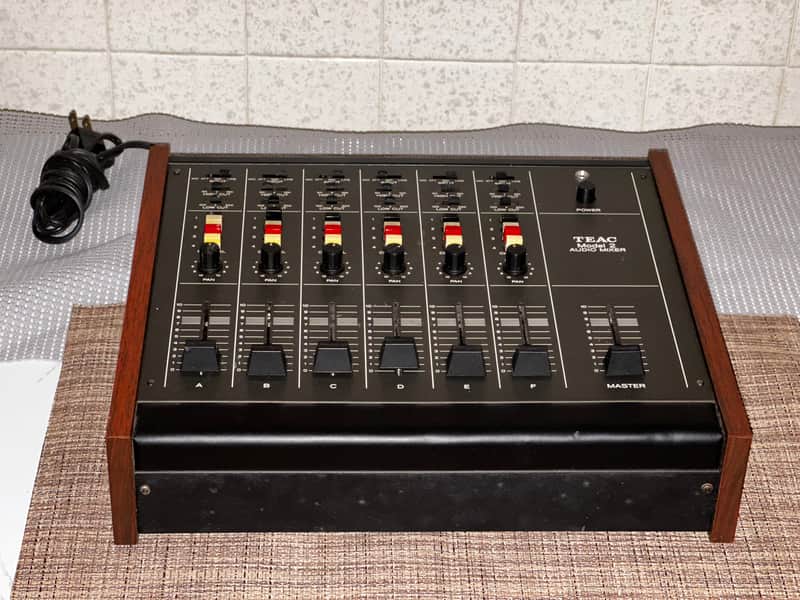

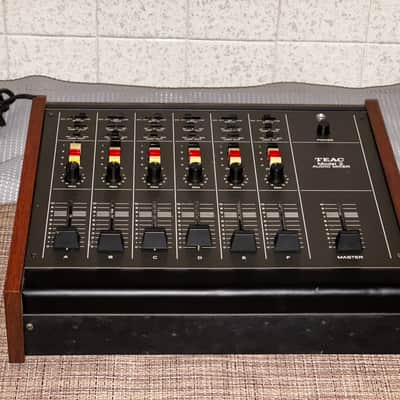

Teac Model 2 Analog Mixer

Excellent vintage condition Teac Model 2 Analog Mixer.Pro cleaned faders,switches ect.Fully tested.

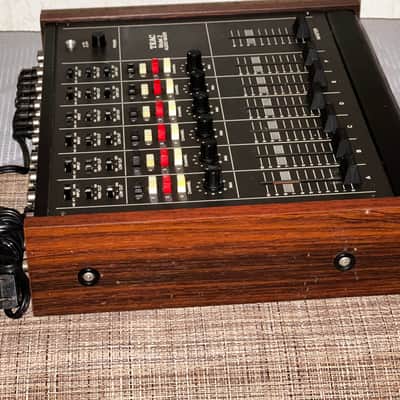

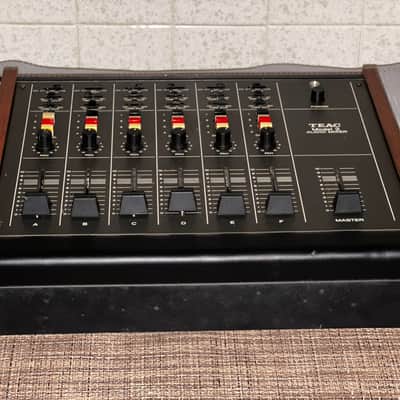

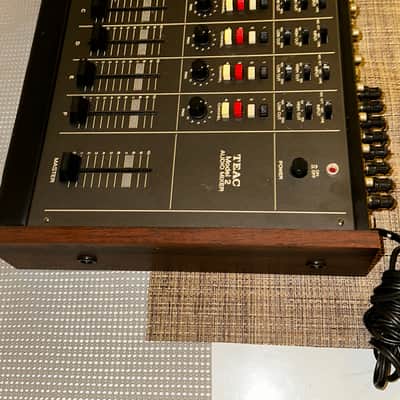

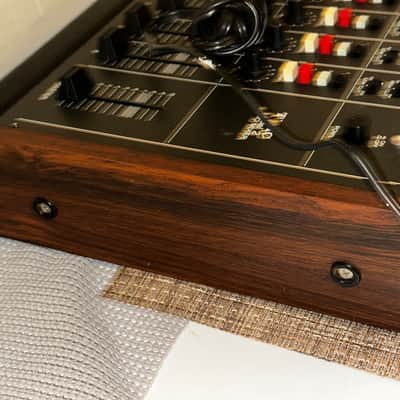

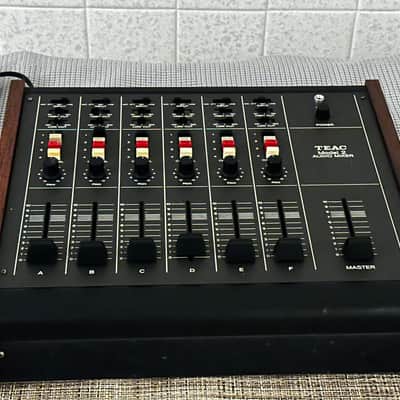

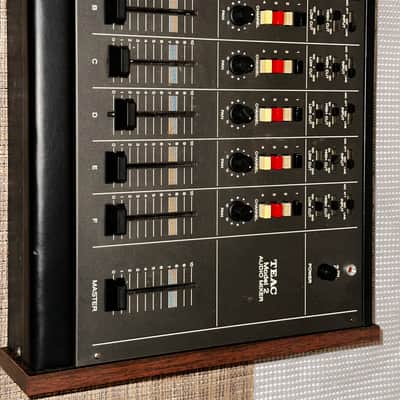

Great Analog Mojo. Ready to go to work in your studio. See all the pictures.

6 input / 4 output mixer designed
for true multi-channel recording.

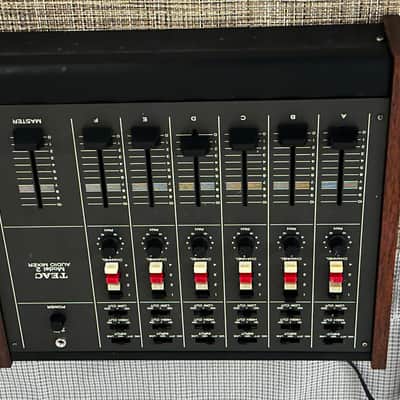

Each channel has seperate input selectors, tone control,
channel assign selectors with pan, and input faders.
There is also a MASTER output fader control.
Input selector switch for mic/line or mic att,
which activates a 20dB attenuator pad located,
before the mic preamp stage.

Channel assignments buttons color coded
for the 4 different output busses.
Any signal from a input channel can be assigned
to any, or all of the output channels.
When more than one channel is assigned,
Pan control is engaged = the ability to move the sound
from extreme left or right
in the sound spectrum or anywhere between.

Tone-controls:
Variable treble control +/-12dB.
Variable bass control +/-12dB.
Crosstalk: Greater then 50dB.
Overall distortion(input to output)=
0.1% THD maximum at nominal -10dB output.
Fader attenuation: Greater then 60dB.
Mic impedance:150~10K.
Input impedance:50K or higher.
Input level: -10dB (0.3V)
Line output/Aux.Output:
Load impedance:10K or higher unbalanced.
Output level: -10dB (0.3volt)
Signal to noise ratio:
One input= greater than 62dB,WTD.
6 inputs = greater than 55dB,WTD.
Frequency response: 30Hz~20KHz,+/-2dB.
Cue output:
Load impedance: Greater than 50K.
Level: -20dB (0.1V) with nominal input.
Buss input:
Input impedance: 15K.
Nominal level: -10dB(0.3V)
Accessory Send/Receive:
Send load impedance:Greater than 10K.
Nominal send level: -10dB(0.3V)
Receive impedance: 15K.
Nominal receive level: -10dB(0.3V)

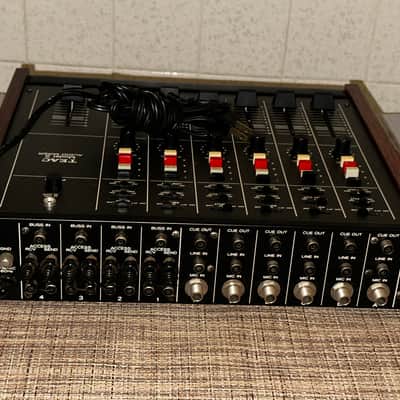

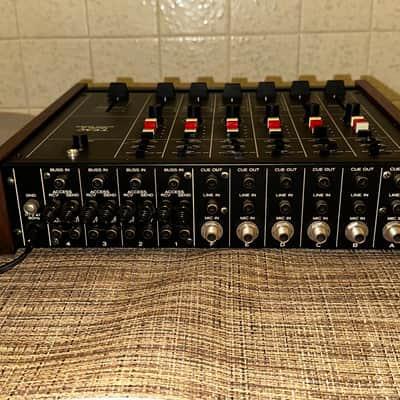

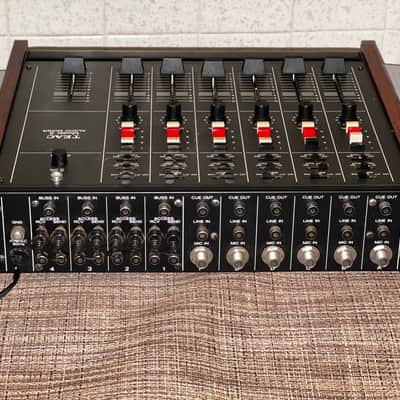

MIC IN = 1/4 Phone plug.
LINE IN = RCA. Normally you would patch the output
of your reel to reel here (line 1-4)
and the master recorder to (line 5-6),
but you have more options because the meterbridge.
LINE OUT = RCA.
ACCESSORY Send/Receive = a patch point for
additional signal processing like different external
EQ unit, Echo,Reverb, Noise reduction etc.
Access with jumpers included.
AUX OUT = Additional line output in paralell
with the main line output.
LINE OUT = (4)Program buss out.
CUE OUT = A foldback after the the mic preamp stage
unaffected by the input fader.

Power Requirements: 117V A.C, 60hz, 5W
Weight: 13.2 lbs (mixer with no meterbridge attached)
Size: 13-1/2 deep. 13-3/8 Wide. 4 Tall.
Made 1976.
