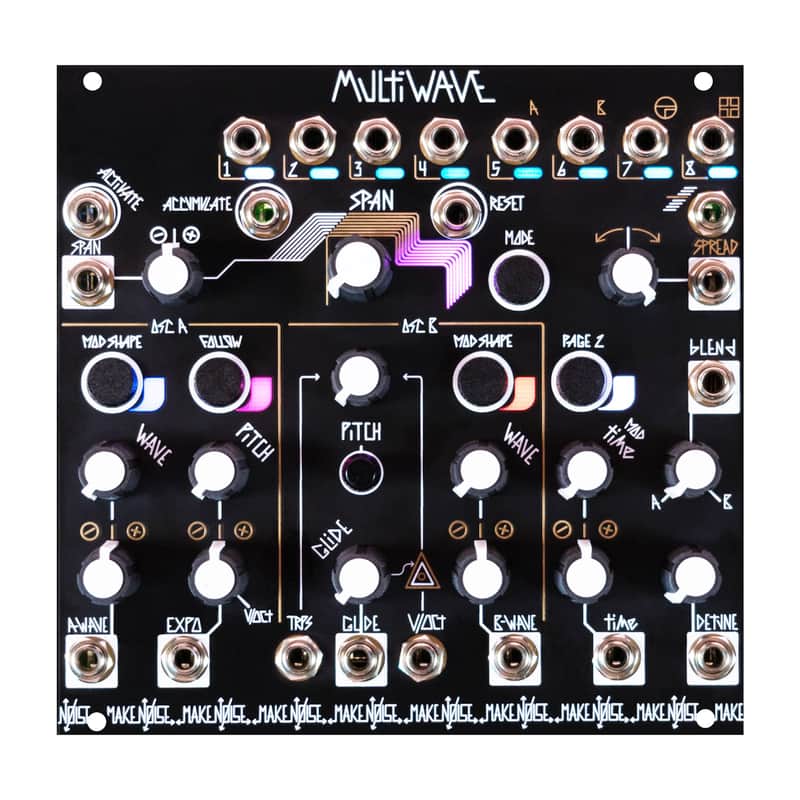

MAKE NOISE MULTIWAVE : BRAND NEW : [DETROIT MODULAR]

MultiWAVE is an 8-channel dual wavetable oscillator for the New Universal Synthesizer System or any Eurorack modular synthesizer. It uses a single set of controls to generate audio waveforms at eight independent channel outputs.

Each of the eight MultiWAVE channels contains two independent wavetable oscillators, Osc A and Osc B, each with variable frequency, modulation, and wavetable position.

MultiWAVE includes an output header for creating pre-patched connections to the audio signal inputs of two QXG modules. When grouped up with PoliMATHS it creates the 8-channel hybrid polysynth core of the New Universal Synthesizer System.

MultiWAVE

• 8-channel dual wavetable oscillator with a single set of controls

• Sequence A and B oscillators (per channel) independently or together via 4 follow modes

• Generate polyphonic activations from monophonic sequences using Modulation Dissemination, Span modes, Spread, and Accumulate.

• Variable timbre per channel via Spread and Modulation Dissemination

• Independent v/o inputs per oscillator and global transpose v/o input

• Built-in polyphonic quantizer

• Modulatable polyphonic detune, and glide.

• Works as a Harmonic Oscillator with detune turned fully clock wise

• Modulate wavetables using built-in MultiMod LFO

• Independent modulation depth and shape per oscillator.

• Modulation Time and depth variable per voice via spread and modulation dissemination

• Ships with custom Make Noise wavetables developed from Make Noise modules

• Smooth interpolation between waveforms

• Compatible with Waveedit format wavetables

• Each wavetable contains 64 waves

• Capable of storing 8 banks of 8 wavetables.

• Activate channels in multiple voltage-controllable Span modes

• In arbitrary order using Channel Index

• Sequentially with variable channel count step in Round

• Via variable per channel clock divisions using Parallel

• Oscillator Core of the New Universal Synthesizer System

• Designed for seamless use with PoliMATHS, QXG, and future N.U.S.S. modules

Width: 26 hp

Max Depth (incl. power cable):  43mm

Power:

mA@ +12V 250mA

mA @ -12V 5mA
