GX-700 GUITAR EFFECTS PROCESSOR

AD CONVERSION:

22 bit AF Method

DA CONVERSION:

18 bit 16 times Oversampling Modulation

SAMPLING FREQUENCY:

44.1 kHz

PROGRAM MEMORIES:

200: 100 (User) + 100 (Preset)

NOMINAL INPUT LEVEL:

INPUT: – 10 dBm

RETURN: – 10 dBm

INPUT IMPEDANCE:

INPUT: 1 MW

RETURN: 450 kW

NOMINAL OUTPUT LEVEL:

OUTPUT: – 10 dBm to + 4 dBm

SEND: – 10 dBm

OUTPUT IMPEDANCE:

OUTPUT: 3 kW or less

SEND: 2 kW

HEADPHONES OUTPUT:

1.2 mW (33 W Load)

DYNAMIC RANGE:

100 dB or greater (IHF – A)

CONTROLS

FRONT:

INPUT LEVEL Knob

NUMBER / VALUE Knob

POWER Switch

EFFECT SELECT Buttons – COMP, WHA, OD/DIST, PREAMP, LOOP, EQ, SP.SIM, NS, MOD,

DELAY, CHORUS, TREM/PAN, REVERB, LEVEL CHAIN

PLAY Button

WRITE Button

PARAMETER Button L / R

BYPASS Button

TUNER/UTILITY Button

REAR: (Controls)

OUTPUT LEVEL Knob

DISPLAY:

16 Characters, 2 lines (backlit LCD)

INDICATOR:

PEAK Indicator

CONNECTORS

FRONT:

INPUT Jack

HEADPHONES Jack

REAR:

INPUT Jack

OUTPUT L (MONO) / R Jack

SEND Jack

RETURN Jack

Expression Pedal Jack

CONTROL 1/2 Jack

MIDI Connectors (IN, OUT, THRU)

AC ADAPTOR Jack

POWER SUPPLY:

AC 14V; Supply AC Adaptor (BOSS BRC-120, 230, 240)

CURRENT DRAW:

800 mA

DIMENSIONS:

482 (W) x 197 (D) x 44 (H) mm

19 (W) x 7 – 3 / 4 (D) x 1 – 3 / 4 (H) inches

(EIA – 1U rack mount type)

WEIGHT:

2.0kg / 4lbs 7oz (excluding AC Adaptor)

ACCESSORIES:

Owners Manual

AC Adaptor: BOSS BRC-120, 230, 240

OPTIONS:

MIDI Foot Controller: FC-200 (Roland), FC-50

Foot Switch: FS-5U, FS-5L

Expression Pedal: EV-5 (Roland), FV-300L + PCS-33 (Roland)

*0dbm = 0.775 Vrms

[Condition]

Used(Very Good) / perfect working condition

The internal battery was changed to the new. and this was initialized.

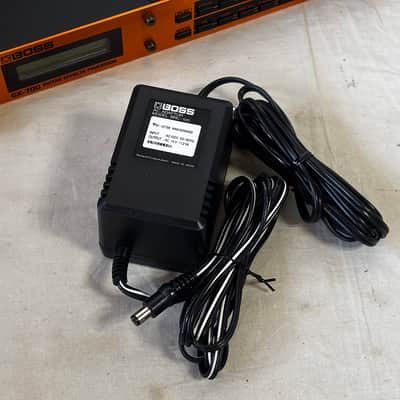

with AC adaptor(100V)

Attention!!

This item come with 100v 50/60hz AC Adaptor.

you may need a step down transformer depending on your country or other ac adaptor.

International Buyers - Please Note:

Import duties, taxes and charges are not included in the item price or shipping charges.

These charges are the buyer's responsibility.

Please check with your country's customs office to determine what these additional costs will be prior to bidding/buying.
