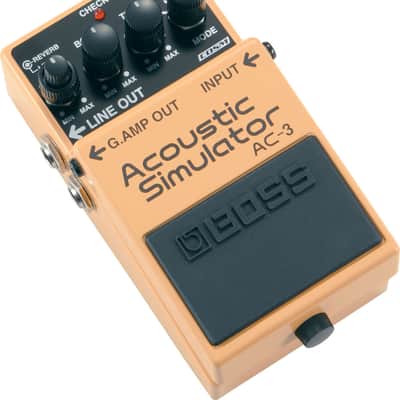

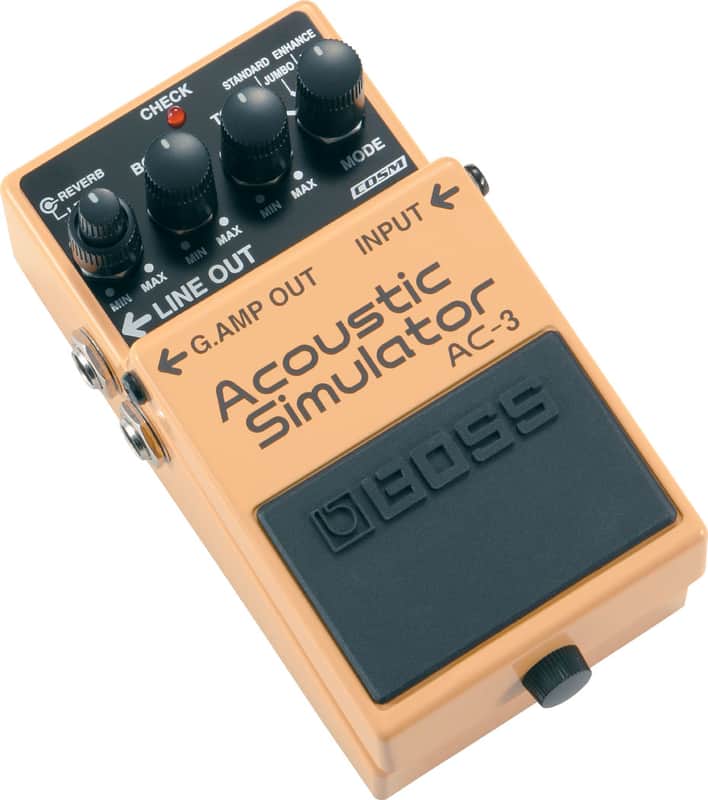

BOSS is pleased to offer another “Authentic BOSS” Compact Pedal; the AC-3. How many times have you been onstage or in the studio with your electric guitar, and wished that you’d brought an acoustic along? For musicians who travel light, hauling an extra guitar to the gig isn’t always the most attractive option. BOSS AC-3 to the rescue! This new-generation compact pedal employs COSM modeling technology to transform any electric guitar into a variety of beautiful acoustic guitars.

BOSS’s COSM Acoustic-Modeling technology is beautifully showcased in this small but powerful pedal, which simulates an acoustic guitar much more precisely and realistically than previous technology allowed. Derived from BOSS top-of-the-line AD-8, the AC-3 simulates the sound of an acoustic guitar with incredible precision. Four simulation modes are provided: Standard, Jumbo, Enhanced, and Piezo-equipped; the latter supplies that famous “cut through the mix” direct piezo sound. Previous compact acoustic-guitar modeling-pedals were promising, but now the bar has been raised with AC-3.

Specifications:

Audio

• Nominal Input Level: –20 dBu
• Input Impedance: 1 MΩ
• Nominal Output Level: –20 dBu
• Output Impedance: 1 kΩ
• Recommended Load Impedance: 10 kΩ or greater

Bypass

• Buffered bypass

Controls

• MODE knob
• TOP knob
• BODY knob
• REVERB/LEVEL knob
• Pedal switch

Indicators

• CHECK indicator (also functions as battery status indicator)

Connectors

• INPUT: 1/4"
• LINE OUT: 1/4"
• G.AMP OUT (Guitar Amp Out): 1/4"
• DC IN jack

Power

• Alkaline 9V battery (6LR61)
• AC adaptor (PSA series, sold separately)
• Current Draw: 70 mA

Battery Life (Approx.)

• Alkaline: ~3.5 hours
  (Actual time varies with usage conditions.)

Included Accessories

• Safety/notes leaflet
• Alkaline 9V battery (6LR61)

Optional Accessories

• PSA-series AC adaptor

Size & Weight

• Width: 73 mm (2-7/8")
• Depth: 129 mm (5-1/8")
• Height: 59 mm (2-3/8")
• Weight: 425 g (15 oz, including battery)
