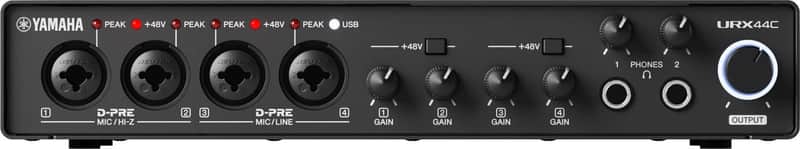

Designed to provide a seamless workflow for musicians and bands, the Yamaha URX44C is a 6x4 USB-C audio interface featuring a four XLR-1/4" mic/line combo inputs, DSP-powered mixing and effects, and a plenty of connectivity. With the ability to use Hi-Z signals on inputs 1 and 2 for passive instruments like guitar and bass, this interface can handle almost any application.Each mic/line input features a Class-A D-PRE mic preamp and supports +48V phantom power (for active microphones), activated via front-panel buttons and selectable on input groups 1/2 and 3/4. Latency-free monitoring with DSP FX lets you engage in deep mixes for your live stream or audio recording without having to reach for DAW plug-ins. More control, along with DSP selection, is possible via the intuitive dspMixFX control app. The URX44C offers high-quality sound with 32-bit / 192 kHz AD/DA conversion and ultrafast USB 3.0 connectivity. Along with front-panel combo jacks, the interface sports two 1/4" headphone outputs with individual level control, two stereo pairs of 1/4" line outputs, two 1/4" line inputs, a stereo pair 1/4" main output, DIN 5-pin MIDI I/O, and a USB-C port for host connections and bus power. A switch allows you to select which power source you wish to use: the USB-C port or a separate 12 VDC power adapter input. The URX44C includes a USB 3.0–compatible USB-C to USB-A cable.

Product Features

• USB Type-C Audio/MIDI Interface with 32-bit / 192 kHz Support
• MIDI Input and Output
• 4 D-PRE Mic Preamps with +48V Phantom Power
• 4 Mic/Line Combo Inputs: XLR / 6.3mm jack - Hi-Z Switch on Input 2 for Electric Guitar
• 2 TRS Line Outputs, 2 Headphone Output
• Input Mixing Channels: 2 Mono + 3 Stereo Loopback + 1 FX
• Busses: 1 MIX (Stereo) + 1 FX + 1 STEREO
• Three-Channel Loopback Enables Flexible Streaming and Communication Setups
• Effects Powered by the Internal DSP and Basic FX Suite Give Your Sound a Professional Finish
• Latency-Free DSP Monitoring with FX for Enhanced Performance
• Includes Cubase AI for PC, Cubasis LE DAW App for iPhone/iPad, Basic FX Suite, Steinberg Plus, USB Cable and External 12V AC Adaptor (Yamaha PA-150B)

Attributes

• Color: Black

Technical Specifications

• Features: USB
• Dimensions: 1.9" H x 9.9" W 6.3" D
• Weight: 3.3lbs
• Inputs: 4 x XLR-1/4" Combo, 2 x 1/4" TRS
• Outputs: 6 x 1/4" TRS
• MIDI: In, Out
• USB: 1 x USB-C
• Software: Cubase AI, Steinberg Plus
• Power Supply: USB-C Bus Power or 12VDC
• Computer Connectivity: USB
• # of Preamps: 2
• Simultaneous I/O: 6x4
• A/D Resolution: 32-bit/192kHz
• Mac OS Requirements: macOS 10.12 to 10.14
• PC OS Requirements: Windows 7 to 10
