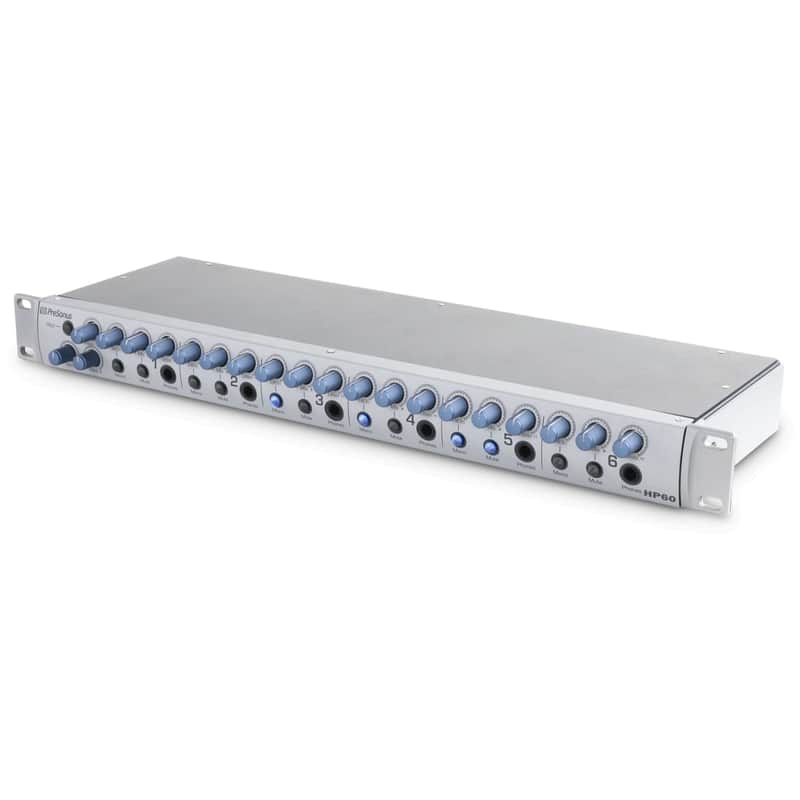

Get A Field-Tested, Easy-To-Use Solution To A Host Of Common Headphone-Monitoring Issues - The PreSonus HP60 Headphone Mixing System

Turn my headphones up! More, I can't hear myself!. Turn down that click! If musicians can't clearly hear what they want, their performance and attitude will suffer. With the PreSonus® HP60 headphone distribution system, you can easily resolve these problems and provide headphone mixes the musicians will love. That's because the HP60 is more than a half-dozen headphone amps; it's a field-tested, easy-to-use solution to a host of common headphone-monitoring issues.

They'll Love Your Headphone Mixes

Each of the HP60's six headphone amps has its own level control and is loud enough to drive the alligators out of the Louisiana swamps. And the HP60 lets you customize each mix. In addition to the two pairs of main stereo inputs, you get an external stereo input with level control, mono, and mute for each headphone channel. So you can send each musician a feed of just their instrument or voice and can control the level separately for each.

Controlled Click

The HP60 features two sets of line-level, stereo inputs that are routed to all six headphones and a Mix control that sets relative levels for each headphone output. So you can feed the main control-room mix to channel A, feed the click signal to channel B, and use the Mix controls to individually raise or lower the click relative to the main mix for each musician.

Take Command

With the HP60, when you talk, everyone listens. Hit the Talk button and use the talkback-mic input and your favorite dynamic mic to tell them what to do. You can even use a footswitch to control the talkback hands-free. Need more than six headphones? Connect two HP60s for a 12-headphone system or connect the HP60 to a PreSonus HP4 to feed 10 pairs of headphones.

So take command of your headphone system with the problem solver: the PreSonus HP60. Hear it now at your PreSonus dealer.

• 6 screaming-loud (150 mW/channel) headphone outputs (front panel)
• 6 unbalanced stereo ¼” line outputs (1 per channel); carries a copy of the channel mix
• 6 unbalanced stereo ¼” external analog line inputs (1 per channel) for “more me,” with trim controls
• 4 balanced ¼” analog line inputs (L/R Mix input pairs A and B)
• 1 balanced XLR Talkback input for external dynamic microphone
• 1 ¼” footswitch jack for hands-free Talkback operation
• External input level
• Headphone level control for each headphone output
• Mix A/B control (blends signals from input pairs A and B)
• Mono switch for external input
• Mute switch (mutes input pairs A and B)
• Input A level
• Input B level
• Talk button (momentary switch)
• Talkback-mic level
• 1U 19” rack-mountable, rugged steel chassis
• Internal power supply with standard IEC connector

SPECIFICATIONS

Inputs

• Inputs A and B Connector Type: (2 ea.) ¼” TRS balanced
• External Input Connector Type: ¼” TRS stereo unbalanced
• Input Impedance: 10 kΩ

Headphone Outputs

• Connector type:: ¼” TRS stereo unbalanced
• Max Output Power: 150 mW/Ch.
• Frequency Response: 20 Hz - 20 kHz, ±0.5 dB, 60Ω load
• Headphone Impedance Working Range: 32Ω - 600Ω

Power

• Internal supply, standard IEC connector: 115 or 230 VAC

Physical

• Dimensions: 1/3U rack-mount (with standard rack tray, not included)
• Height: 1.75” (44.45 mm)
• Depth: 5.5” (139.7 mm)
• Width: 19” (482.6 mm)
• Weight: 8.0 lbs. (3.63 kg)

Manufacturer: PreSonus Audio
Model: HP60
SKU: I195730-GA999251115-2-WHXD
UPC: 673454000690
