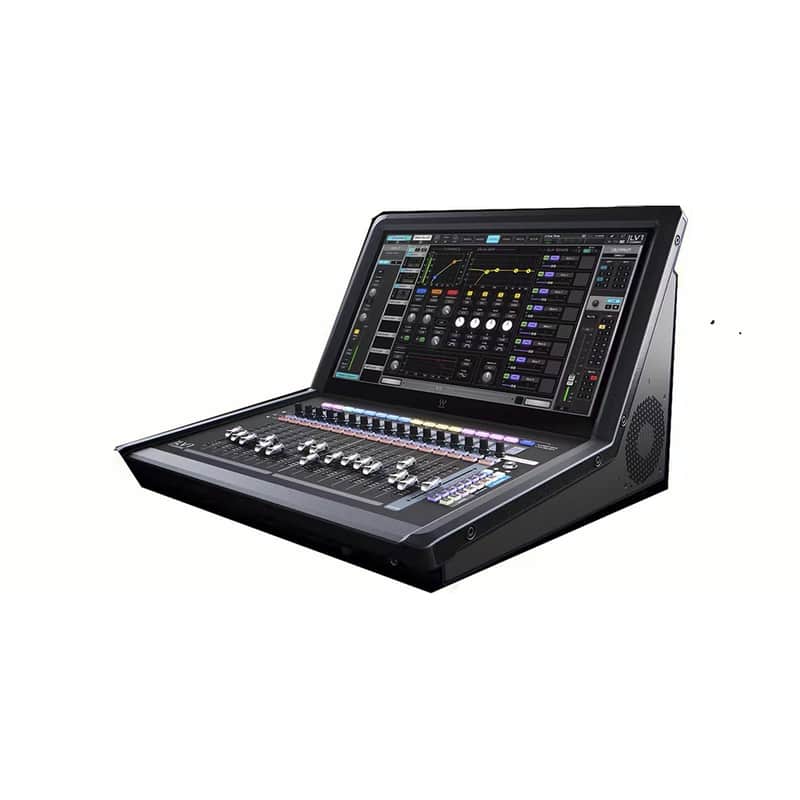

Waves eMotion LV1 Classic 64-channel Digital Mixer - Mint, Open Box

Maximum Power and Compact Form - The Waves eMotion LV1 Classic 64-channel Digital Mixer

eMotion LV1 Classic builds upon the industry-proven quality of the Waves LV1 mixer engine, and delivers its advantages in the preferred console workflow of live sound engineers worldwide. With a pristine-sounding mixer engine, quick-access UI, and the industry’s deepest integration of state-of-the-art processing, LV1 Classic packs more live mixing power into a compact console than ever before.

• 64 stereo channels / 44 stereo buses
• Double-precision 32-bit float mix engine (sample rate 44.1–96 kHz)
• 16 original-design Waves Signature Preamps
• Quick-access UI with 21.5” touch screen & 17 100mm motorized faders
• Onboard processing: 16 industry-favorite Waves processors included
• The industry’s most powerful processing upgrades
• Premium stagebox expansions with IONIC stageboxes
• Easy scalability: Easily add I/O and DSP, network multiple consoles
• Maximum portability: Compact & lightweight at just 38 lbs.

SPECIFICATIONS

• Sample Rate: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
• Bit Depth: Double Precision 32-bit floating point
• Latency: As low as 0.8 ms
• Processing: Intel-based DSP engine (Waves Extreme Server equivalent)
• Input Channels: 64 mono/stereo channels + talkback
• Buses: 44 mono/stereo mix buses
• Masters: Stereo/Center/Mono/Cue
• Groups: 8 mono/stereo Aux
• Aux: 24 mono/stereo (8 EFX / 16 Mon)
• Matrix: 8 mono/stereo
• Analog Inputs: 16 Waves Signature Preamps with mic/line inputs
• Analog Outputs: 12 Line outputs
• AES Input: 1 Stereo with SRC
• AES Outputs: 2 Stereo
• H/P Output: 1 Stereo H/P output with TRS and minijack connectors
• HDMI: HDMI for external second monitor
• USB Ports: 2x top / 6x rear
• SoundGrid Ports: 1 Gbit Ethernet switch with 2x etherCON / 2x RJ45 ports
• Lamp: 12V 2W max (pin 1, 2= NC, pin 3= GND, pin 4= +12V)
• Network/Wi-Fi: Secondary network port for internet/Wi-Fi router
• Redundant Power Supply: Dual power inlets
• Display: 21.5” multi-touch screen, up to 1000 Nit controllable brightness
• Faders: 16+1 100-mm motorized faders
• Multi-Function Controls: 16+1 precision encoders, mini-displays
• Customization: 16+2 user-assignable keys for personalization of control functions
• Inserts: 8-slot processing rack hosts 8 plugins per input channel + all mix channels
• Plugins Included: Live Vocal Pitch Correction, EQs, Dynamics, and more
• Optional Plugins: Over 150 live-compatible plugins available for purchase
• Scenes: 1000 scenes available with recall-safe filters
• External Control: Via MIDI, Waves mRecall mobile application

Manufacturer: Waves
Model: AIOCL
SKU: I811095-GA999251115-3-WHXB
