Bastl Instruments Citadel FX Wizard - Effect Modular Synthesizer

• Experimental multi-effects module
• All functions patchable
• 3 effect banks (delay, amplitude, pitch shifting)
• Effects: Delay, flanger, freezer, panner, crusher, slicer, pitcher, replayer, shifter
• Stereo audio processing 16 bit / 44kHz
• CV/gate pattern generator (editable via web app)
• Reverse mode
• Tempo generator (becomes a Clock divider with external clock)

• LFO with triangle & square waveform (sync / reset / free)
• MIDI In
• Clock In & Out
• Stereo inputs & outputs

• Headphone output
• USB-C on the back (updates, USB MIDI, loading samples)
• Reversible front panel & interchangeable OS

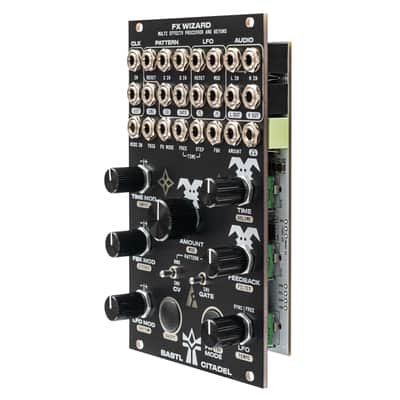

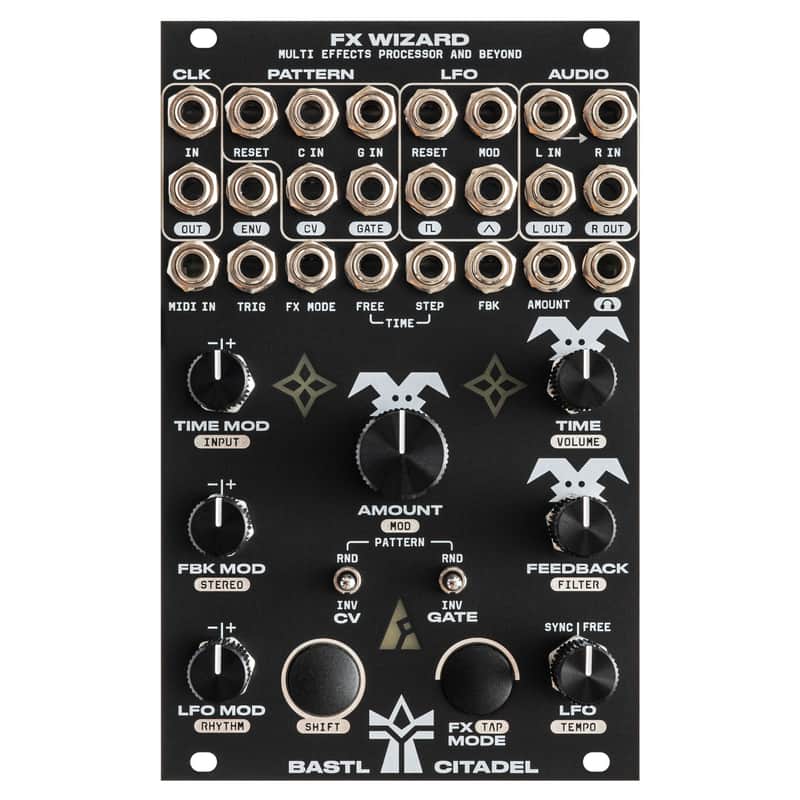

With the Citadel FX Wizard, Bastl Instruments presents the Eurorack version of the experimental, patchable effects unit . Instead of the thin pin connectors, the module features 32 inputs and outputs for audio, CV, gate, Clock, and MIDI. At first glance, it offers all the typical parameters you would expect from a full-fledged effects device.
The nine stereo effects are organized into three banks, divided thematically into delay, amplitude, and pitch shifting. The available algorithms are Delay, Flanger, Freezer, Panner, Crusher, Slicer, Pitcher, Replayer, and Shifter. Dedicated CV inputs are provided for the most important parameters: Time, Feedback, and Amount. Even the FX algorithm can be selected via control voltage. Internal modulation options include an envelope, a synchronizable LFO with two waveforms, and a CV/gate pattern generator, which can be edited via the free WebApp. You decide where the line between effect and glitch or sound design becomes blurred.

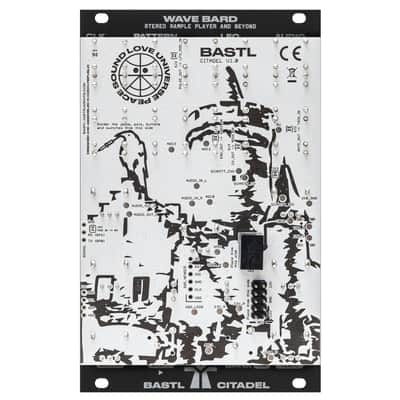

The module features a reversible front panel, with FX WIZARD on one side and on the other, and comes with a suitable tool for the process. Current and future firmware updates for Citadel/Kastle 2 can be loaded and tested via the USB port.
