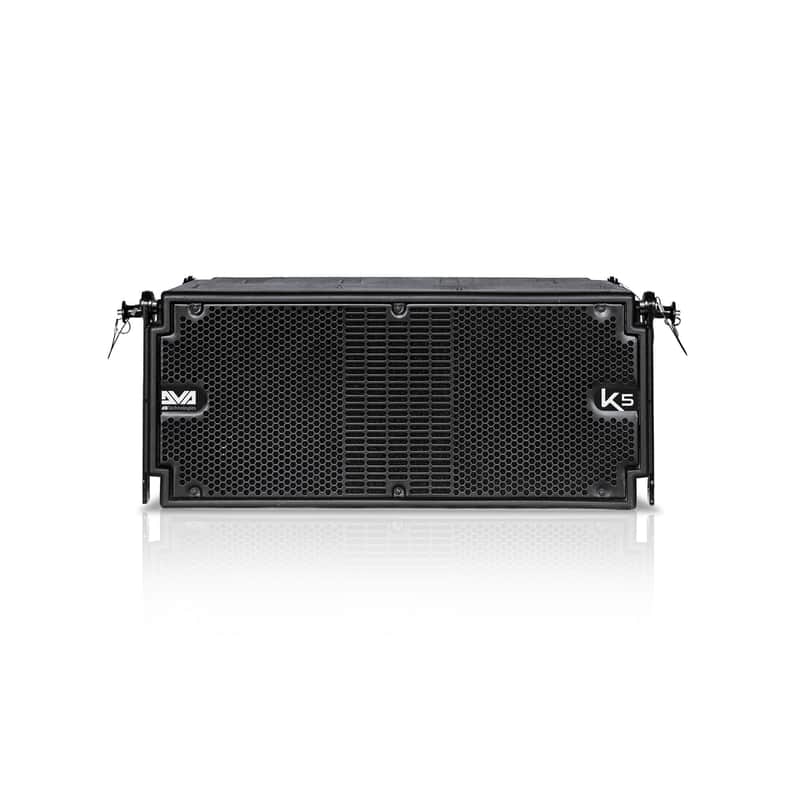

dBTechnologies DVA-K5 Line Array Speaker - Mint, Open Box

Get Unparalleled Sonic Versatility with the dBTechnologies DVA-K5 Line Array Speaker

The dBTechnologies’ active line array series DVA has set new standards in the sound reinforcement industry since its market launch in 2006.

• Advanced DSP With FIR& Filters Processing
• Fully Compatible With DVAT Flying And Groundstacking Accessories
• New Grille Design
• On Board Double Rotary Tuning System

Equipped with top-notch features and engineered for maximum versatility, DVA series brought the benefits of line array technology to a much wider range of users.

Now dBTechnologies upgrades the best of technology that determined the success of the whole series in the new 3 way active line array module DVA K5.

Featuring a Class D 500 W RMS Digipro® G3 digital amplifier, DVA K5 is capable to reach up to 129 dB SPL and aims to inherit the success of the earliest model of the series DVA T4, thanks to technological upgrades partially derived from the most recent model of the series DVA T8.

The new DVA line array module comprises 2 1,4” drivers, a 6” neodymium midrange and a 8” neodymium woofer.

Furthermore, an advanced DSP user interface allows an extremely precise system tuning: a double rotary encoder provides a separate tuning for LF correction (coupling) and MF/HF correction (high-angle midrange loss and air absorption compensation due to throw distance).

The module’s electronics and components are housed in a sturdy polypropylene box, reinforced with an internal anti-vibration metal structure which drastically reduces any resonance, allowing the cabinet to achieve an excellent acoustic response.

The unique design, the selected components and a state of the art amplifying technology come together to deliver an exceptional weight-performance ratio: each system weights 31,31 lbs (14,2 Kg). Moreover, DVA K5 comes with a freshly designed frontal grille and an integrated raincover.

SPECIFICATIONS

Acoustical Data

• Frequency Response [+/- 3dB]70 - 19,000 Hz
• Max SPL One Unit: 129 dB
• HF 2x1 "
• Voice Coil HF1.4 "
• MF 1x 6.5 "
• Type MF Neodymium
• Voice Coil MF2 "
• LF 1x8 "
• Voice Coil LF2.5 "
• Type LF Neodymium
• Directivity (HxV) 100x15° Single unit

Amplifier

• Amp Technology Digipro® G3
• Amp Class Class D
• RMS Power 500 W
• Peak Power 1000 W
• Cooling Convection
• Power Supply 500 W SMPS with Auto Range PSU

Processor

• Controller DSP 56 Bit
• AD/DA Converter 24 bit/48 KHz
• Limiter Dual Active Multiband RMS, Peak, Thermal
• Crossover Frequency MF-HF 1800 Hz
• Slope MF-HF 24 dB/Octave
• Crossover Frequencies LF-MF 340 Hz
• Slope LF-MF 24 dB/Octave

Input

• Signal Input 1x XLR Balanced
• Signal Output 1x XLR Balanced
• Power Socket 1x PowerCON In
• 1x PowerCON Out
• Controls 1 x Input Sensitivity Rotary Switch
• 1 x DSP Rotary Encoder (LF Correction)
• 1 x DSP Rotary Encoder (MF-HF Correction)

Mechanics

• Housing Polypropylene PP metal reinforced
• Rigging PointsIntegrated rigging hardware
• Width 580 mm (23.2 in)
• Height 240 mm (9.6 in)
• Depth 327 mm (13.08 in)
• Weight 14.2 kg (31.3 lbs)

Manufacturer: DB Technologies
Model: DVA K5
SKU: I452396-GA9992511-2-WHXD
EAN: 8058159115016
