• True to the original in design, manufacturing and performance
• Modeled after 1176LN, blackface, D and E revisions
• Ultra fast attack time -20 microseconds to 800 microseconds
• Class A line level output amplifier
• Custom built Putnam-designed output transformer
• Stereo interconnect operation
• Hand-built in USA; backed by 1-year limited warranty

Specs

Input Impedance

• 600 ohms, bridges-T control (floating)

Output Load Impedance

• 600 ohms, floating, damping factor 20

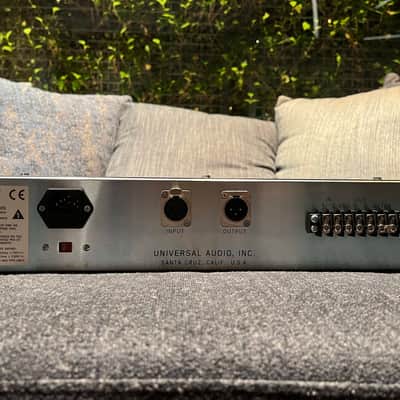

External Connections

• Jones Barrier terminals and XLR connectors

Frequency Response

• ± 1 dB 20 Hz to 20kHz

Gain

• 50 dB

Distortion

• Less than 0.5% total harmonic distortion from 50 Hz to 15 kHz with limiting

Signal to Noise Ratio

• Greater than 70 dB at +10 dBm

Attack Time

• 20 microseconds to 800 microseconds

Release Time

• 50 milliseconds to 1.1 seconds

Stereo Interconnection

• via 1176 SA Network accessory

Meter

• dB gain reduction and dB output

Power Requirements

• 120/240 V

Environmental

• Maximum operating temperature 160°F

Dimensions

• 19" Rackmount chassis, 2U

Weight (unboxed)

• 11 lbs.
