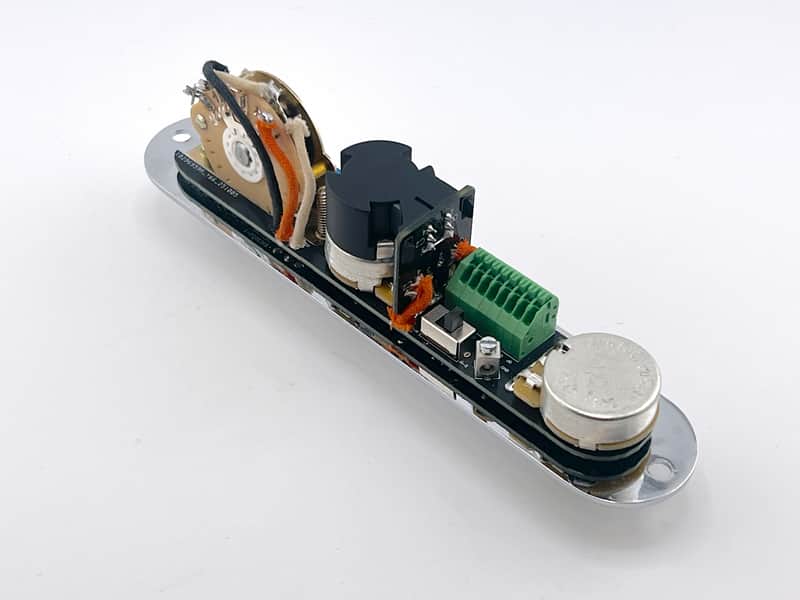

Telecaster S-H or H-S Solderless with Volume Clarity Select, and Coil Split

Upgrade your Telecaster S-H or H-S (Single Coil–Humbucker or Humbucker-Single Coil) setup with this feature-packed solderless harness, designed for players who want maximum tonal versatility without losing the Tele’s classic bite.

* 4-conductor pickup wiring required for humbucker for coil split. *

• 1 × 500k CTS Short Solid Shaft Audio Taper Push/Pull Volume Pot

  • Push/Pull: Splits either the neck or bridge humbucker.

• 1 × 500k CTS Short Solid Shaft Linear Taper Tone Pot – Smooth, precise tone shaping.

• Capacitor: 1 × 0.047µF  (100V) – Warm lows and crisp Tele highs.

• Fender 3-Way Telecaster Switch (with knob) – Classic Tele pickup selection.

• Switch to select between S-H or H-S configurations


• Volme Clarity Circuit


  • 1000pF / 150k Series – Retain sparkle when rolling down the volume. Volume is similar to an audio taper.

• Coil Split (Volume knob pull): Switch the humbucker between full humbucker and single-coil mode to get those single-coil Tele-type tones.

• Balanced Single Coil:
  • Single coils sees ~250k resistance even though 500k pots are being used.

• Wiring: Vintage cloth push-back wire for a traditional look and durability.

• Solderless PCB: Quick-connect system for pickups—no soldering required.

This harness transforms your HS Tele into a true tonal workhorse. Get classic Tele single-coil snap, fat humbucker power, and versatile coil-split tones—all while keeping clarity at lower volumes with the switchable treble-bleed system.

Disclaimer: Telecaster control plates must have pot holes sized to fit full-size CTS pots (6.35 mm / 1/4"). If your plate has smaller metric holes, they may need to be widened using a guitar tuner reamer for proper installation.

This product is a build-to-order product and can take 1 to 14 days to ship.
