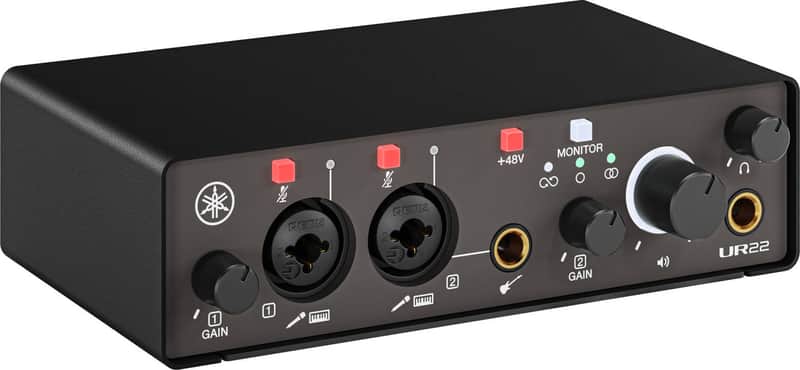

Ideal for content creators, podcasters, and solo musicians, the Yamaha UR22MK3 is a compact 2x2 USB-C audio interface sporting two XLR-1/4" combo mic/line input jacks with Class-A UR mic pres. With low-latency direct monitoring, loopback, and mute functions for all inputs, the UR22MK3 is a flexible interface that can handle a variety of applications.Along with the combo inputs, the front panel also provides a separate 1/4" Hi-Z input for passive instruments such as guitar and bass, making the UR22MK3 effective as a DI box. Each input has a dedicated gain control. The rear panel features two 1/4" line outputs for stereo connections and two USB-C ports—one for host connections with devices and one for power input. The interface provides up to 24-bit / 192 kHz conversion for high-quality audio capture. Cross-platform and plug-and-play compatibility means this interface works with Windows, macOS, and iOS devices without the need for drivers. Compact and lightweight, this desktop interface can easily be taken with you. The UR22MK3 includes a USB-C to USB-A cable and bundle of audio production software to get you started.

Product Features

• USB type-C Audio Interface with 24-bit / 192 kHz Support
• 106 dB Dynamic Range (Input)
• 2 UR Mic Preamp with +48V Phantom Power
• 2 Mic/Line Combo Input with Mute Button, 1 Hi-Z Input
• 2 TRS Line Outputs, 1 Headphone Output That is Controlled by the Output Volume
• Input Mixing Channels: 2 Mono + 1 Stereo Loopback
• Busses: 1 MIX (Stereo)
• Simple Loopback Function Facilitates Effortless Live Streaming
• Direct Monitoring Switch Offers Latency-Free Direct Hardware Monitoring of Input Signal
• Compact, Lightweight Metal Housing
• Includes Cubase AI for PC, Cubasis LE DAW App for iPhone/iPad, Steinberg Plus and USB Cable

Attributes

• Color: Black

Technical Specifications

• Features: USB
• Dimensions: 1.9" H x 6.2" W x 4" D
• Weight: 1lbs
• Inputs: 2 x XLR-1/4" Combo, 1 1/4" (Hi-Z)
• Outputs: 2 x 1/4" TRS
• USB: 2 x USB-C
• Software: Cubase AI and Steinberg Plus
• Power Supply: Bus Powered/5V DC USB-C
• Computer Connectivity: USB
• # of Preamps: 2
• Simultaneous I/O: 2x2
• A/D Resolution: 24-bit/192kHz
• Mac OS Requirements: macOS 11 to 14
• PC OS Requirements: Windows 10 to 11
