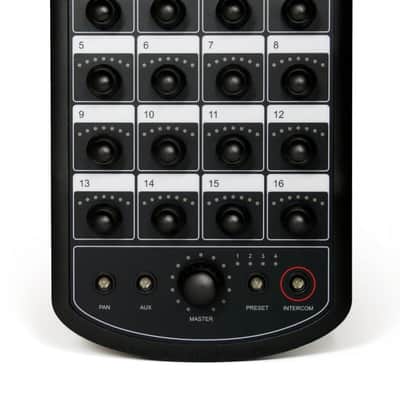

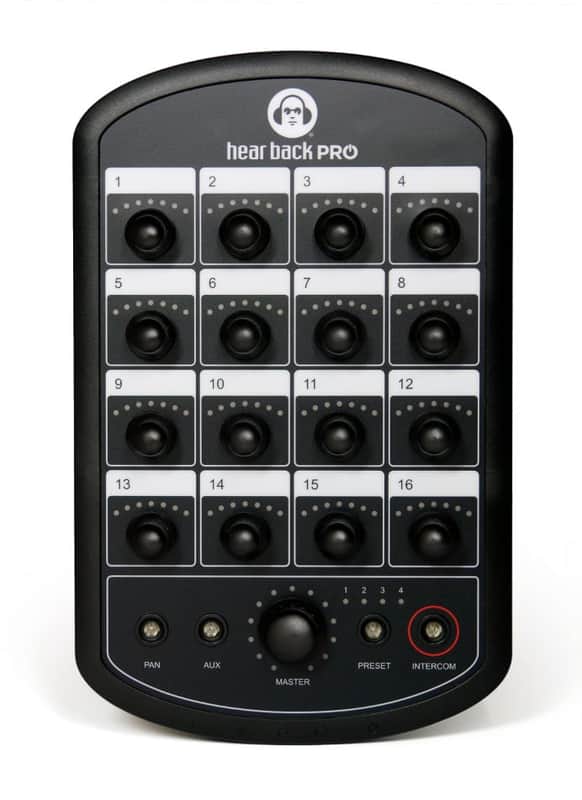

Hear Technologies PROHBM Hear Back PRO 18-Channel Personal Monitor Mixer

The Hear Technologies PROHBM is the personal monitor mixer that is part of the Hear Back PRO system. The mixer connects to the Hear Back PRO Hub via an Ethernet connection, which provides power and audio to the PROHBM up to 500 ft. away from the Hub. The PROHBM can control up to a total of 18 channels: 16 mono channels, AUX In and Intercom In. The 16 mono channels each have their own individual volume, panning and stereo link controls to let you dial in the mix exactly how you want, and with the four recallable presets, you can save your mix and recall it at any time.

The PROHBM can also mount to a standard microphone stand thanks to the included 5/8" threaded socket on the backside of the mixer.

Hear Technologies PROHBM Features:

• Local control of up to 18 channels of audio (16 mono channels + AUX IN + Intercom IN)
• Receive power and audio over one Ethernet cable, up to 500’ from Hub to each Mixer
• 24-bit Delta-Sigma D/A and A/D converters
• Volume/panning/stereo link control of all
• 16 channels of audio
• Store up to 4 recallable presets
• Intercom allows communication to anyone with a Hear Back PRO Mixer
• Selectable 1/8” TRS stereo unbalanced and XLR mono balanced (with 15V phantom power) AUX inputs:
  • Microphone input for crowd / ambiance mic or intercom use
  • Drum module / metronome or local mix input
• 1/8” and 1/4” headphone jacks
• Balanced mono/stereo, line level outputs

Hear Technoloagies PROHBM Specifications:

• For full specifications on the PROHBM, refer to the attached Brochure under the Documentation Tab
