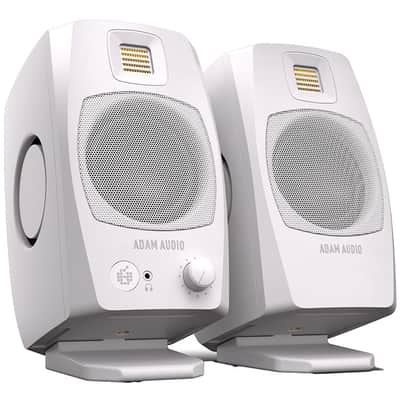

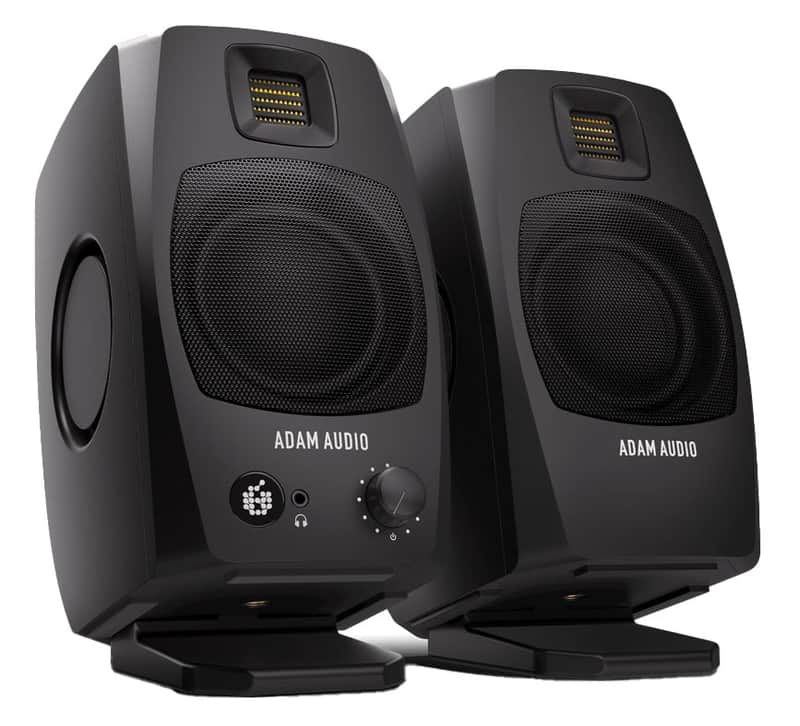

The ADAM Audio D3V is a compact yet powerful desktop monitoring system designed for producers, songwriters, and audiophiles requiring studio-quality in space-constrained environments. Featuring the brand’s signature handmade D-ART AMT tweeters, these monitors deliver crisp, detailed highs, while the 3.5” aluminum woofers and dual passive radiators ensure a deep, controlled bass response down to 45 Hz. With a total system power of 240 W, the D3V provides an impressively dynamic, accurate listening experience, making it an ideal choice for mixing, critical listening, or simply enjoying music with exceptional fidelity. Whether connected to a computer, audio interface, or mobile device via USB-C or balanced TRS inputs, D3Vs offer an uncolored immersive sound tailored for any setup.

Designed with both aesthetics and functionality in mind, the D3V offers intuitive controls, including a multi-function volume knob, room compensation switches, and a multi-color status indicator for easy monitoring. The detachable monitor stands and integrated mic stand mounting points provide flexible placement options, allowing users to optimize their listening position for convertible workspaces. Available in sleek black or white finishes, these monitors are built to complement any studio or home environment while delivering ADAM's signature audio quality. Get the listening experience you deserve with the D3V.

ADAM Audio D3V Includes

• 1 x Left speaker (L)
• 1 x Right speaker (R)
• 1 x Link cable to connect left to right speaker
• 1 x USB-C to USB-C cable
• 1 x USB-C to USB-A adapter
• 1 x Mains cable
• 1 x Power supply block
• 2 x padded monitor stands
• 6 x stick-on pads

ADAM Audio D3V Features

• Handmade D-ART AMT tweeters deliver crisp, detailed highs for precise sound reproduction.
• 3.5” aluminum woofers with dual passive radiators ensure deep, controlled bass down to 45 Hz.
• 240 W total system power provides dynamic, accurate audio for mixing, critical listening, and music enjoyment.
• USB-C and balanced TRS inputs allow seamless integration with computers, audio interfaces, and mobile devices.
• Multi-function volume knob, room compensation switches, and multi-color status indicator offer intuitive control.
• Detachable monitor stands and integrated mic stand mounting points provide flexible placement options.
• Sleek black or white finishes complement any studio or home setup with a modern, professional aesthetic.
• Designed for producers, songwriters, and audiophiles who need studio-quality sound in compact spaces.

ADAM Audio D3V Specifications

• Display: Front panel multi-color LED
• Cabinet Design: Dual passive radiator
• Cabinet Material: PC-ABS
• Mounting options: Flat on desk or loudspeaker stand (angled 15 degrees upwards on desk using supplied foot), threaded insert (3/8″) on the bottom of the cabinet for microphone stand
• Power consumption (max, idle, sleep): 60 W, 5 W, 0.3 W
• AC Input Voltage: 100 – 240 V, 50/60 Hz
• Power Rating: 60 W max.
• Operating Conditions: -10° C to +45° C (+14° F to +113° F);<70% RH, non-condensing
• Weight (excl. feet): 3.58 kg total (7 lbs 14 oz total)
• Dimensions (Height x Width x Depth): 200 mm (Height with stand: 240 mm) x 115 mm x 150
• (7 7/8″” (Height with stand: 9 1/2″”) x 4 1/2″” x 5 7/8″”, 9 1/2″”)”
• Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
• Delivery Contents: D3V primary loudspeaker, D3V secondary loudspeaker, USB-C cable with USB-A adpater, Power cable, Power block, Quick Start Guide
• Connectors
  • Analog: TRS
  • Input Impedance: 47 kOhm
  • Max. Input Level: +9 dBu
  • Digital: USB Type C
  • Digital Audio Signal: Class-compliant USB 1.1
  • Headphones output connector: 3.5 mm TRS mini-jack
  • Headphones output impedance: 32 Ohm
• Amplification
  • Woofer
    • Amplifier Type: PWM
    • Peak (10% THD, limiter deactivated): 2 x 80 W
    • RMS (1% THD, limiter deactivated): 2 x 70 W
  • Tweeter
    • Amplifier Type: PWM
    • Peak (10% THD, limiter deactivated): 2 x 40 W
    • RMS (1% THD, limiter deactivated): 2 x 30 W
• Control Options
  • Input sensitivity: 0 dBu = 88 dB SPL at 1 m @ 0 dB level setting
  • Level: Front panel knob controls loudspeaker and headphone outputs over the range -∞ dB to +6 dB
  • Front panel knob press functions: Mute, standby, input select, channel swap, firmware update mode
  • Input selection: Analog, USB-C
  • Channel order: Normal, L/R swapped
  • Backplate Room Adaption: Yes
  • Position (Bass): 0, -3, -6 dB
  • Desk (Low-mid and Mid): 0, -3, -6 dB and 0, -2, -4 dB
  • Room Acoustics (Treble): 0, -1.5, -3 dB
• Acoustics
  • Frequency Response @ -3 dB: 48 – 22.6 kHz
  • Frequency Response @ -6 dB: 45 – 23.2 kHz
  • Crossover Frequencies: 4.0 kHz
  • Max SPL in full space at 1 m with sine bursts (average 100 Hz to 6 kHz) @ 3% THD (RMS): 94 dB SPL
  • Max SPL in full space at 1 m with sine bursts (average 100 Hz to 6 kHz) @ 3% THD (Peak): 97 dB SPL
  • Max SPL in full space at 1 m with sine bursts (average 50 Hz to 100 Hz) @ 3% THD (RMS): 80 dB SPL
  • Max SPL in full space at 1 m with sine bursts (average 50 Hz to 100 Hz) @ 3% THD (Peak): 84 dB SPL
  • Max peak SPL in full space at 1 m with IEC-weighted noise (full range / 80 Hz bass managed): 98 dB SPL
  • Dolby DARDT max SPL in full space: 103 dB SPL
  • Dolby DARDT max SPL in full space (bass managed): 106 dB SPL
• Drivers
  • Woofer
    • Basket Diameter: 3.5″
    • Voice Coil Diameter: 1″ (25 mm)
    • Cone Material: Single-piece aluminium
    • Passive Radiator Basket Diameter: 2 x 3.5″
  • Tweeter
    • Type: D-ART
    • Diaphragm Area: 2.8 inch² (1800 mm²)
    • Equivalent Diaphragm Diameter: 1.9″ (48 mm)
    • Velocity Transform Ratio: 5 to 1
    • Diaphragm Weight: 0.085 g
    • Tweeter Dispersion: 120° horizontal, 120° vertical
• Signal Processing
  • AD converter: 24-bit (via TRS inputs)
  • USB bit depth: 16-bit (via USB-C input)
  • Internal sample rate: 48 kHz
• Protection: Independent peak and thermo limiters for each driver, and amplifier thermo limiters
