Yamaha Tio1608-D2 16 x 8 Dante-Equipped 96kHz I/O Rack

The Tio1608-D2 is a Dante-compatible I/O rack equipped with 16 mic/line inputs and 8 line outputs. It can control gain from TF Series and DM3 consoles remotely, allowing the construction of a simple stagebox system. The versatile Tio1608-D2 also supports 96k, making it perfect for use as an I/O rack in large installations with products such as the RIVAGE PM or DME7.

A stagebox that enhances the convenience of your console

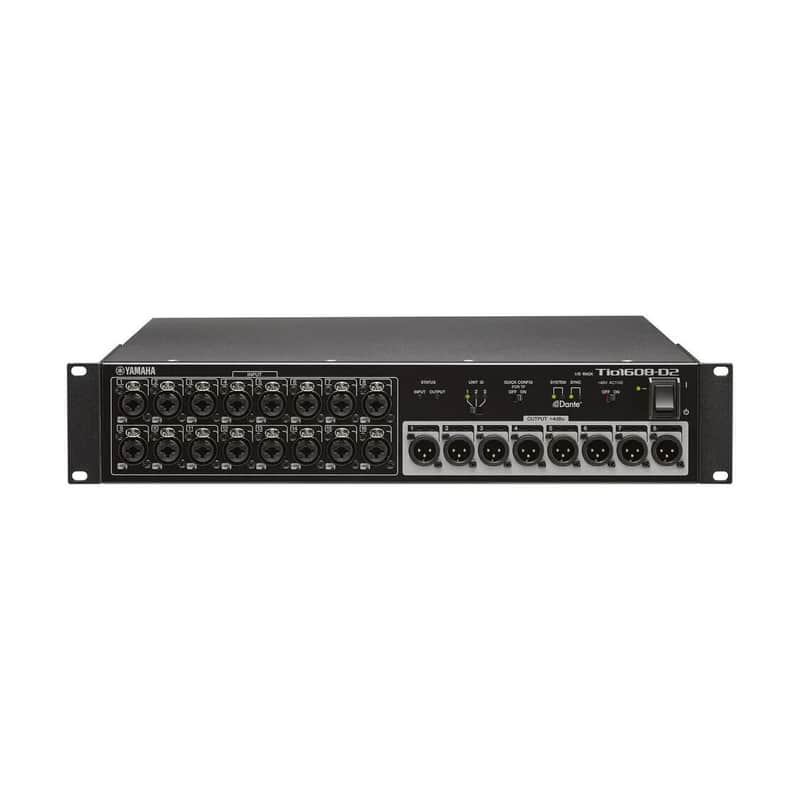

\n Back view of Yamaha I/O Rack Tio1608-D2: image showing a stagebox that enhances the convenience …
\n The Tio1608-D2 is the ideal stagebox for use with TF Series or DM3. The TF Series can use the optional NY64-D expansion card to connect to up to three Tio1608-D2 units, while DM3 can connect to a single unit. Connecting the console and Tio1608-D2 unites with a lightweight, durable CAT5e Ethernet cable in a daisy chain provides low-latency, high quality sound transmission without the time-consuming transport and installation required when using analog snakes.

Key Features

\n
• Renowned Yamaha sound quality with 96kHz sample rate
  \n
\n
• 3U size, 16 inputs and 8 outputs.
  \n
\n
• Dante network protocol contributes to greater system scalability and flexibility
  \n
\n
• Supports QUICK CONFIG Mode for DM3 and TF series
  \n
\n
• Automatic digital-stage compensation for analog gain changes (CL/QL series only)
  \n
\n
• Recallable D-PRE preamplifiers
\n

Technical Specifications

Tio1608-D2
\n General
\n Sampling frequency rate
\n External
\n 44.1kHz, 48kHz, 88.2kHz, 96kHz
\n Signal delay
\n Less than 1.3ms INPUT to OUTPUT, connect with DM3, Dante Receive Latency set to 0.25ms (one way), Fs=96kHz; Less than 2.6ms INPUT to OUTPUT, connect with DM3, Dante Receive Latency set to 0.25ms (one way), Fs=48kHz
\n Total harmonic distortion
\n Less than 0.2% +4 dBu@20Hz-20kHz into 600O, Gain=+66 dB / Less than 0.05% +4 dBU@20Hz-20kHz into 600O, Gain=-6 dB, INPUT to OUTPUT, Fs=88.2kHz, 96kHz; Less than 0.1% +4 dBu@20Hz-20kHz into 600O, Gain=+66 dB / Less than 0.05% +4 dBU@20Hz-20kHz into 600O, Gain=-6 dB, INPUT to OUTPUT, Fs=44.1kHz, 48kHz *Measured with a -18 dB/octave filter @80kHz
\n Frequency response
\n +0.5, -1.5 dB 20Hz-20kHz, refer to the nominal output level @1kHz, INPUT to OUTPUT
\n Dynamic range
\n 108 dB, INPUT to OUTPUT, Gain=-6 dB / 110 dB, DA Converter, Fs 96kHz; 108 dB, INPUT to OUTPUT, Gain=-6 dB / 112 dB, DA Converter, Fs 48kHz
\n Hum & noise level
\n Equivalent input noise
\n -128 dBu, Gain=+66 dB, Fs 96kHz, 48kHz *Measured with A-weighting filter
\n Residual output noise
\n -86 dBu, Fs 96kHz / -88 dBu, Fs 48kHz, ST main off *Measured with A-weighting filter
\n Crosstalk
\n -100 dB, adjacent INPUT/OUTPUT channels, Input Gain = -6 dB *Measured with a -30 dB/octave filter @22kHz
\n Heat dissipation
\n 100-240V, 50/60Hz, 43.5kcal/h
\n Power requirements
\n 100-240V, 50/60Hz
\n Power consumption
\n 50W
\n Dimensions
\n W
\n 480mm (18.9â€)
\n H
\n 88mm (3.5â€)
\n D
\n 364mm (14.4â€)
\n Net weight
\n 5.7kg (12.6lbs)
\n Accessories
\n Owner’s Manual, Power Cord (2.5m), Rubber stoppers (4)
\n Others
\n Temperature Range: Operating temperature range: 0 – 40 Degrees C, Storage temperature range: -20 – 60 Degrees C
