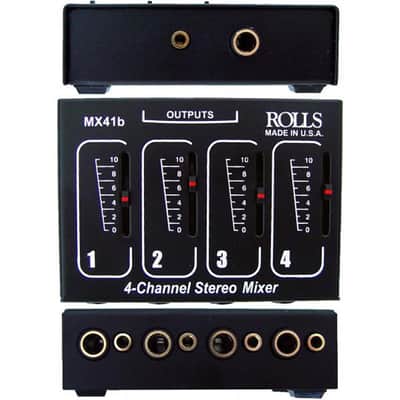

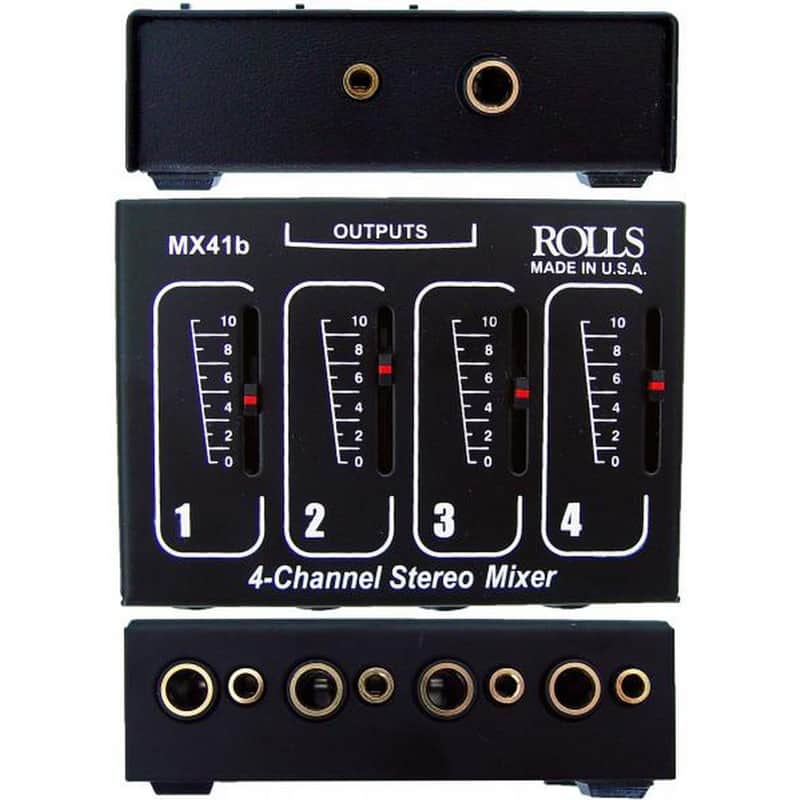

Rolls MX41b 4 Channel Passive Stereo Mixer

The MX41b is a stereo four channel passive mixer for expanding a console mixer, mixing instruments, CD players, cassette players, computers etc. It requires no batteries or other power source. The unit may also be used as a 1 In 4 Out stereo splitter box when all controls are set to maximum.

Key Features

• Four Stereo 1/4†and 1/8†Inputs
• Stereo 1/4†and 1/8†Outputs
• 100K Ohm Potentiometers

Technical Specifications

8 Stereo Inputs
4: 1/4†and 4: 1/8â€
Stereo 1/4†and 1/8†Outputs.
Input Impedance
10K to 47K Ohms
Output Impedance
2.5K to 10K Ohms
Gain
-12 dB MAX
Dimensions
3.6†x 2.7†x 1.42†(W x H x D)
Weight
1 lb.
