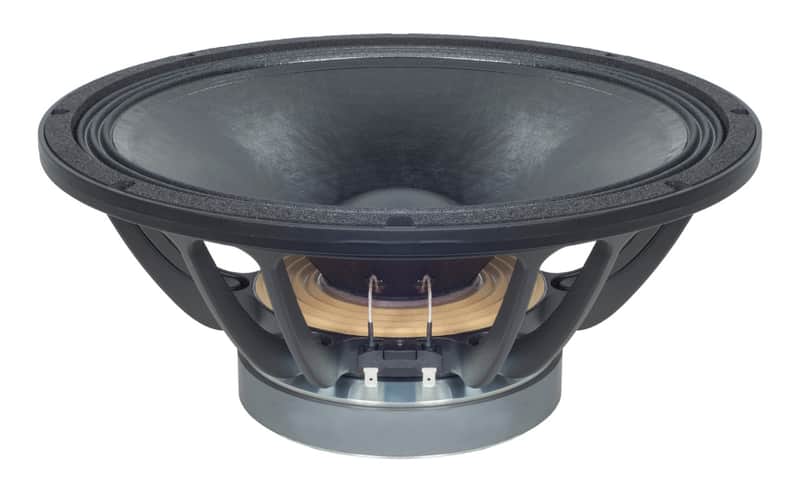

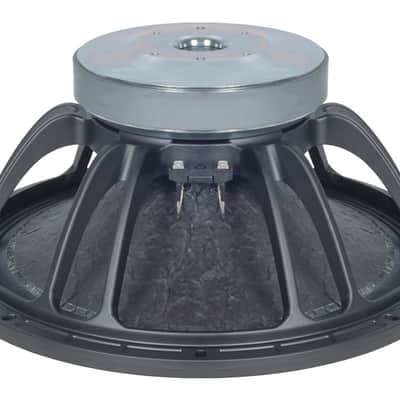

B&C 15FW88 8 ohms 15"Woofer with 3.5" 88mm voice coil & high flux ferrite magnet

B&C 15FW88 8 ohms 15"Woofer with 3.5" 88mm voice coil & high flux ferrite magnet

• The FW88 series is perfectly balanced for the loudspeaker systems of today. A performance-oriented range of ferrite woofers with 3.5" (88mm) voice coil and high flux ferrite magnet, incorporated into a compact but powerful motor package. The results are unexpected low frequency output and midrange extension to meet with almost any driver for two way applications. Do more, with less, with the FW88 series.

Features:

• 1400 W continuous program power capacity
• 88 mm (3.5 in) aluminium voice coil
• 49 - 3000 Hz response
• 98 dB sensitivity
• Ventilated voice coil gap for reduced power compression
• Double silicone spider with optimized compliance
• Aluminum demodulating ring allows a very low distortion figure

Specifications:

• Nominal Diameter
• 380 mm (15 in) Minimum Impedance
• 6.4 Ω Continuous Power Handling
• 1400 W Frequency Range
• 49 Hz - 3000 Hz Winding Material
• Aluminium Winding Depth
• 21.5 mm (0.85 in) Flux Density
• 1.04 T

Nominal Impedance

• 8 Ω
• Nominal Power Handling
• 700 W Sensitivity
• 98 dB Voice Coil Diameter
• 88 mm (3.5 in)

• Former Material Glass Fibre Magnetic Gap Depth
• 11 mm (0.43 in)

• Woofer Cone Treatment
• WP Waterproof Front Side

Parameters:

• Fs 49 Hz
• Qes 0.45
• 0.43 Sd
• 855 cm² (132.53 in²) Xmax
• 8 mm Mms
• 106.8 g Le
• 0.81 mH

Mounting and Shipping Info:

• Overall Diameter 393 mm (15.47 in)
• Baffle Cutout Diameter
• 357 mm (14.06 in) Flange and Gasket Thickness
• 14 mm (0.55 in)
• Net Weight 9 kg (19.84 lb)
• Shipping Weight 10.3 kg (22.71 lb)

UPC

• 8050593406910
