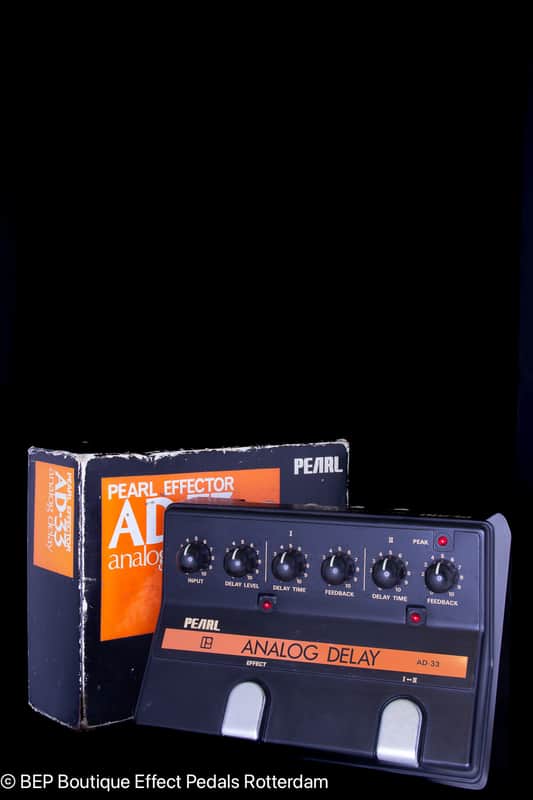

Pearl AD-33 Analog Delay early 80's MN3005 BBD s/n 857007 Japan in excellent condition with box. Thoroughly tested and in perfect working order.

The Pearl AD-33 was an analog delay released in the 1980's by Pearl and is part of the Sound Choice series. Pearl pedals were built in Japan by a company called KLM (much like Ibanez pedals were built by Maxon) and were engineered to include some very innovative features for this era.

Vintage Japan Pearl AD-33 analog delay with MN3005 BBD. Dual time+feedback settings to switch between on the fly.  A bit like having two early model Boss DM-2's side by side. The 18V circuit allows for greater headroom, giving a clearer signal and delay repeats than standard 9V vintage analog delay pedals.

Works perfect and in overall good physical condition with some paint aging/wear as pictured. Takes an 18V DC power supply (2.1mm barrel plug, center negative) or 2 x 9V batteries.  So it works with most multi-output (brick-style) power supply units;

Controls

• Input

• adjusts the input level.

• Delay Level (2x)

• adjusts the output level of the delay sounds.

• Delay Time (2x)

• adjusts the length of the delay time.

• Feedback

• adjusts the number of regenerations of the delay sound.

Specifications

• Input Impedance

• 470 kOhms

• Output Impedance

• 10 kOhms

• Maximum Input Level

• +4dB @ 0dB=775mV at 440Hz

• Maximum Output Level

• +4dB

• Equivalent Input Noise

• less than -100dB (IHF-A)

• Power Supply

• 18V (2x9v battery/AC adaptor)

• Power Consumption

• 28mA

• Frequency Response

• Effect off: 20Hz-20KHz, +0/-3dB
•

• Effect off: 20Hz-4KHz, +0/-3dB (Delay Time Control set at 0)

• Delay Time

• 20-350ms

• Dimensions

• 180(W)x61(H)x136(D)mm

• Weight

• 930 grams (including batteries)
