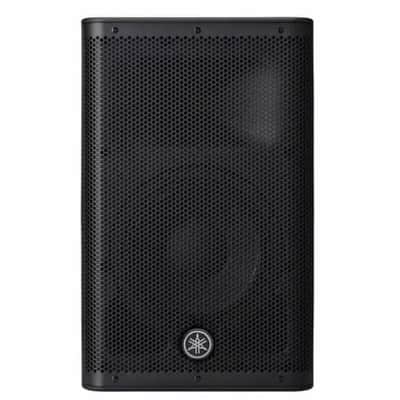

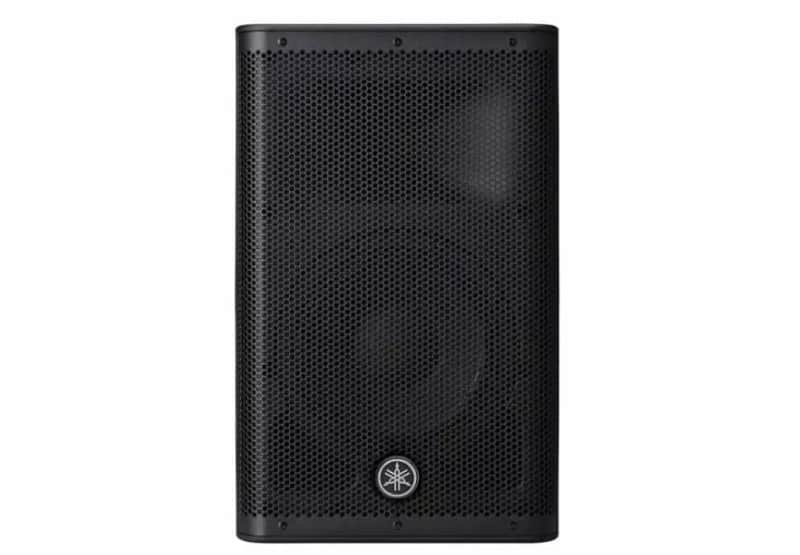

Since its inception, the DXR Series has long signified a confluence of raw power and technological innovation that reliably harnesses and delivers impressively high output with superior quality and clarity. The DXR mkII Series powered loudspeakers are the newly upgraded models of the series that add even more SPL and feature a larger, yet much lighter 1.75” Neodymium HF compression driver for extremely clear voice reproduction and musicality. Once again our team worked in tight collaboration with touring loudspeaker specialists NEXO, adding crucial insight and expertise that led to design improvements based on the ever-evolving demands of sound reinforcement professionals.

Speaker type 10" 2-way, Bi-amp powered speaker, Bass-reflex type Frequency range (-10dB) 56Hz - 20kHz Nominal coverage H 90° V 60° Components LF Diameter:10" cone, Voice Coil:2", Magnet:Ferrite HF Diaphragm:1.75", Type: 1" throat compression driver, Magnet:Neodymium Crossover FIR-X tuning™ (linear phase FIR filter) Output power Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W) Maximum output level (1m; on axis) 132dB SPL I/O connectors INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1 ), LINK OUT: XLR x 1 Processors D-CONTOUR: FOH/MAIN, MONITOR, OFF Power requirements 100V - 240V, 50Hz/60Hz Power consumption 90W Flying and mounting hardware Top x2, Rear x1 (Fits for M8 x 15mm eyebolts) Pole socket 35mm with 2-way features (0 or 7 degrees)
