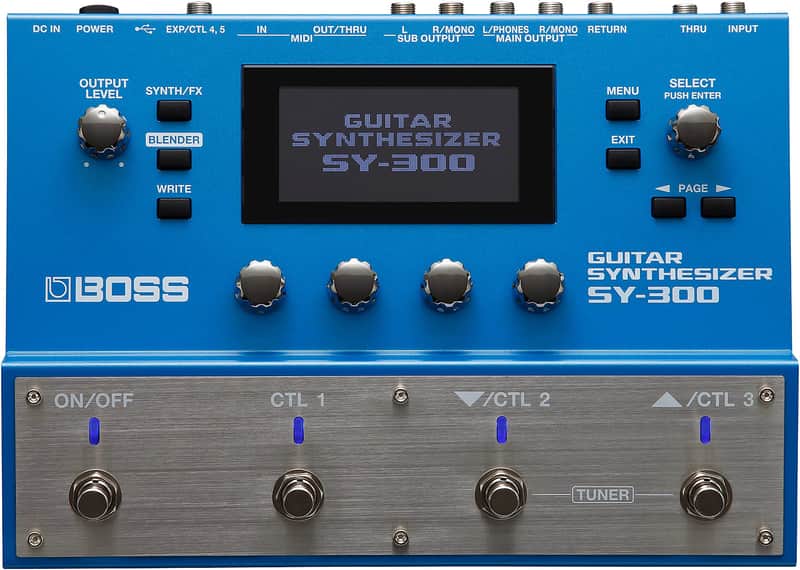

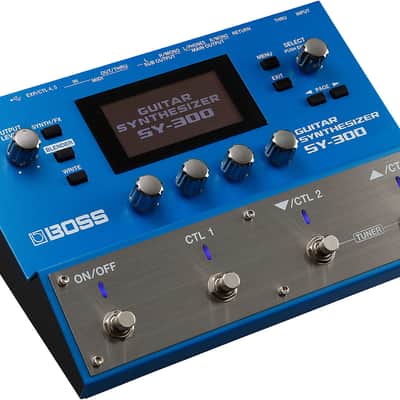

Boss SY-300 Guitar Synthesizer

Explore mint Dimensions of Sound with Any Guitar

Grab your favorite axe and dive into an extraordinary world of sound creation with the SY-300 Guitar Synthesizer. The SY-300 can be used with all your guitars right away, with no special pickup required—just plug into the standard 1/4-inch jack and play! Thanks to revolutionary mint BOSS technology, you’re able to explore fat, analog-style polyphonic synth sounds with zero latency, seamlessly extending the natural expressiveness and familiar feel of your own instrument. In addition, you can shape your normal guitar with the synth’s filters, amps, and LFOs to create all sorts of cool sounds never heard before. From unique lead textures to rich, evocative soundscapes, the SY-300 brings untapped dimensions of inspiration and creativity to your music.

Specifications

Oscillators

Three OSCILLATOR (wave: SIN, SAW, TRI, SQR, PWM, DETUNE SAW, NOISE, INPUT)

Effects

Effect (FX) x 4

Type:

CHORUS, COMPRESSOR, DELAY, EQ, FLANGER, ISOLATOR, LIMITER, LO-FI, OD/DS, PAN, PHASER, REVERB, ROTARY, SLICER, SLOW GEAR, TOUCH WAH, TREMOLO, UNI-V, CHORUS+DELAY, CHORUS+REVERB, DELAY+REVERB

Patch Memories

User: 99

Preset: 70

AD Conversion

24 bits + AF method

* AF method (Adaptive Focus method): This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.

DA Conversion

24 bits

Sampling Rate

44.1 kHz

Nominal Input Level

INPUT: -10 dBu

RETURN: -10 dBu

Input Impedance

INPUT: 2.2 M ohms

RETURN: 220 k ohms

Nominal Output Level

MAIN OUTPUT: -10 dBu

SUB OUTPUT: -10 dBu

Output Impedance

MAIN OUTPUT: 2 k ohms

SUB OUTPUT: 2 k ohms

Recommended Load Impedance

MAIN OUTPUT L/R: 20 k ohms or greater

SUB OUTPUT L/R: 20 k ohms or greater

PHONES: 16 ohms or greater

LCD

Graphic LCD (132 x 64 dots, backlit LCD )

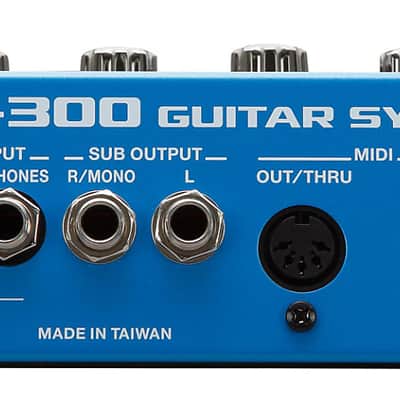

Connectors

• INPUT jack: 1/4-inch phone type
• THRU jack: 1/4-inch phone type
• RETURN jack: 1/4-inch phone type
• MAIN OUTPUT R (MONO) jack: 1/4-inch phone type
• MAIN OUTPUT L (PHONES) jack: 1/4-inch phone type
• SUB OUTPUT R (MONO) jack: 1/4-inch phone type
• SUB OUTPUT L jack: 1/4-inch phone type
• MIDI (IN, OUT/THRU) connectors
• EXP/CTL4, 5 jack: 1/4-inch TRS phone type
• USB port: USB type B
• DC IN jack

Power Supply: AC adaptor

Current Draw: 400 mA

Accessories

• AC adaptor
• Owner's manual
• Leaflet "USING THE UNIT SAFELY"

Options (sold separately)

• Footswitch: FS-5U, FS-6, FS-7
• Expression pedal: Roland EV-5

Size and Weight

• Width: 255 mm, 10-1/16 inches
• Depth: 191 mm, 7-9/16 inches
• Height : 70 mm, 2-13/16 inches
• Weight(excluding AC Adaptor): 1.75 g, 3 lbs 14 oz.
