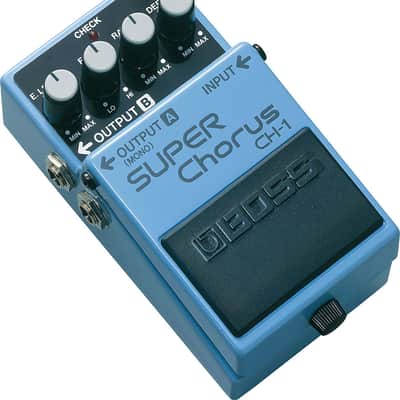

Boss CH-1 Stereo Super Chorus Guitar Effect Pedal

A UNIQUE STEREO CHORUS

The CH-1 Super Chorus pedal delivers a clean classic chorus sound with crystal-clear highs and a unique stereo effect, variable between left and right speakers.

• Classic BOSS chorus pedal with clean, brilliant sound for guitar and keyboards
• Effect Level, EQ, Rate and Depth knobs allow for precise shaping of sound
• Features Mono input and Stereo outputs for connection to dual amps
• BOSS 5-year warranty

CH-1: Super Chorus

• Nominal Input Level-20 dBu
• Input Impedance1 M ohm
• Nominal Output Level-20 dBu
• Output Impedance1 k ohm
• Recommended Load Impedance10 k ohms or greater
• Bypass: Buffered bypass

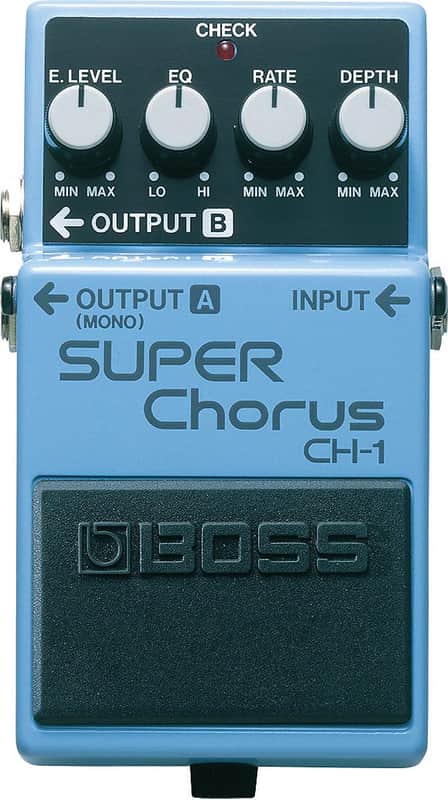

Controls:

• DEPTH knob
• RATE knob
• EQ knob
• E.LEVEL knob
• Pedal switchIndicator
• CHECK indicator (Used for indication of check battery)Connectors
• INPUT jack: 1/4-inch phone type
• OUTPUT A/B jack: 1/4-inch phone type
• DC IN jack
• Power Supply: Alkaline battery (9 V, 6LR61)
• AC adaptor (PSA series: sold separately)
• Current Draw: 55 mA
• Expected battery life under continuous use
• Alkaline: Approx. 6 hours
  *These figures will vary depending on the actual conditions of use.
• Accessories Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
• Alkaline battery (9 V, 6LR61)
• Options (sold separately)
• AC adaptor: PSA series

SIZE AND WEIGHT

• Width: 73 mm, 2-7/8 inches
• Depth: 129 mm, 5-1/8 inches
• Height: 59 mm, 2-3/8 inches
• Weight (including battery): 420 g, 15 oz

* 0 dBu = 0.775 Vrms
