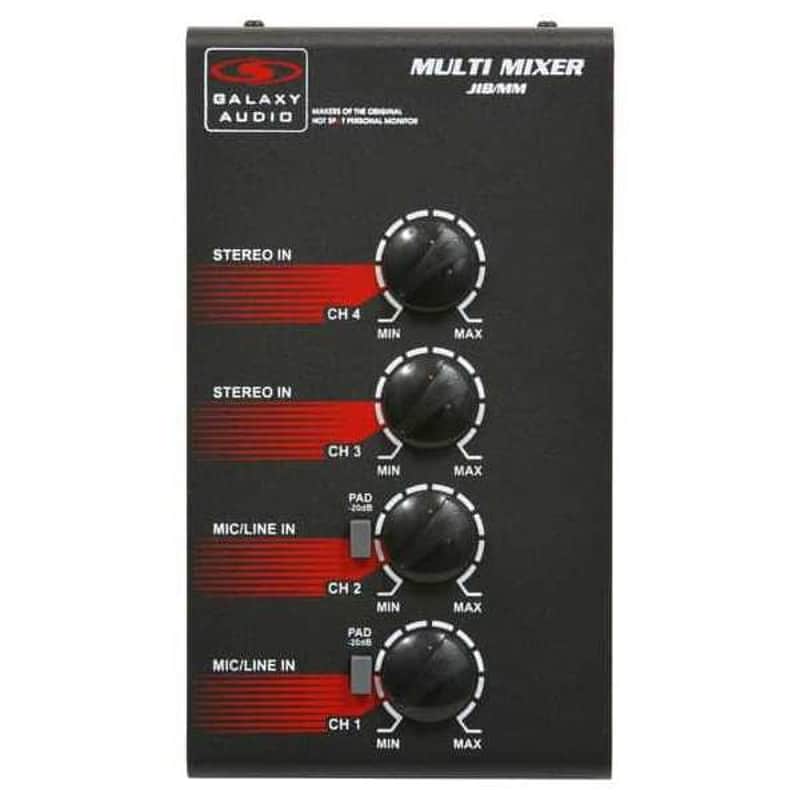

Galaxy Audio JIB/MM Audio Microphone Mixer

Effortlessly Blend Your Sound - The Galaxy Audio JIB/MM Audio Microphone Mixer

The Galaxy Audio JIB/MM (Multi Mixer) is a great tool for live sound, home recording, field recording, audio/video, and many others. This audio microphone mixer unit features 4 inputs; Chan 1&2: XLR/1/4″ combo w/ 20dB pad, Chan 3: Stereo RCA and Stereo 1/8″ mini (3.5mm), Chan 4: Stereo RCA. Each channel has its own volume control.

• +24V Phantom Power
• 7 Input/4 Channel Microphone Mixer
• Headphone Output with Volume
• Multiple Outputs
• Metal Construction
• Portable – Runs off of 2 AA Batteries*
• High Gain/Wide Dynamic Range

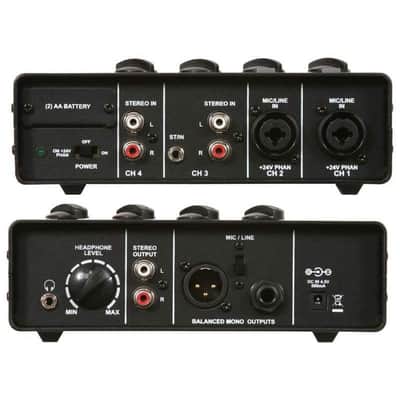

The JIB/MM also features numerous outputs; XLR, 1/4″, stereo RCA, and a stereo headphone output with a volume control. The “Mic/Line switch” located between the XLR and 1/4″ Balanced Mono Outputs allows for selecting either a “Mic Level” Balanced Mono Output or a “Line Level” Balanced Mono Output.

The JIB/MM will run off of 2 AA batteries for about 5 hours or an optional DC power supply (JIB/UA4.5-14). The JIB/MM will supply +24V phantom power to microphones.

SPECIFICATIONS

• Mic Input Type: XLR/ 1/4" combo
• Mic Input Impedance: 4k (2k with pad)
• Mic Input Sensitivity
  • Minimum: 3mV RMS (-51dBV) (Without Pad)
  • Nominal: 22mV RMS (-33dBV)
• Mic Max Input Level
  • Pad Off: 649mV RMS (-3.8dBV)
  • Pad On: 6.5V RMS (16.3dBV)
• Mic Input Pad: 20dB
• Mic Input Phantom Power: +24V
• Line Input Type: 1/4" TRS
• Line Input Impedance: 10k
• Line Input Sensitivity
  • Minimum: 14mV RMS (-37.2dBV)
  • Nominal: 112mV RMS (-19dBV)
• Line Max Input Level: 3.2V RMS (10dBV)
• CHANNEL 3
• Input Type: Left/Right RCA, 1/8" TRS
• Input Impedance: 15k Min
• Input Sensitivity
  • Minimum: 159mV RMS (-16dBV)
  • Nominal: 495mV RMS (-6.1dBV)
• Max Input Level: 15.8V RMS (+24dBV)
• CHANNEL 4
• Input Type: Left/Right RCA
• Input Impedance: 15k Min
• Input Sensitivity
  • Minimum: 159mV RMS (-16dBV)
  • Nominal: 495mV RMS (-6.1dBV)
• Max Input Level: 15.8V RMS (+24dBV)
• Main RCA Stereo Outputs
  • Nominal Output Level: 1V RMS (0dBV)
  • Maximum Output: 2.9V RMS (9.2dBV)
• Mono Outputs
  • Nominal Line Level Output: 1V RMS (0dBV)
  • Maximum Line Level Output: 2.9V RMS (9.2dBV)
  • Nominal Mic Level Output: 32mV RMS (-30dBV)
  • Maximum Mic Level Output: 99mV RMS (-20.8dBV)
• Headphone Power Output: 30mW Stereo @ 32 Ohm
• THD: 0.01% (22Hz - 22kHz @ Nominal Volume)
• S/N: >80dB
• Power Supplied By: 2 AA Batteries (Alkaline)
• Typical Battery Life: About 5 Hours (Alkaline)
• DC In Requirements: 4.5VDC (regulated), 500mA minimum
• Barrel Plug: 4 mm (O.D.) and 1.74 mm (I.D.), center positive
• Dimensions: 7.2" x 4" x 2.1" (182.4 x 102.3 x 53 mm) (HxWxD)
• Weight: 36.33 oz (1,030 g)
• Compatible Galaxy Audio AC Adapter: JIB/UA4.5-14

Manufacturer: Galaxy Audio
Model: JIB/MM
SKU: I196188-N-5-WHXA
UPC: 691281600050
