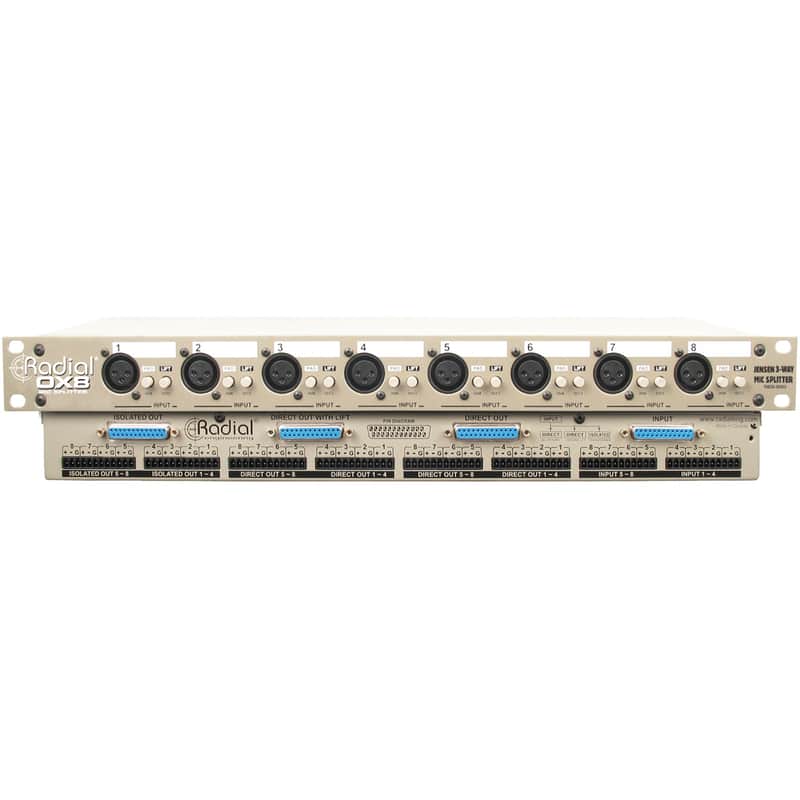

Radial OX8-J 8 Channel 3 Way Mic Level Signal Splitter

The Radial Engineering OX8-j is a high performance, 8-channel mic splitter with 3 outputs on each channel: a direct output for 48V phantom return, and auxiliary output with ground lift switch and a transformer isolated output.

Though primarily designed for mic signals, the 8ox is equipped with a pad on each channel for line level sources. This makes the 8ox highly adaptable for all types of signal splitting and in particular for live recording, delivering a transformer isolated audio for the recording engineer while providing a direct feed for the FOH and monitor consoles.

For maximum flexibility, several connector options are available: Inputs may be accessed via the front panel using standard XLRs, or via the rear panel with either the 25pin D-sub and/or the Phoenix screw-down connectors. These options make it easy to connect to popular multi-track recorders while providing easy termination for permanent installations.

The 8ox is entirely passive and as such does not require any power supply. Heavy-duty 14-gauge steel construction and baked enamel finish ensure maximum durability. An optional frame mounted version of the 8ox is available (the 8ox-ci) which is an excellent choice for installation inside standard Nema electrical enclosures. The standard 8ox comes with our custom-wound transformers or may be specially ordered with premium Jensen audio transformers.
