In a footprint of less than 2 square feet (0.19 square meters), the compact, 16-channel StudioLive® 6.0.2 offers 8 mono input channels, 4 stereo channels, and 4 aux buses, each with a high-quality, 60 mm fader. You get generous analog I/O, 12 XMAX Class A solid-state mic preamps, a Talkback input with Class A mic preamp, extensive signal processing with physical controls, MIDI control, accurate metering, and a built-in multichannel recording interface. As with all StudioLive mixers, the 16.0.2 comes with a suite of tightly integrated recording, control, and audio analysis software. And it's so lightweight and compact that you can easily hold it in one hand and tuck it under your arm.

StudioLive 16.0.2 mixers provide plenty of DSP power, with no limitations, no shared resources, no figuring out what processing is available where. You have all of the processing available at all times, with no compromises or caveats. The unique Fat Channel provides a compressor, limiter, expander, and 3-band semi-parametric EQ on every channel and bus; a highpass filter on each channel; phase reverse for the channel mic preamps; a library of professionally crafted presets; and the ability to save and selectively recall processor settings. A stereo, 31-band graphic EQ sits on the main bus. To top it off, you get two 32-bit delay/reverb effects processors, each with its own dedicated mix bus and a library of useful effects presets.

Connect a StudioLive 16.0.2 mixer and you'll instantly hear details and clarity you'd expect to find only in a much more expensive console. StudioLive mixers operate at up to 48 kHz for high-definition mixing and recording. High-quality Burr-Brown converters on every input and output provide a best-in-class 118 dB of dynamic range so you'll catch every high and low with great accuracy and no audible distortion. And our XMAX microphone preamps deliver incredibly high headroom, deep lows, smooth highs, and a rich overall sound.

Key Features

• 16 Total Input Channels
• 16 Input & 16 Output FireWire Interface
• 8 Mono Mic & Line Input Channels
• 4 Stereo Line Channel Inputs
• Compact Size
• XMAX Class A Mic Preamps x12
• 32-Bit Digital Effects Processors x2
• Full Dynamics Processing
• iPad, iPhone or Laptop Remote Control
• Mac & Windows OS

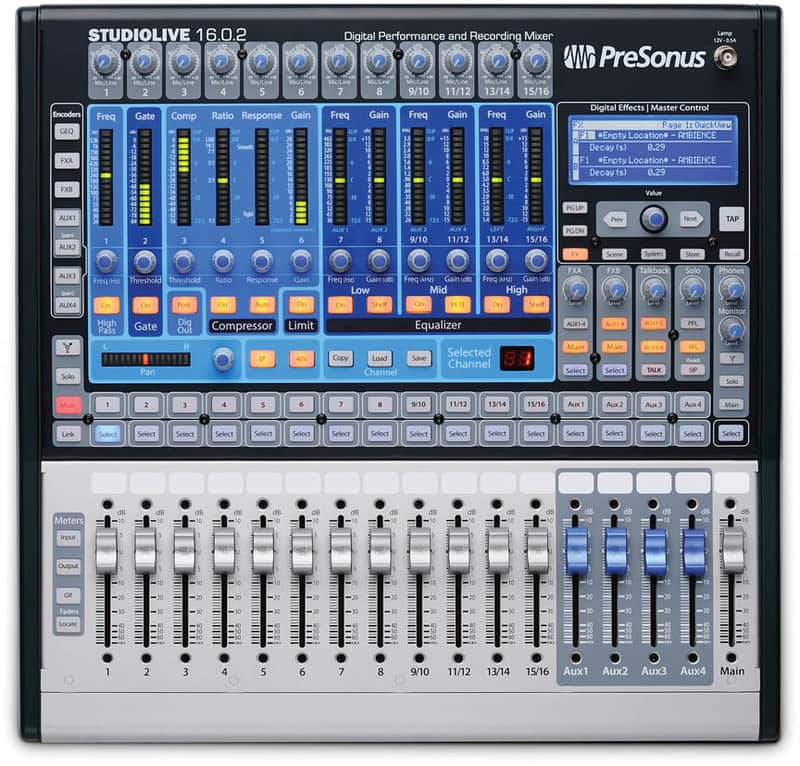

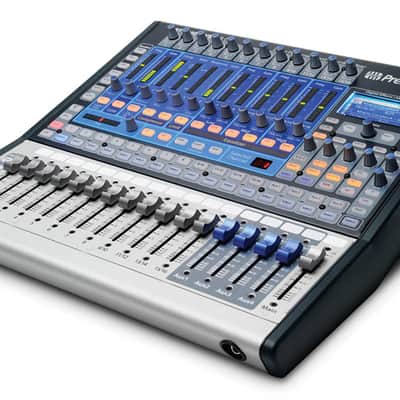

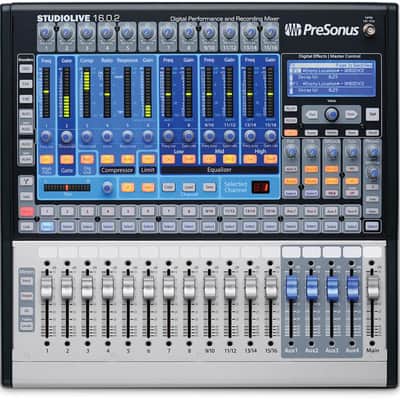

The PreSonus StudioLive 16.0.2 Performance & Recording Digital Mixer is a compact yet powerful digital mixer with a 16 x 16 FireWire interface for direct recording with a Mac or Windows based DAW software. Its small 16 x 15.5" (406.4 x 393.7mm) frame features 16 inputs with 8 mono mic/line balanced inputs and 4 stereo line input channels, all fitted with 60mm precision faders. All mono input channels feature PreSonus' high-headroom, XMAX class-A mic preamplifiers, for maximum gain, low noise floor, and detailed audio quality.

The StudioLive 16.0.2 delivers the gamut of DSP processing including Gate, Compression, channel EQ, 31-band graphic EQ, and 2 stereo 32-bit digital effects processors with customizable reverb and delay presets. There are 2 dedicated effects buses and 4 auxiliary buses (pre/post-fader assignable) for flexible signal routing. Flexible remote control features and its compact design, allow for a variety of portable applications.

The StudioLive 16.0.2 is bundled with recording software and StudioLive Remote software is available for free download at the Apple App Store. StudioLive Remote enables full-duplex remote control with an iPad, iPhone or laptop, making it an ideal solution for use on stage, live sound reinforcement, remote recording and more.

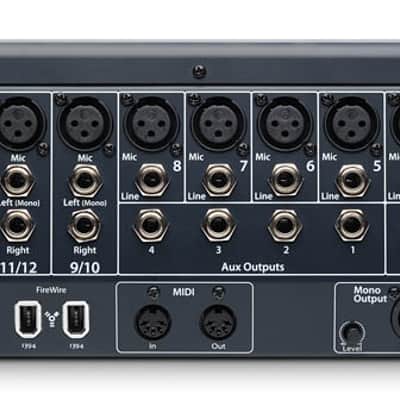

8 Mono Mic/Line Channel InputsHigh-headroom Class A XMAX mic preamplifierXLR mic and balanced 1/4" line inputs60mm precision fader4 Stereo Line Channel InputsHigh-headroom Class A XMAX mic preamplifier (Ch. 9, 11, 13, and 15)XLR mic inputs (Ch. 9, 11, 13, and 15)Balanced 1/4" line inputs (Ch. 9-16)Unbalanced RCA line inputs (Ch. 13-16)60mm precision fader (4 stereo)Fat Channel Signal Processing on all Channels and Buses3-band semi-parametric EQ (individual band on/off)Full-featured compressorStandard downward expanderLimiterPhase reverse (12 mic preamplifiers only)Pan with dedicated 15-LED displayStereo link for input channels and aux busesHigh-pass filter16-In/16-Out FireWire Recording Interface (24-bit/44.1 kHz and 48 kHz)Compatible with most audio software via ASIO, Windows Audio, Core AudioSoftware Bundle for Mac & WindowsPreSonus Studio One Artist digital audio workstationPreSonus Capture live-recording softwarePreSonus Universal Control with Virtual StudioLive bidirectional mixer-control softwareMIDI Control Mode Provides Control OverScene and FX Preset recallMain Volume, FXA, and FXB output levelsFXA and FXB assign/unassign to MainsAdditional Features4 Auxiliary buses (pre/post-fader send)2 Internal FX buses2 stereo 32-bit digital effects processors with customizable reverb and delay presetsOne 31-band stereo graphic EQ (on main outputs only)Scene store and recallSettings can be copied among channels and buses and saved as user presetsLockout mode protects your settings from meddlers and accidentsFree StudioLive Remote iPad wireless-control software available at the Apple App StoreQMixWith free PreSonus QMix software, up to ten musicians can simultaneously control their StudioLive monitor (aux) mixes using an iPhone or iPod touch - four different mixes with a 16.0.2
QMix works a lot like SL Remote - one or more iPhones network wirelessly with a Mac or PC, enabling QMix to remote-control Virtual StudioLive, which in turn controls one or more FireWire-connected StudioLive mixers
When each iPhone connects to the new network, its copy of QMix will discover all StudioLive mixers on the network - in this way, each musician can quickly and easily create an aux mix that includes all mixer channels
In the Virtual StudioLive portion of Universal Control, permissions can be set so that each iPhone user can only control one specified mix (or all mixes) - band mates can't mess with each other's monitors

• Provides wireless control over aux mixes in Virtual StudioLive and hence, over aux mixes in any StudioLive-series digital mixer
• Portrait view shows Wheel of Me, where you can select multiple "Me" channels and control their levels simultaneously
• Landscape view provides control of all aux-send levels and panning (for linked auxes)
• Aux mixes can be named (up to 10 characters)
• Tap tempo for delay effects
• Control the auxs on any StudioLive mixer on the wireless network from one iPhone or iPod touch
• Multiple iPhones and iPod touches can control the same StudioLive
• Set permissions in VSL so each iPhone and iPod touch can control only one specific aux mix
• Available free from the Apple App Store

Studio Magic Plug-In SuiteAlong with the device, you'll receive complementary access to PreSonus' Plug-in Suite for Mac and Windows, which includes seven useful plug-ins in VST, AU, and AAX formats. Here you'll find the SPL Attacker, which uses the same algorithms as their Transient Designer. You'll also get the Maag Audio EQ2, which boasts a well-regarded, high-frequency air band useful for adding sparkles to vocals, among other things. A Lexicon reverb, Eventide Harmonizer, Eventide Stereo Room, and bundle of physically modeled instruments from Arturia round out the suite.PreSonus Exchange

• Registered users of PreSonus' Web-connected Studio One DAW can easily and conveniently swap presets, effects chains, MIDI files, and soundsets, without leaving the program
• Users can upload to Exchange using a Web portal and can access online files from directly within the searchable Studio One 2 file browser, including audio preview
• Just drag-and-drop from the browser, and Exchange automatically downloads the resources and loads them into your Song
• Exchange users will be able to rate and comment on shared resources, so you can quickly identify what fellow users like and can share your experiences - PreSonus has implemented an approval process to protect users from problematic downloads.
• PreSonus Exchange is a free service for registered Studio One users with licensed accounts and works with Studio One Artist 2, Producer 2, and Professional 2
• Along with Exchange, Soundset Builder is a free extension to Studio One that can be downloaded via Exchange
• With Soundset Builder, any folder in the file browser can be made into a Studio One soundset, complete with a name, description, icon, and URL
• An excellent way to create and share packages of content, including audio loops, MIDI loops, presets, and more
• Soundset Builder installs into Studio One quickly and easily by drag-and-drop

Items Included

• PreSonus StudioLive 16.0.2 Performance & Recording Digital Mixer
• Power Cord
• Capture, Studio One Artist Recording & Production Software
• Virtual StudioLive Control Software
• Studio Magic Plug-In Suite (Download)
• 1 Year Warranty
