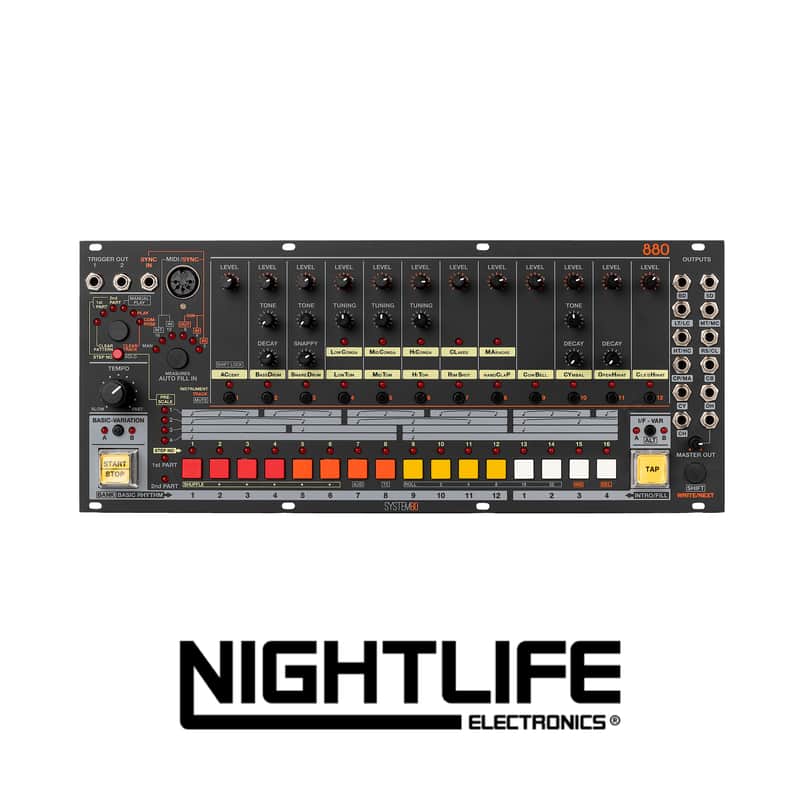

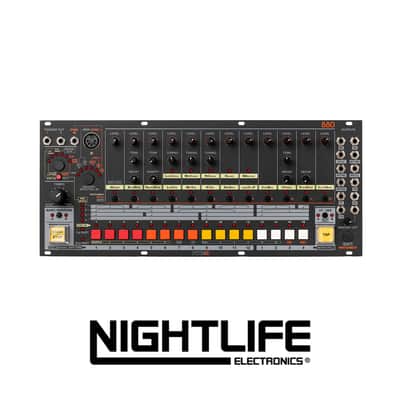

System80 810 MK2 - Module

The System80 880 is a recreation of the classic analog drum machine of the 1980s reformatted into a 60 HP Eurorack module.  It couples the 16 analog drum voices of the original to an enhanced TR-style step sequencer.

• Width: 60HP
• Depth: 28mm
• Power: 110mA @ +12V / 70mA @ -12V

 Features:

• 16 analog drum voices (6 single voices, 5 switchable dual voices) with global accent
• Pattern sequencer with 1-32 steps
• 12 banks of 16 patterns
• 12 rhythm tracks
• Shuffle and roll modes
• External MIDI triggering of drum voices
• 11 individual drum voice outputs + master output with volume control
• 2 assignable trigger outputs
• External sync via MIDI clock, DIN Sync or clock pulse.
