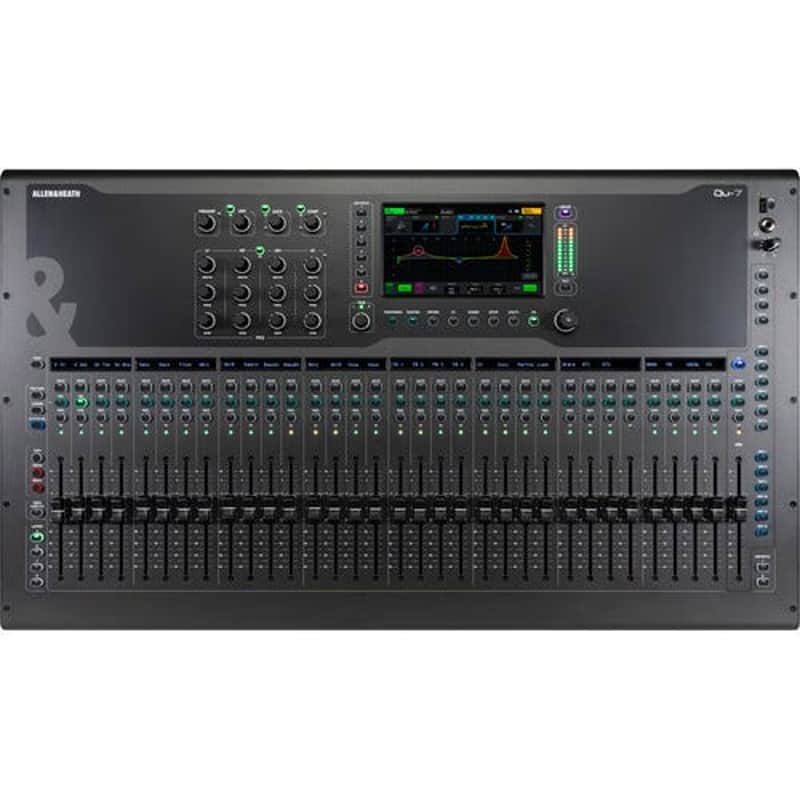

Allen & Heath AH-QU-7 36-Channel / 12-Bus Digital Mixer

Professional Digital Mixing for Studio and Live Sound
The Allen & Heath Qu-7 is a high-performance 32-channel digital mixer designed for audio engineers and sound professionals who need a powerful, streamlined mixing solution for studio and live environments. With 32 microphone preamps, a 7” capacitive touchscreen, and extensive routing options, this mixer offers exceptional control and audio quality. It also features a 32×32 USB audio interface, SD-card multitrack recording, and compatibility with Allen & Heath’s Everything I/O system, making it an ideal choice for scalable, flexible system configurations.

Advanced FPGA Core with Pristine Audio Quality
At the heart of the Qu-7 is Allen & Heath’s 96kHz XCVI FPGA engine, delivering lightning-fast processing with ultra-low latency. The newly refined 96 kHz AD/DA converters and upgraded mic preamps ensure audio clarity, whether you’re capturing live vocals, instruments, or full-band mixes. The mixer supports up to 38 input channels and 12 flexible mix outputs, giving engineers the headroom and routing flexibility needed for complex productions.

Workflow Focused with Touchscreen and Motorized Faders
The Qu-7 is designed to enhance usability with a vivid 7” capacitive touchscreen, 33 motorized faders, and 8 SoftKeys for fast access to frequently used functions. Engineers can easily monitor channel names, levels, and types using built-in channel displays and color-coded LED meters. Customizable layers and intuitive navigation streamline mixing in dynamic live environments, corporate AV installs, and studios.

Comprehensive Recording and Playback Options
This digital mixer includes a multitrack 32×32 USB-C audio interface for direct DAW integration, an SD card slot supporting 32-channel recording at 48kHz, and USB-A stereo playback/recording capabilities. Whether you’re archiving a live show, sending multitrack to your DAW, or using USB playback for backing tracks, the Qu-7 simplifies your recording workflow.

Dante and Everything I/O System Compatibility
With its SLink port and 128×128 digital patching, the Qu-7 seamlessly connects to the Everything I/O ecosystem. Users can expand input/output capabilities with stage boxes or interface with other Allen & Heath consoles. Although the Qu-7 does not include onboard Dante, it can integrate into Dante-enabled setups using appropriate expansion gear, providing even greater system flexibility.

DEEP Processing, Gain Assistant, and Feedback Tools
Engineers benefit from built-in DEEP Processing options inspired by the Allen & Heath dLive series, providing pro-grade EQ, dynamics, and effects. The Gain Assistant automatically sets optimized input levels, while the Feedback Assistant detects and removes problematic frequencies across up to 16 filters per output. These tools reduce setup time and improve mix stability in unpredictable environments.

Perfect for Installations and Touring Rigs
With a 12V lamp socket, AES3 digital output, 33 motorized faders, and 20 XLR outputs, the Qu-7 is a versatile addition to permanent installs or touring rigs. It supports remote mixing via Qu-MixPad (for engineers) and Qu-You (for performers), allowing remote control of monitor mixes and front-of-house settings using iOS, macOS, Windows, or Android devices.
