Swisher Machine 2025 - Tobacco Brown Sunburst

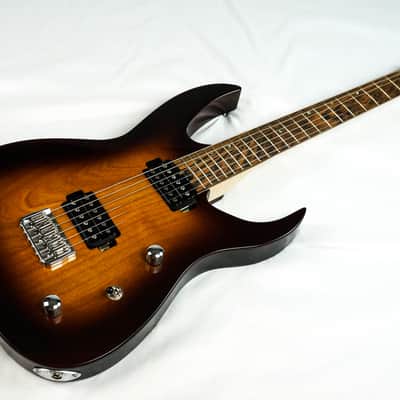

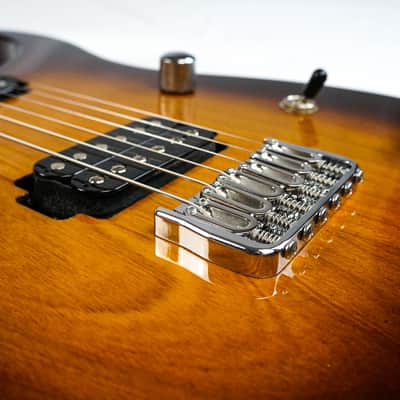

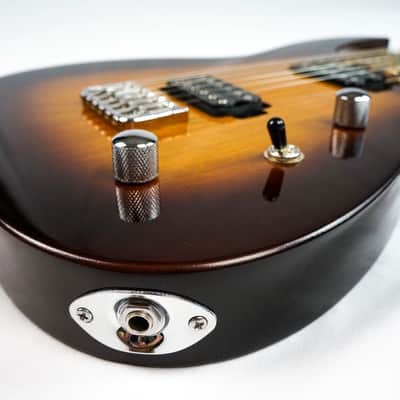

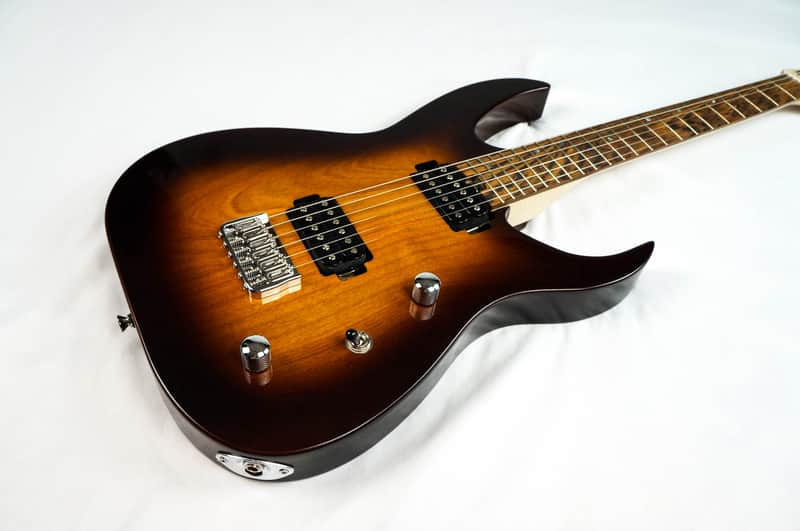

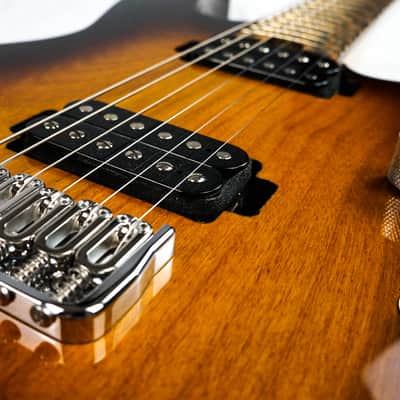

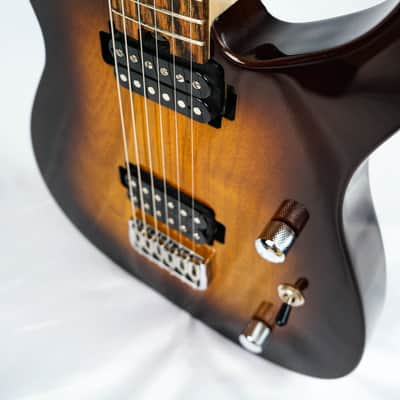

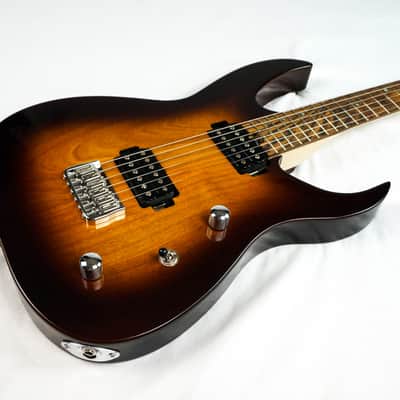

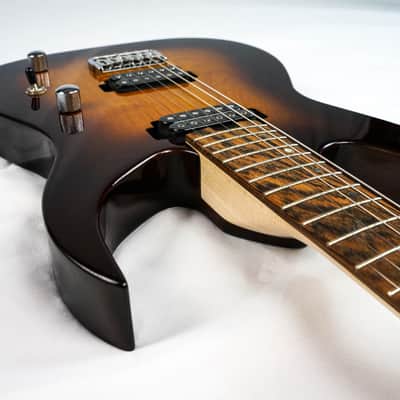

This is a right handed solid body electric guitar made from alder and finished in a Tobacco Sunburst finish. The grain is visible through the finish. This guitar features set-neck construction. The body is 1.75 inches thick and was hand shaped on a sander with a ¼ round edge all the way around. The total weight of the guitar is 6.4 pounds. It’s a string through body with a HipShot chrome hardtail bridge. The hardware is also all chrome. The pickup configuration is a humbucker in the neck position and a humbucker in the bridge. I wound these pickups myself and they measure out as follows; the neck pickup has ALNICO 5 magnets and reads at 9.1k and the bridge pickup also has an ALINCO 5 magnet and reads at 14.1k. The neck pickup sounds pretty clean by itself, and the bridge pickup is very warm and gritty. The electronics are wired with 1 volume 1 tone and a three way selector switch. The neck is maple with a 9.5” radius, 22 frets, a bocote fretboard and abalone position markers. The truss rod is a dual action spoke type and located at the heel end. My necks are all hand carved and the profile is considered a “C” shape. This one measures .889” (22.58mm) at the 1st fret and .936” (23.77mm) at the 12th fret, from the back you can see that the fretboard is part of the profile. The frets are Medium Nickel-Silver .084" wide by .039" high. The tuners are chrome HipShot open gear staggered inline type. The nut was hand shaped from bone.

My guitars are set up to play with great action. The frets have been leveled, crowned and polished. The string height at the 1st fret is .012” and at the 12th fret it’s .060”. You’ll notice how smooth they are right away.

Body - Alder

Neck - Maple / Bocote fretboard

Fretboard Radius - 9.5"

Frets - Medium Nickel-Silver .084" wide by .039" high

Truss Rod - Dual Action adjusted at heel (Spoke)

Nut - Bone

Neck Pickup - Humbucker ALNICO 5 Magnet 9.1k

Bridge Pickup - Humbucker ALNICO 5 Magnet 14.1k

Tuners - HipShot open gear inline tuners Chrome

Bridge - Hipshot bridge Chrome

Electronic configuration - Pickup Selector / 1 Volume / 1 Tone

Case - Standard Hardshell
