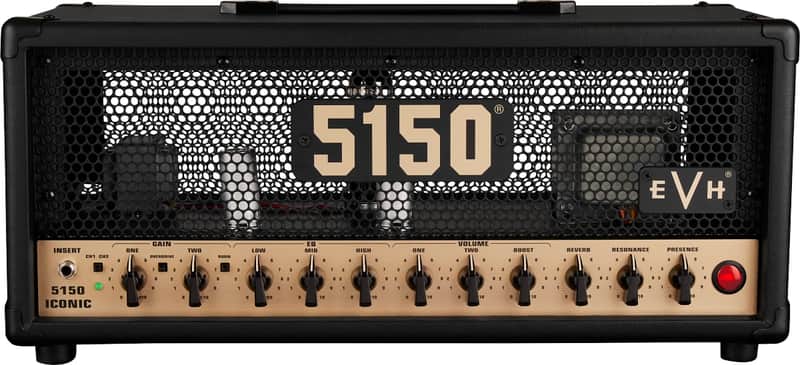

EVH 5150® Iconic® Series 15W EL34 Head, Black...

The EVH® 5150® Iconic® Series satisfies the needs of gigging and recording guitarists
craving that powerful EVH tube tone, but at a more affordable price. Evolving from the
revered EVH 5150III® amplifiers, the Iconic Series delivers the signature sound and
growling gain that Eddie Van Halen made famous throughout his groundbreaking career.

Designed by renowned amp engineer, James Brown, the 5150® Iconic® Series 15-watt Head is
powered by one EL34 power tube and voiced by a complex, multi-stage hybrid preamp section
anchored by a duet of ECC83 tubes providing all the fire power the modern guitarist needs.

Punching above its weight, this head features two channels with an extra voicing on each
for even more versatility. The Green channel boasts an overdrive button to run from clean
tones to increased gain, while the Red channel’s burn button adds fiery crunch that’s ideal
for blistering leads. Each channel houses its own gain and volume controls, allowing for
level-matching the volume when switching between the clean and high gain channels. The Boost
control allows you to add another 10Db of foot-switchable volume to your tone - perfect for
ensuring your solos cut through the mix.The control panel also includes shared EQ
(Low, Mid and High), global resonance and presence knobs to adjust the low- and high-end aspects
of your tone, and a global reverb to add the perfect amount of bounce and decay for any room.

Other features include a two-button footswitch, effects loop, dual parallel speaker output jacks,
¼ power switch to reduce wattage - allowing you to crank the amp and still preserve tone but without
destroying your neighbor’s solitude, and a speaker-emulated DI XLR with power amp mute for accurate
all-tube EVH tone for recording direct or using through any PA system. Sporting sophisticated and
distinctive EVH style, the 5150 Iconic Series 15-watt Head is wrapped in Black textured vinyl with
a brushed gold anodized aluminum front panel and black steel grille featuring gold and black 5150
and EVH logo badges. This This tube head is finished off with a brushed gold anodized aluminum
control panel, vintage-style chicken-head knobs and molded black plastic top handle.

Features:

Electronics
Control Panel Channel 1: Gain w/ Overdrive Switch; Channel 2: Gain w/ Burn Switch; Shared Low, Mid, High EQ;
Channel 1/Channel 2 Volumes; Global Master Boost; Global Reverb, Resonance and Presence
Inputs One - 1/4"
Auxiliary Input1/8 in (3.5 mm) Stereo
Headphone Jack1/8” Stereo Speaker Emulated Headphone Output
Line Out One - (1/8" Stereo)
Channels Two - Clean/Overdrive and Lead/Burn
Effects Reverb
Effects Loop1/4" (Send/Return)
Connection Type1/4"
Voltage120V
Wattage 15 Watts

Accessories
Included Accessories 2-Button Footswitch, IEC Power Cable, Owner's Manual
Footswitch 2-Button Footswitch Included
