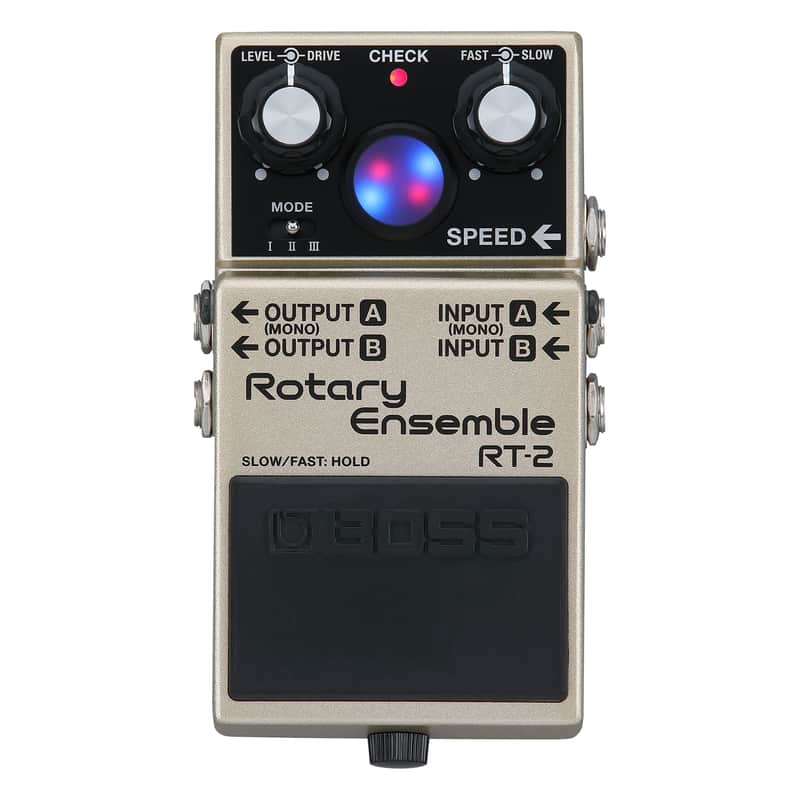

Rotary Pedal

Features

Sample Rate

• 48 kHz

AD Conversion

• 24 bits + AF method
• AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.

DA Conversion

• 32 bits

Nominal Input Level

• INPUT A (MONO), INPUT B: -20 dBu

Maximum Input Level

• INPUT A (MONO), INPUT B: +7 dBu

Input Impedance

• INPUT A (MONO), INPUT B: 1 MO

Nominal Output Level

• OUTPUT A (MONO), OUTPUT B: -20 dBu

Maximum Output Level

• OUTPUT A (MONO), OUTPUT B: +7 dBu

Output Impedance

• OUTPUT A (MONO), OUTPUT B: 1 kO

Recommended Load Impedance

• OUTPUT A (MONO), OUTPUT B: 10 kO or greater

Bypass

• Buffered bypass

Controls

• SLOW knob
• FAST knob
• DRIVE knob
• LEVEL knob
• MODE switch
• Pedal switch

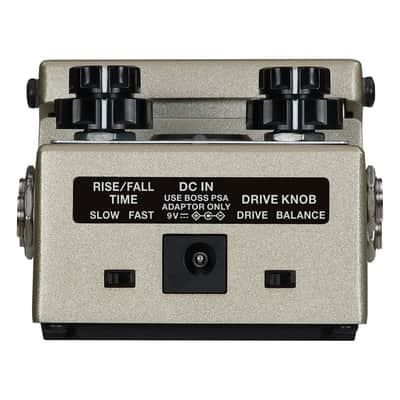

• RISE/FALL TIME switch
• DRIVE KNOB switch

Indicator

• CHECK indicator (Used for indication of Tempo and check battery)
• VIRTUAL ROTOR

Connectors

• INPUT A (MONO) jack, INPUT B jack, OUTPUT A (MONO) jack, OUTPUT B jack: 1/4-inch phone type
• CTL/EXP jack: 1/4-inch TRS phone type
• DC IN jack

Power Supply

• Alkaline battery (9 V, 6LR61 or 6LF22, commercially available)
• AC adaptor (PSA series: sold separately)

Current Draw

• 115 mA
• Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.)
• Alkaline : Approx. 2.5 hours

Dimensions

• 73 (W) x 129 (D) x 59 (H) mm
• 2-7/8 (W) x 5-1/8 (D) x 2-3/8 (H) inches

Accessories

• Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
• Dry battery (9 V, 6LR61 or 6LF22)

Options (sold separately)

• AC adaptor: PSA series
• Footswitch: FS-5U
• Dual footswitch: FS-6, FS-7
• Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
• 0 dBu = 0.775 Vrms
