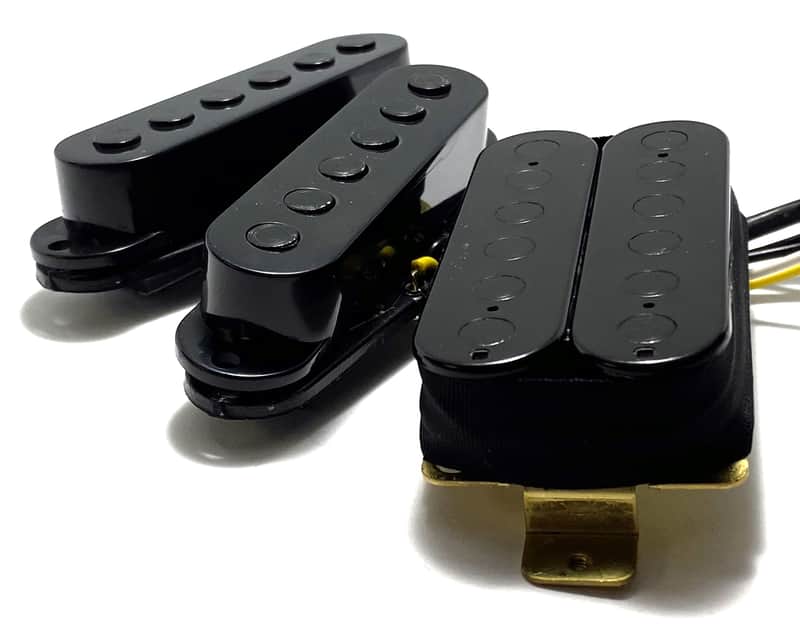

Dragonfire HSS Mixed Hum-Single-Single Pickup Set ft. Oversized Black Response Poles Bridge Humbucker + Middle & Neck Singles

Dragonfire Onyx HSS Set, Humbucker-Single-Single Mixed Pickups Featuring Onyx Bucker Bridge Humbucker + Onyx Single Coil Strat Middle & Neck Pickups ~ 6 String Passive Ceramic Pickup Set, Black with Black Poles

Check our Reverb Store for this set style in other configurations and colors including green, orange, pink, purple, red, teal, white and zebra options. Contact us with any questions.

~~Bridge Pickup Information & Approximate Measurements~~

*Onyx Buckers ft. Large, Dark Flat Top Slug Style Exposed Poles

*Superior Coverage, Clarity & Articulation

*Ultra-Modern Construction & Performance

*4 Conductor Wiring (4 Wire Pickup Design)

*Standard Pole Spacing: 52mm

*Output: Wound to ~16.9K

*Pickup Length: 68mm (84mm including mounting flanges)

*Pickup Width: 36mm

*Pickup Depth: 16mm (22mm including mounting flanges)

*Mounting Screw Spacing: 78mm

~~Middle & Neck Pickup Information & Approximate Measurements~~

*Onyx Strat Single w/ Specialty Large Dark Black Poles

*Enhanced Articulation, String Response and Modern Performance

*Flat Top Oversized 6.5mm Slug Style Black Non-Staggered Poles

*52mm Standard Strat Single Coil Pole Spacing

*2 Conductor Wiring (2 Wire Pickup Design)

*Output: Wound to ~8K (Middle) & ~7.5K (Neck)

*Pickup Length: 69mm (82mm including mounting flanges)

*Pickup Width: 18mm

*Pickup Depth: 17mm (22mm including mounting flanges)

*Mounting Screw Spacing: 76mm

~~Installation Information~~

Pickup wire color code information will be included with your order. Due to the vast and varied nature of possible components and set-up styles, we do not provide specific information or diagrams for installation. You should be able to use the basic information we provide to match up with any diagram or instructions you choose to use.

Please note that different manufacturers and pickup styles use different wire color code systems. It is important to use the Dragonfire wire color codes provided with your order.

Installation requires soldering and compatible system. We provide enough pickup lead wire to complete installation wiring in standard usage situations.

Pickups are wax potted for squeal reduction / avoidance – note that noise and interference can come from sources other than your pickup.

If you’d like to update your wiring and have us create a new wiring system for you, check out our Wiring Harnesses.

~~Purchase Notes~~

Allow and expect variation in color due to photo and monitor settings, perception, lighting, as well as natural product variance. Color descriptions indicate color of item, not material.

Detailed instructions for installation are not included. You should be able to use basic knowledge of wiring with the diagram or instructions of your choice.

Ask any questions regarding options, measurements, installation requirements, special requests, or anything else prior to purchase.
