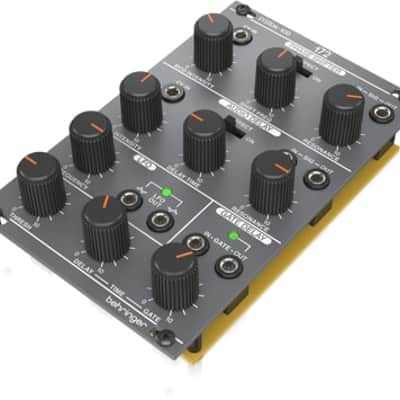

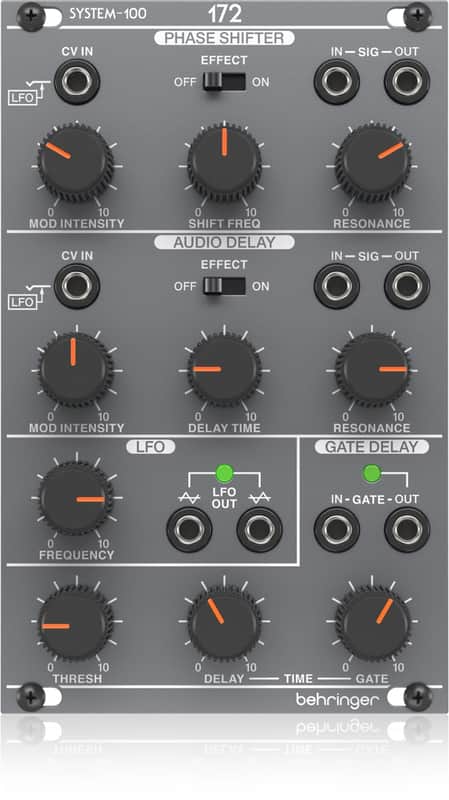

This is the Behringer SYSTEM 100 172 PHASE SHIFTER/DELAY/LFO. An authentic reproduction of the original “System 100M” circuitry from the 80s that can fit in a standard Eurorack case. The best part? It’s at a very affordable price. Mix the 172 PHASE SHIFTER/DELAY/LFO in with your existing rig or start your modular synth journey from here. Either way you’re sure to have a lot of fun.

• Amazing Phase Shifter/Delay/LFO module from the '80s

• Authentic reproduction of original "System 100M" circuitry

• 6-step phase shifter with mod intensity, shift frequency and resonance controls

• Analog BBD delay with mod intensity, delay time and resonance controls

• Gate delay with threshold, delay time and gate time controls for creative pulse shaping

• LFO with frequency control plus normal and inverted output for ensemble and stereo effects

• 12 controls and switches give you real-time access to all important parameters

• Eurorack specs: 16 HP, 50 mA +12 V, 50 mA -12 V

Phase Shifter

The 172 PHASE SHIFTER/DELAY/LFO comes with a 6-step phase shifter with Modulation Intensity, Shift Frequency and Resonance Controls. Adjusting these parameters can vary the phase effect from a slight warble to an intense swirling effect that add a sense of movement to your music.

Delay

The Analog BBD Delay on the 172 also features independent Modulation intensity, Delay Time and Resonance controls. These controls allow you to dial in some amazing chorus and flanging effects that give spaciousness to your tone.

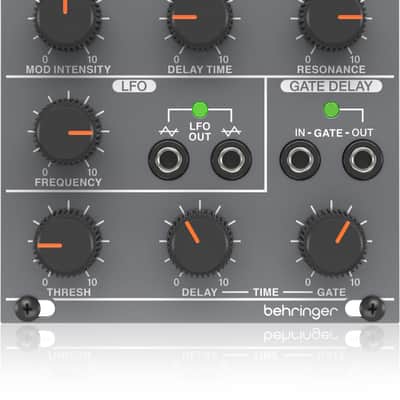

LFO and Gate Delay

You can control when a gate triggers by plugging in a signal to the Gate Delay input on the 172. Here, you can control the gate and delay time for some creative pulse shaping. A frequency control on the 172’s LFO allows you to change the pitch while the normal and inverted output jacks are ideal for creating ensemble and stereo effects.

Inputs Phase shifter signal input   Type

3.5 mm TS jack, AC coupled

Impedance

70 kΩ, unbalanced

Max input level

+16 dBu

Phase shifter CV input   Type

3.5 mm TS jack, DC coupled

Impedance

>50 kΩ, unbalanced

Max input level

+10 V

CV range

0 V to +10 V

Audio delay signal input   Type

3.5 mm TS jack, AC coupled

Impedance

15 kΩ, unbalanced

Max input level

+20 dBu

Audio delay CV input   Type

3.5 mm TS jack, DC coupled

Impedance

>70 kΩ, unbalanced

Max input level

+10 V

CV range

0 V to +10 V

Gate input   Type

3.5 mm TS jack, DC coupled

Impedance

47 kΩ, unbalanced

Max input level

+10 V

CV range

0 V to +10 V

Outputs Phase shifter signal output   Type

3.5 mm TS jack, DC coupled

Impedance

1 kΩ, unbalanced

Max output level

+18 dBu

Audio delay signal output   Type

3.5 mm TS jack, DC coupled

Impedance

1 kΩ, unbalanced

Max output level

+16 dBu

LFO output   Type

2 x 3.5 mm TS jacks, DC coupled

Impedance

1.2 kΩ

Max output level

10 V p-p

Gate output   Type

3.5 mm TS jack, DC coupled

Impedance

500 Ω

Max output level

+5 V

Controls Phase shifter effect switch

Off / on

Phase shifter mod intensity

-∞ to unity gain

Phase Shift frequency

200 Hz to 8 kHz

Phase shifter resonance

Off to maximum resonance

Audio delay effect switch

Off / on

Audio delay mod intesity

-∞ to unity gain

Audio delay time

1 ms to 7 ms

Audio delay resonance

Off to maximum resonance

LFO frequency

0.02 Hz to 10 Hz

Gate Threshold

0.3 V to 5 V

Gate delay time

0.3 ms to 6 s

Gate time

0.3 ms to 6 s

Power Power supply

Eurorack

Current draw

60 mA (+12 V), 60 mA (-12 V)

Physical Dimensions

44 x 81 x 129 mm

(1.7 x 3.2 x 5.1")

Rack units

16 HP

Weight

0.19 kg (0.42 lbs)
