Carparelli Les Paul Wiring Harness — CTS 500K Long Shaft Volumes, Push/Pull Tone Coil-Splits, Emerson 0.022µF Caps

Upgrade your Les Paul with a boutique-grade harness from Carparelli Guitars. This build pairs CTS 500K long-shaft volumes with push/pull tone pots so you can split each humbucker on demand—fat LP punch to single-coil sparkle in a click. Emerson 0.022µF capacitors deliver a smooth, musical tone sweep. Every harness is cleanly soldered, neatly dressed, and tested before it leaves our bench.

Specifications

• 2 × CTS 500K Long-Shaft Volume Pots (US-spec, split shaft, 24-spline)
• 2 × 500K Push/Pull Tone Pots (individual coil-splits)
• 2 × Emerson 0.022µF Capacitors (matched pair)
• 1 x Switchcraft Toggle 3way
• 1 x PureTone Jack
• Cloth wire & heat-shrink where appropriate
• Pre-tinned leads; wiring diagram included
• Hand-wired in Ontario, Canada

Fit & Requirements

• For carved-top LPs requiring long-shaft pots; 3/8" (≈9.5mm) holes
• Coil-split function requires 4-conductor humbuckers
• CTS shafts are 24-spline (US-spec knobs recommended)
• Some Epiphone/metric guitars may require light reaming and US-spec knobs

Build Time & Shipping

Made to order in 2–4 business days. Ships securely from Canada.

What’s in the Box

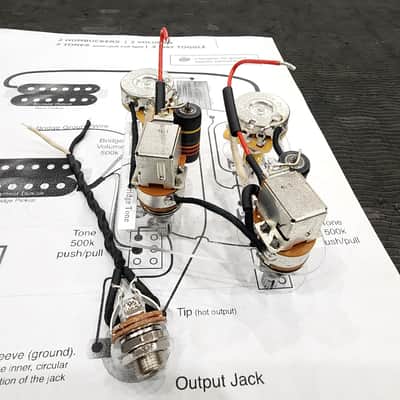

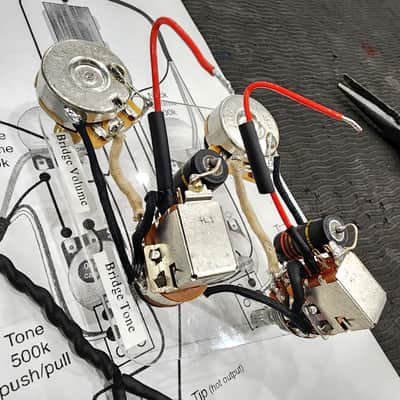

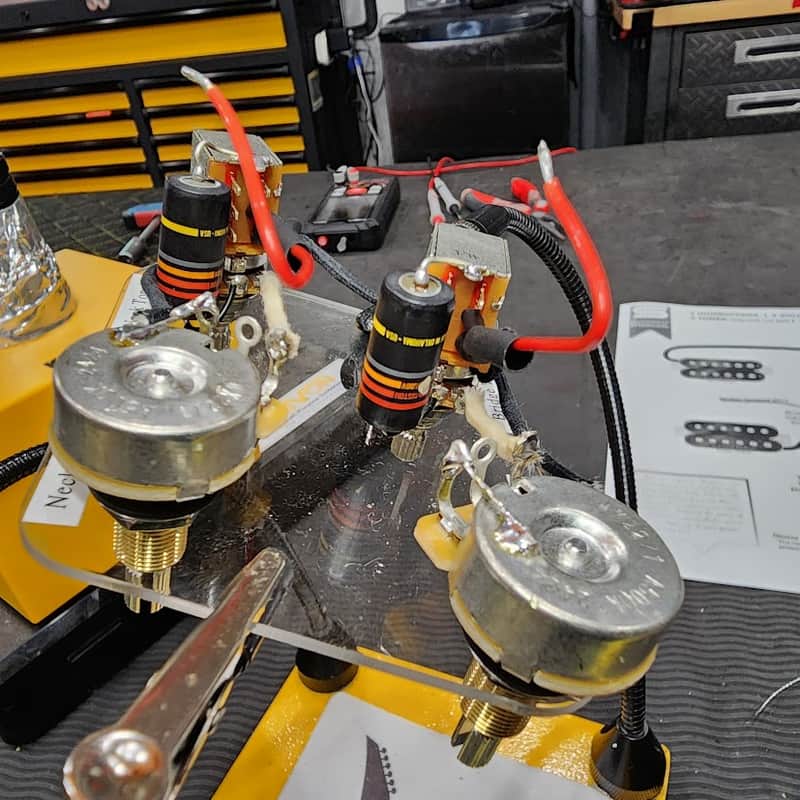

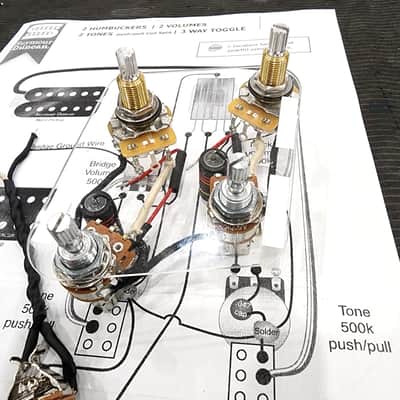

• Fully assembled LP harness (pots + caps + interconnects)
• 1 Pre Wired Switchcraft 3way Toggle

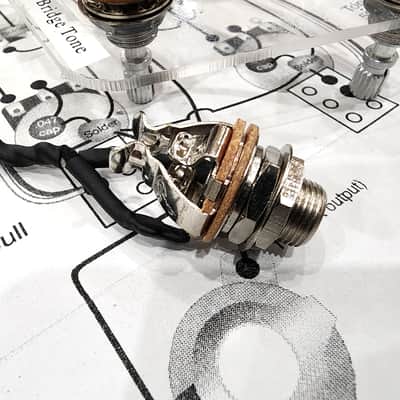

• 1 Pre Wired Puretone Input Jack

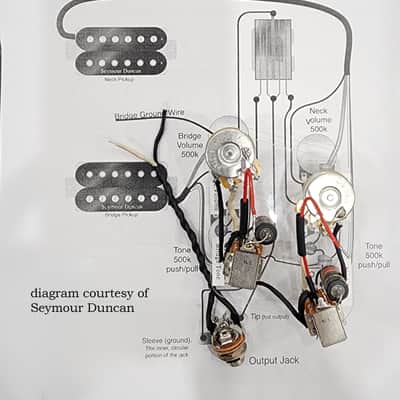

• Wiring diagram & quick-start notes
