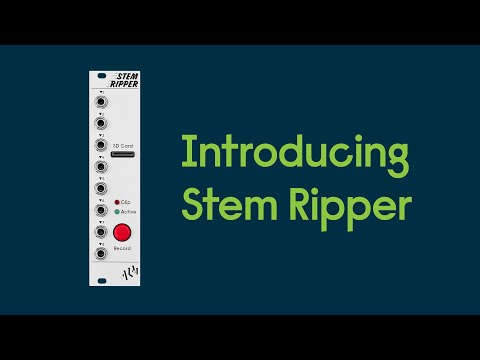

ALM Busy Circuits Stem Ripper 8 Channel Audio Recorder

The ALM Stem Ripper is a compact 8 channel audio recorder designed for immediate full patch recording without the need for external hardware. Use it to capture all audio stems of a patch with ease.
Patch stems are recorded directly to a micro SD card which can then be easily transferred to a computer to mix, edit or archive patches. Each input is recorded as an individual track in a 16bit 44.1kHz multichannel date stamped WAV file.
Record time is limited only by SD Card size. Two additional tracks within the output WAV contain a configurable stereo mix down of the inputs. The module has large 20Vpp per input headroom with LED clip indication if exceeded.
An optional 2HP ’Thru’ output expander duplicates the 8 inputs to a row of unbuffered out- puts, eliminating the potential need for stacking patch cables at the expense of more case real estate.
A 64Gb SD card is included with the unit.

• Simple quick full patch audio recording.
• 8 independent 16 bit 44.1kHz audio tracks.
• Direct recording to a micro SD card with recording time limited only by SD card size.
• Multichannel WAV file output for easy drag and drop functionality.
• Additional fixed stereo mix tracks with configurable levels.
• Accurate automatic date stamping of recordings with battery backed clock.
• 20 Vpp headroom per input with LEDs for clip indication and recording status.
• Optional ’Thru’ expander that allows signal to pass unbuffered through the Stem Ripper.
• Up to 1Tb sized SD cards supported.
• Skiff friendly with reverse power protection.
• 2 Year Warranty.

• 6 HP 32 mm deep
