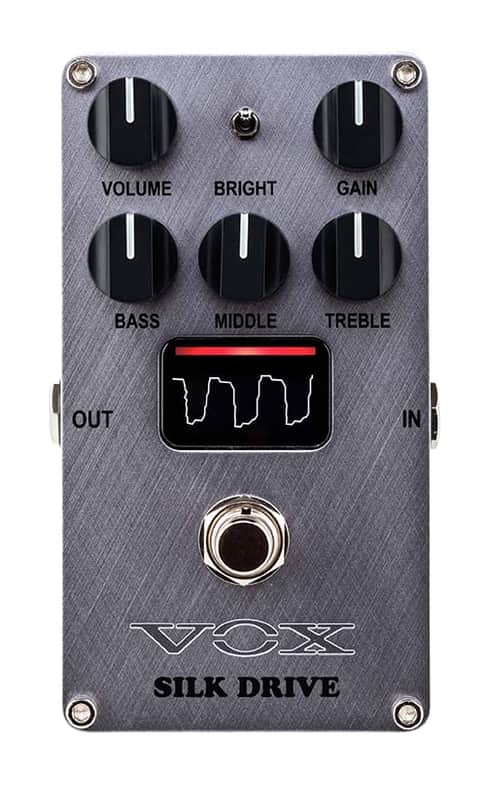

The VALVENERGY series offers four valve distortion pedals that provide the feel and harmonics of a tube amp, using an all-analog signal path and Nutube.

This series offers four pedals, each inspired by a classic amp sound. The three modes found in each pedal offer standard use, line-level preamp output, and an analog cab sim output. In addition, the mint channel switching mode allows two or model VALVENERGY pedals together.

Valve overdrive pedal with all-analog signal path
Harmonically rich boutique overdrive tones
Powered by Nutube
Three output modes for use as a pedal or preamp
Selectable analog cabinet simulator
OLED display with oscilloscope
Active EQ to shape your signal

Specifications Inputs/Outputs

INPUT jack, OUTPUT jack, DC9V jack, LINK jack

Controls

GAIN knob, VOLUME knob, TREBLE knob, MIDDLE knob, BASS knob, BRIGHT switch, MODE switch

Power Supply*

1 x 9V alkaline battery or 9V center negative AC adaptor

*: The use of an AC adaptor is recommended as the unit’s power consumption is relatively high. Should you prefer to use batteries, please use the alkaline type.

Current Consumption

95 mA

Battery Life

Approx. 2 hours (When using the alkaline battery. This figure will vary depending on the actual conditions of use.)

Dimensions (W x D x H)

72 mm x 120 mm x 55 mm/2.83″ x 4.72″ x 2.17″ (Including the knob and foot rubber)

Weight

350 g/12.35 oz. (Including the battery)

Included Item

1 x 9V battery for checking operation

.--- .-
