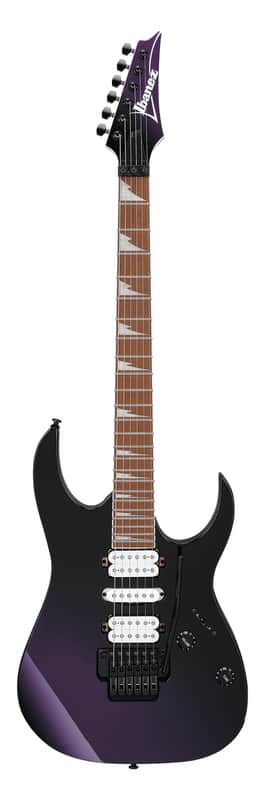

Ibanez RG470DX Electric Guitar, Tokyo Midnight
This seller has not set a shipping cost for Portugal. Please contact them to ask about shipping.
Only 1 left
Grab it before it's gone
14-Day Return Policy
Enjoy peace of mind with your new gear
Our users rate Reverb
SPECS
Neck type: Wizard III / Maple neck
Top/back/body: Meranti body
Fretboard: Jatoba fretboard / Sharktooth inlay
Fret: Jumbo frets
Number of frets: 24
Bridge: Edge-Zero II bridge
String space: 10.8mm
Neck pickup: Quantum (H) neck pickup (Passive/Ceramic)
Middle pickup: Quantum (S) middle pickup (Passive/Alnico)
Bridge: pickup Quantum (H) bridge pickup (Passive/Ceramic)
Factory tuning: 1E,2B,3G,4D,5A,6E
Strings: D'Addario® EXL120
String gauge: .009/.011/.016/.024/.032/.042
Nut: Locking nut
Hardware color: Black
NECK DIMENSIONS
Scale : 648mm/25.5"
a : Width 43mm at NUT
b : Width 58mm at 24F
c : Thickness 19mm at 1F
d : Thickness 21mm at 12F
Radius : 400mmR
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
DESCRIPTION
When the pickup selector switch is in neck position, the neck humbucker is selected. When the switch is between neck and center position, the bridge side of the neck humbucker and the center pickup are selected. When the switch is in center position, the center pickup is selected. When the switch is between the center and bridge position, center pickup and the neck side of the bridge humbucker are selected. When the switch is in bridge position, the bridge humbucker is selected.
CONTROLSDESCRIPTION

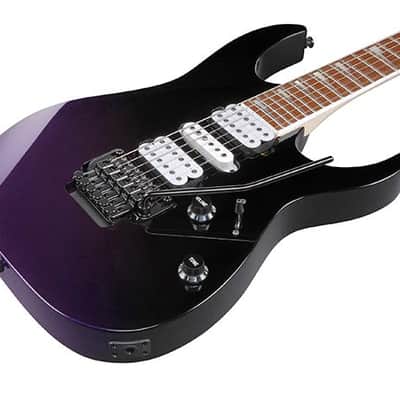

With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.

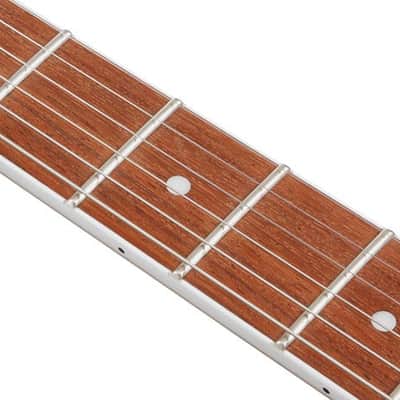

Features Jatoba FretboardJatoba has a reddish brown color which produces a rich mid range with a crisp high end.
Mono-unit output jackThe mono-unit output jack is made of solid, durable material and is a single piece to avoid unwanted movement and loosening of the jack, which leads to contact failure or disconnection. This innovation allows for long term playing enjoyment and minimal maintenance.
Edge-Zero II tremolo bridgeThe Edge Zero II bridge design features a lower profile tremolo for playing comfort and stud lock function for stable tuning.
Quantum pickupsThe Quantum pickups provide accelerated bass response for exceptionally fast tracking of high-speed staccato riffing with crushing mid range and precise high-end articulation.
Wizard III Maple neckIbanez's thin, flat and fast Wizard neck is strong and sturdy and offers unlimited playability and features a two-octave 24-fret fretboard for a wide tonal range.
| Condition | Brand New (New) Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more |
|---|---|
| Brand | |
| Model |
|
| Finish |
|
| Categories | |
| Color Family |
|
| Series | |
| Body Shape |
|
| Right / Left Handed |
|
| Fretboard Material |
|
| Pickup Configuration |
|
| Number of Strings |
|
| Neck Material |
|
| Offset Body |
|
| Finish Style |
|
| Bridge/Tailpiece Type |
|
| Body Type |
|
| Nut Width |
|
| Wood Top Style |
|
| Model Family | |
| Finish Features |
|
| Scale Length |
|
| Neck Construction |
|
| Number of Frets |
|
