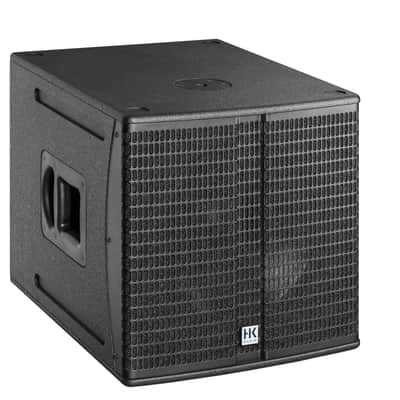

HK LINEAR-SUB-1500-A SUB Series 1200-Watt 15-Inch Active Subwoofer

LINEAR SUB-1500 A is a 15″ bass reflex subwoofer and a real powerhouse in a small package. A powerful punch, precise playback, and an impressive low end all the way down to 45 Hz make this active sub the ideal add-on for the LINEAR 3 mid/high units when dynamic and tight bass is required. It can also be used with LINEAR 5 mid/high units or as a bass extension to the ELEMENTS EASY BASE, SMART BASE, and LINE BASE systems.

Technical Data

• Max. SPL @ 10% THD: 130 dB half space (40 Hz – X-Over averaged).
• Max. SPL peak @ 10% THD: 132 dB half space.
• Frequency response +/-3 dB: 49 Hz – X-Over.
• Frequency response -10 dB: 45 Hz – X-Over.
• Power amp output (peak power): 1200 W.
• Amp type: Class D.
• Active protection circuits: Undervoltage-Protection, Thermoprotection, Short-Circuit-Protection, Overcurrent-Protection, Subsonic 24 dB/oct., Peak-Limiter.
• LF driver: 1x 15", 3" voice coil.
• Active crossover frequency: 100 Hz / 120 Hz variable with 24 dB/oct.

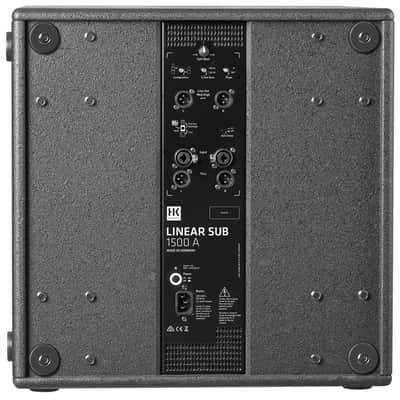

• Analog inputs: 2x XLR combo balanced.
• Analog outputs: 2x XLR Thru balanced, 2x XLR Mid/High Out.
• Input sensitivity: +4 dBu @ Gain center-notched.
• Mains connector: 1x IEC socket with V-Lock cord retainer.
• Power consumption: 3 A / 220-240 V (6 A / 100-120 V) nominal according to EN 60065.

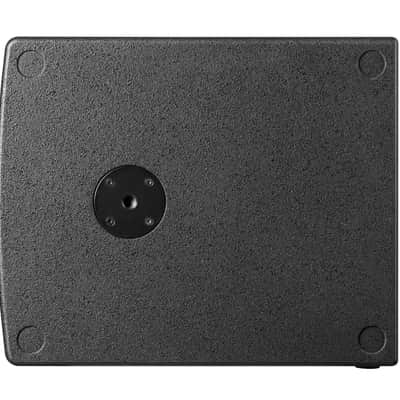

• Pole mount: 1x M20.
• Carrying handles: 2x MultiGrip.
• Housing: 16 mm MDF.
• Finish: Black acrylic enamel.

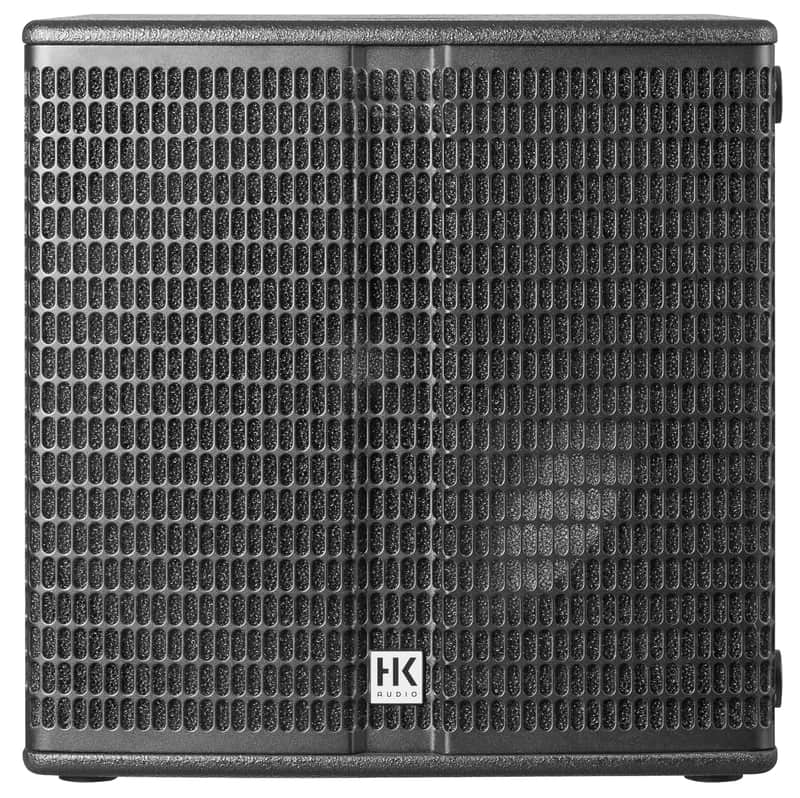

• Front grille: 2 mm metal grille backed with black acoustic foam.
• Dimensions (WxHxD): 48.5 x 48.5 x 59.5 cm / 19-3/32 x 19-3/32 x 23-27/64".
• Weight: 29.8 kg / 65.7 lbs.
