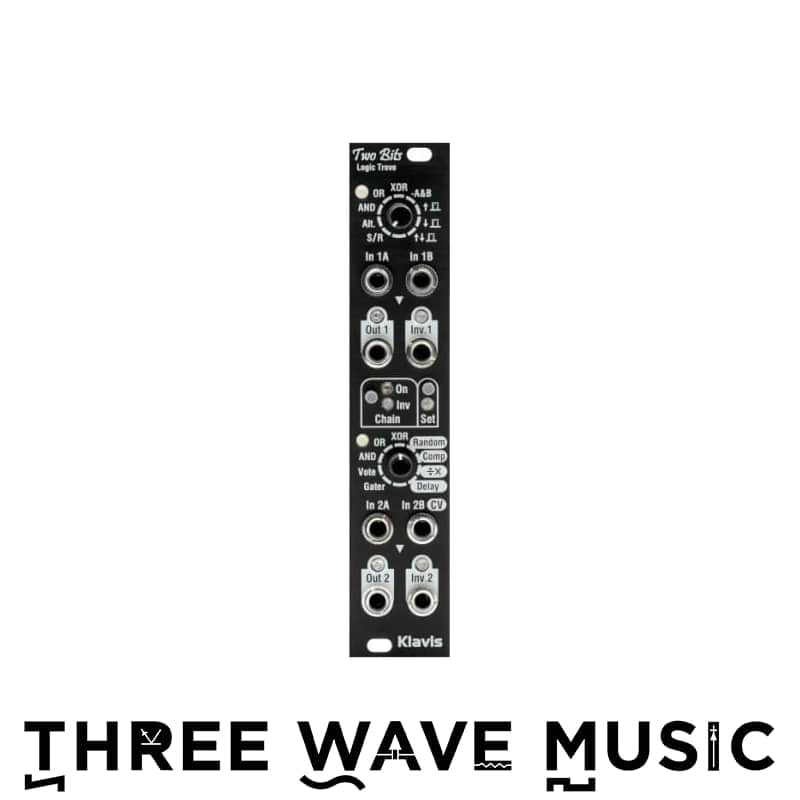

Klavis Two Bits (Black) - Dual Logic Processor with Chaining and CV Functions [Three Wave Music]

Two bits Dual logic processor with chaining and CV functions

• Two dual-input logic processors
• 15 different functions
• Simultaneously available normal and inverted outputs
• LEDs on all outputs
• Chaining optinally inverted by dedicated button with LEDs
• Chaining does not waste any input or output; an additional virtual input is created in the second section
• Functions with duration, voltage, percentage, and ratio are user editable.
• User settings are stored automatically
• Random pass, voltage comparator, clock mult/div and delay line functions allow CV control
• White LEDs next to the pots confirm the matching of knob position and function
• The outputs can be Ored by simple shorting in a multiple
• Firmware upgradeable by playing an audio file
• Low consumption, skiff-friendly & compact module
• Complements Klavis’ Logica XT with a varied feature set

Mechanical DimensionsmminchesEurorack Height 128.40 5.06 3HE Width 25.20 0.99 5HP Depth behind panel 21.00 0.83   Supply Supply railCurrent draw +12V 31mA -12V 1mA +5V 0mA
