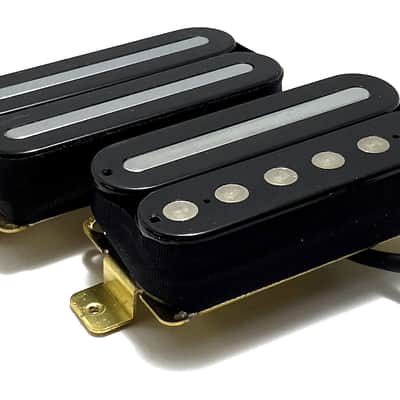

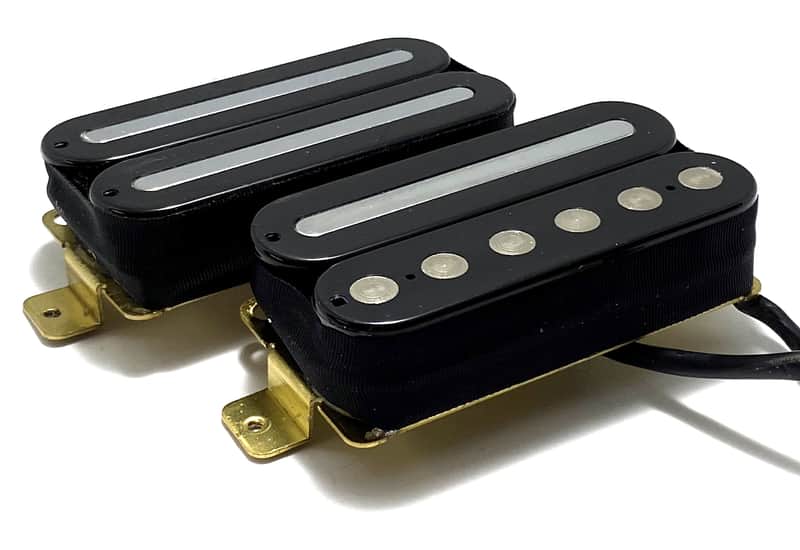

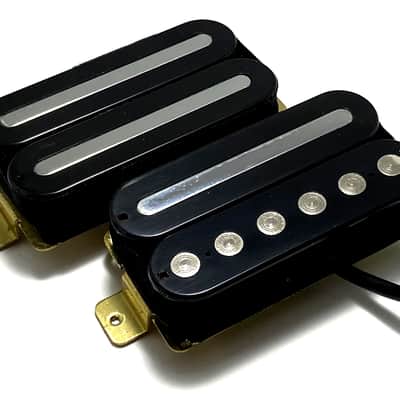

Thunder Rail Mixed HH Set, Thunder Bucker Bridge + Power Rail Neck Humbucker ~ Black with Chrome

Dragonfire Thunder Rail HH Set Featuring Thunder Bucker Bridge Humbucker + Phat Power Rail Neck Humbucker ~ Black with Chrome

6 String Passive Ceramic Humbucker Pickup Set ~ 4 Conductor Wiring (4 Wire Pickup Design) ~ Wax Potted for Squeal Reduction / Avoidance ~ Pickup Mounting Screws & Springs Included ~ Many Other Colors Available (see our Reverb Store for more options and contact us if you have any questions)

~~Bridge Pickup Information~~

*Thunder Bucker ½ Fat Power Rail + ½ Phat Oversized Pole Combo

*Complete Playability, Articulation & Responsiveness

*Hard Hitting, Aggressive & Edgy for Rock & Metal

*Phat Oversized Flat Top, Slug Style Exposed Polepieces

*Bar Style Thick / Wide / Flat / Flush Power Rail

*Output: Wound to ~16.6K

*Pickup Length: 68mm (84mm including mounting flanges)

*Rail Length: 55mm

*Pickup Width: 36mm

*Pickup Depth: 17mm (24mm including mounting flanges)

*Mounting Screw Spacing: 78mm

~~Neck Pickup Information~~

*Power Rail Humbucker w/ Thick & Wide Double Power Rails

*Double Rails for Outstanding String Response

*Output: Wound to ~10.1K

*Pickup Length: 68mm (84mm including mounting flanges)

*Rail Length: 55mm

*Pickup Width: 36mm

*Pickup Depth: 16mm (22mm including mounting flanges)

*Mounting Screw Spacing: 78mm

~~Installation Information~~

Pickup wire color code information will be included with your order. Due to the vast and varied nature of possible components and set-up styles, we do not provide specific information or diagrams for installation. You should be able to use the basic information we provide to match up with any diagram or instructions you choose to use.

Please note that different manufacturers and pickup styles use different wire color code systems. It is important to use the Dragonfire wire color codes provided with your order.

Installation requires soldering and compatible system. We provide enough pickup lead wire to complete installation wiring in standard usage situations.

Pickups are wax potted for squeal reduction / avoidance – note that noise and interference can come from sources other than your pickup.

If you’d like to update your wiring and have us create a new wiring system for you, check out our Wiring Harnesses.

~~Purchase Notes~~

Allow and expect variation in color due to photo and monitor settings, perception, lighting, as well as natural product variance. Color descriptions indicate color of item, not material. Ask any questions regarding options, measurements, installation requirements, special requests, or anything else prior to purchase.

Detailed instructions for installation are not included. You should be able to use basic knowledge of wiring with the diagram or instructions of your choice.
