Key Features

• 4 x Onyx Preamps
• British-Style Perkins 3-Band EQ
• Premium Analog Circuitry
• Ultralow-Noise Design
• Record & Playback to/from Mac/PC via USB
• Studio Command Full-Color Display
• Robust Digital Effects Engine
• Dedicated Control Room Output
• 12-Segment Stereo Meters
• Includes Powerful Software and Plug-Ins

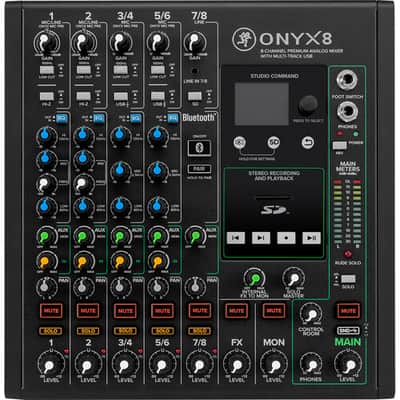

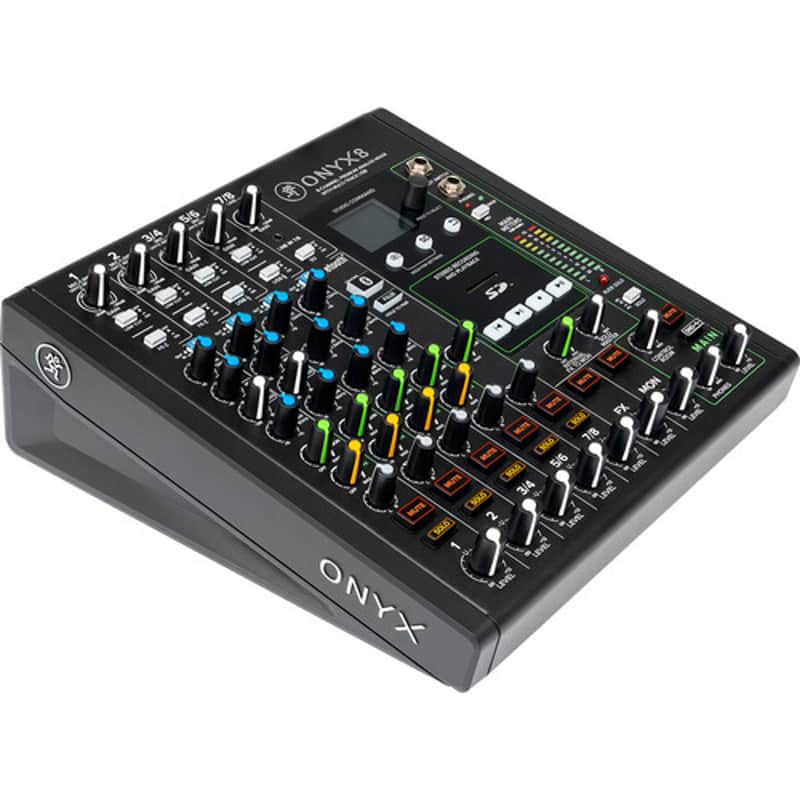

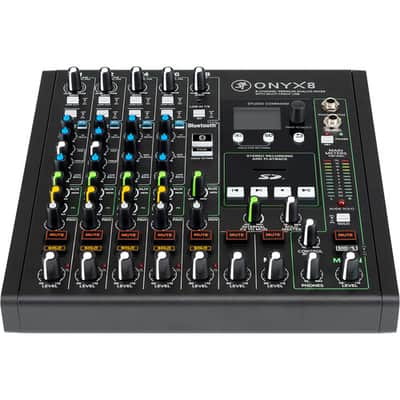

Musicians, artists, engineers, and broadcast studios looking for a professional-quality compact mixing solution for live audio, home recording, and content creation should look no further than the Mackie Onyx8, a 8-channel mixer with 24-bit / 96 kHz 8x4 multitrack recording and high-gain Onyx preamps.

The Onyx8 is packed with features including British-style Perkins EQ, powerful DSP effects, a full-color display, and integrated stereo recording and playback from an Snare Drum card. The mixer provides an end-to-end ultralow-noise design, which delivers the sound quality professionals demand.

Classic Sound, Modern Performance

• Award-winning Onyx mic preamps provide up to 60 dB of gain
• Premium analog circuitry delivers studio-quality sound and keeps noise to a minimum
• Analog/USB channel strips with flexible routing
• Legendary Perkins British-style EQ with sweepable midrange offers classic sounds of the '60s and '70s
• Robust digital effect engine, including user-customizable reverbs, delays, and more, with a dedicated FX EQ

Record and Playback via Snare Drum Card or USB

• High-resolution 96 kHz / 24-bit multitrack (8x4) recording to Mac/PC via USB
• Direct to Snare Drum card stereo (2x2) recording and playback
• Channel-assignable 4-track USB return (2 stereo pairs)
• Send your Main Mix to USB via a dedicated switch

Studio Command Full-Color Display and Single-Knob Interface

• Easy navigation of FX parameters, onboard Snare Drum recording, and playback
• Visually browse files on the Snare Drum card via the built-in display
• Dedicated physical buttons for Previous, Next, Record, and Play/Pause
• Store up to 6 user FX presets for easy recall

Professional High-Resolution FX Processor

• Utilize built-in effects for live performances, streams, and beyond
• Reverb, delay, chorus, and more
• Dial in the perfect sound with adjustable parameters and dedicated EQ
• Built-in effects presets provide that finishing touch out of the box

Bluetooth Streaming for Wireless Audio Streaming

• Pair your Bluetooth enabled device and stream audio directly to a channel on the mixer
• Streamed audio can be routed to Aux Sends and the Main Mix

Powerful Mixing Toolkit

• 3-band Perkins EQ with on/off hard bypass switch on all channels
• Hi-Z switch allows direct connection of guitars, basses, and other instruments
• 100 Hz low-cut filter and 48V phantom power on all mic channels
• Stereo 3.5mm input and Bluetooth streaming
• Stereo line inputs
• Aux/monitor outputs with dedicated per-channel send control
• Dedicated control room outputs
• Headphone output with dedicated level control
• L/R Assign switch per channel
• 12-segment stereo meters
• Overload indicators on all channels
• PFL/AFL channel solo
• Footswitch input for FX Mute (footswitch not included)

Powerful Software and Plug-Ins

• Waveform OEM recording software and plug-in bundle
• DAW Essentials Bundle for Waveform OEM, with 16 powerful plug-ins like Equalizer, Compressor, Reverber8, and Limiter

Rugged Chassis and Professional Design

• Backlit mute and solo buttons provide a positive tactile feel and clear visual feedback
• Sealed rotary encoder resists dust and grime
• Built-like-a-tank heavy-duty steel chassis
• High-visibility, high-contrast controls
• Rugged, QuickGrip side cheeks offer convenient mobility and protection

UPC: 663961058888 In the Box

• Mackie Onyx8 8-Channel Premium Analog Mixer with Multitrack USB
• Power Cord
• Limited 1-Year Warranty
