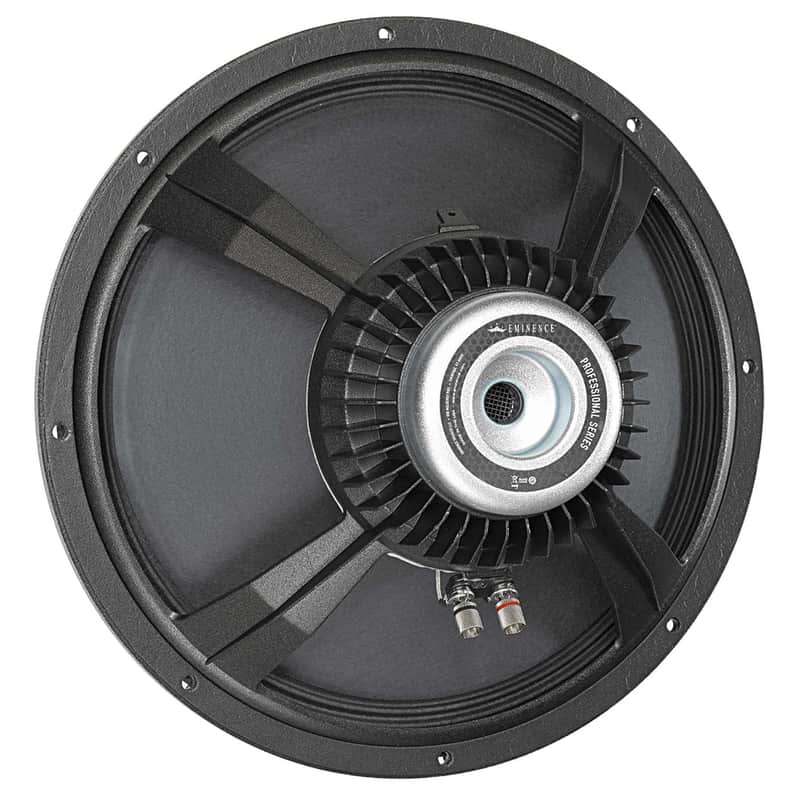

KappaLITE 3015LF

Description

Recommended for professional audio and bass in vented enclosures

Applications

Subwoofer | Woofer | Pro Audio | Bass Guitar

Box Type: Vented | Horn Loading

SPECIFICATION

Nominal Basket Diameter 15", 381 mm

Nominal Impedance* 8 Ω

Power Rating* Program Power 900 W Watts 450 W

Resonance 44 Hz

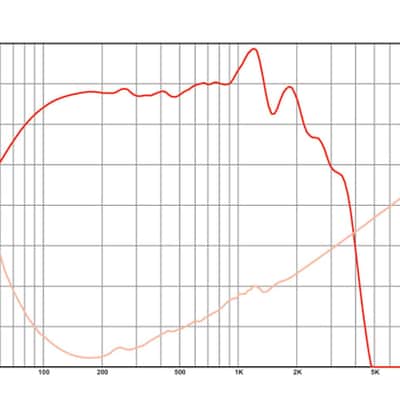

Usable Frequency Range 40 Hz - 1.5 kHz

Sensitivity* 98.4 dB

Magnet Weight 11 oz.

Gap Height 0.365", 9.3 mm

Voice Coil Diameter 3", 76 mm

THIELE & SMALL PARAMETERS

Resonant Frequency (fs) 44 Hz

DC Resistance (Re) 5.5 Ω

Coil Inductance (Le) 0.93m H

Mechanical Q (Qms) 8.97

Electromagnetic Q (Qes) 0.48

Total Q (Qts) 0.46

Compliance Equivalent Volume (Vas) 150.9 liters / 5.33 cu.ft.

Peak Diaphragm Displacement Volume (Vd) 846 cc

Mechanical Compliance of Suspension (Cms) 0.14 mm/N BL

Product (BL) 17 T-M

Diaphragm Mass Inc. Airload (MMs) 93 grams

Efficiency Bandwidth Product (EBP) 90

Maximum Linear Excursion (Xmax) 9.6 mm

Surface Area of Cone (Sd) 881.1 cm2

Maximum Mechanical Limit (Xlim) 17 mm

MOUNTING INFORMATION

Recommended Enclosure Volume Sealed N/a Vented 99-195 liters / 3.5-6.9 cu.ft.

Driver Volume Displaced 0.09 cu.ft. / 2.56 liters

Overall Diameter 15.32", 389.1 mm

Baffle Hole Diameter 14.03", 356.4 mm

Front Sealing Gasket Yes

Rear Sealing Gasket Yes

Mounting Holes Diameter 0.28", 7.1mm

Mounting Holes B.C.D. 14.56", 369.8mm

Depth 7.25", 184.2 mm

Net Weight 8.6 lbs, 3.9 kg

Shipping Weight 10.7 lbs, 4.85 kgs

MATERIALS OF CONSTRUCTION

Coil Construction Copper voice coil

Coil Former Kapton former

Magnet Composition Neodymium magnet

Core Details Vented core

Basket Materials Die-cast aluminum basket/heatsink

Cone Composition Treated paper cone

Cone Edge Composition Cloth cone edge

Dust Cap Composition Treated paper dust cap
