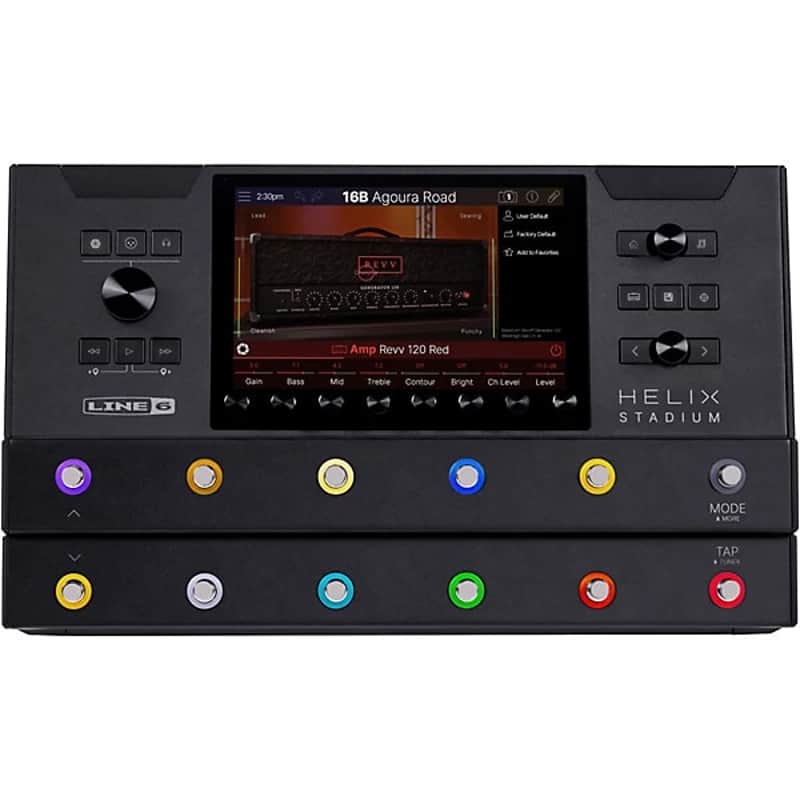

Line 6 Helix Stadium Floor Multi-Effects Guitar Processor ( 121321665 )

Helix Stadium Floor multi-effects guitar processor introduces a bold evolution in Line 6 amp modeling, built on the all-new Agoura modeling methodology. It captures the physical behavior of classic tube amps with stunning accuracy—including transformer coloration, tube saturation and real speaker interaction. You’ll experience amp tones that don’t just sound authentic—they feel right under your hands, responding dynamically to your playing style with remarkable detail and nuance.

Hype Control and Proxy Cloning for Personalized Tone Crafting

Helix Stadium Floor features a groundbreaking Hype control that allows you to morph between strikingly authentic amp sounds and idealized, polished versions—perfect for dialing in tones that feel live-ready or studio-finished with a single twist. The new Proxy engine uses cloud-based cloning to replicate the sound of your own amps, cabinets and effects, making it easier than ever to integrate your favorite analog gear into your digital rig without compromise.

High-Resolution Touchscreen Workflow With Focus View and Preset Audition

Navigation is fast, intuitive and inspiring thanks to the high-resolution 8" touchscreen paired with 11 knobs, 13 buttons and 12 onboard footswitches. Key features like Focus View deliver context-sensitive control with minimal menu diving, while Preset Audition lets you preview tones using built-in audio clips and on-screen explanations—streamlining your creative process onstage or off. Helix Stadium also includes free Helix Stadium Edit software for full-screen remote editing and patch management.

Showcase Engine Automates Complex Stage Setups With Ease

Designed to be the centerpiece of your stage rig, the Helix Stadium Floor’s Showcase engine automates everything from preset and snapshot recall to controlling external MIDI devices, lighting and video systems—even playback of up to eight internal stereo audio tracks. With built-in Wi-Fi and Bluetooth, you can wirelessly control your entire performance setup or make last-minute edits without reaching for a cable. It’s like having a full tech crew at your feet.

Full System Integration With Expand D10 and EX2 Support

Helix Stadium Floor offers deep connectivity and expandability to match any rig. In addition to extensive onboard I/O—including instrument and mic inputs, XLR and 1/4" outputs, four send/returns, S/PDIF, USB MIDI and DIN MIDI—you get a proprietary Nexus port for connecting the optional Expand D10 unit. Expand D10 adds support for Variax guitars via VDI, Powercab speaker systems via L6 LINK and 8-channel optical output for complex routing setups. The optional EX2 expression pedal with toe switch (sold separately) adds real-time control for volume, wah, pitch and more, while the Helix Stadium Backpack offers rugged, road-ready protection with custom internal compartments.

Future-Proof Design With Helix/HX Compatibility and More

Helix Stadium Floor is fully compatible with your existing Helix and HX presets, allowing for a seamless upgrade experience. The unit supports up to 48 dynamic blocks, four stereo signal paths and a flexible Matrix mixer that enables custom routing to multiple outputs. With its future-ready firmware architecture, Helix Stadium is designed from the ground up to support new tools and updates, ensuring it grows with your creative ambitions.

Features

• Agoura modeling captures tube amp response and dynamics
• Hype control morphs between authentic and idealized tones
• Proxy engine clones amps, cabs and effects via the cloud
• 8" high-resolution touchscreen for intuitive editing
• Focus View provides contextual parameter control
• Preset Audition lets you preview tones with audio clips
• Showcase engine automates MIDI, audio, lighting and more
• Wi-Fi and Bluetooth for wireless editing and control
• Matrix mixer enables custom routing to multiple outputs
• Nexus port connects optional Expand D10 I/O unit (sold separately)
• Supports EX2 expression pedal with toe switch control
• Fully compatible with Helix and HX presets

SpecsProduct Type

• Type: Streamlined amp and effects processor

Modeling & Cloning

• Modeling engine: Agoura modeling methodology
• Cloning: Proxy cloud-based amp, cab and effect cloning
• Hype control: Morphs between authentic and idealized amp sounds

Signal Processing

• Dynamic blocks: Up to 48
• Signal paths: Up to four stereo paths
• Effects: 260+ premium Line 6 effects
• Routing: Matrix mixer for separate output mixes

User Interface

• Main display: 8" high-resolution touchscreen
• Scribble strips: Not included
• Knobs: 11
• Buttons: 13

User Interface Features

• Focus View: Yes (contextual parameter control)
• Preset Audition: Yes (audio preview and info text)
• Editing software: Free Helix Stadium Edit application
• Wireless control: Built-in Wi-Fi and Bluetooth

Footswitches & Expression Pedals

• Footswitches: 12 onboard, supports up to two external
• Expression pedal: Supports up to two external (no onboard treadle)

I/O & Connectivity

• Instrument inputs: 1
• Microphone input: 1
• Line outputs: XLR and 1/4"
• Headphone output: 1
• Send/return jacks: 4
• Control jacks: 2 multipurpose (dual function)
• Digital I/O: S/PDIF
• USB ports: USB MIDI + USB-A
• MIDI: MIDI DIN In/Out/Thru
• Expansion: Nexus port

Expansion Support

• Optional Expand D10: Adds VDI (Variax), L6 LINK (Powercab+) and 8-channel optical output

Showcase Engine

• Automation: Controls presets, snapshots, MIDI, lighting and video
• Playback: Plays up to 8 internal stereo audio tracks, tempo-synced

Preset Compatibility

• Helix/HX presets: Fully compatible

Firmware Architecture

• Future-ready: Supports upcoming updates and tools

Physical Dimensions & Weight

• Width: 16"
• Depth: 10.1"
• Weight: 7.5 lb (3.4 kg)
