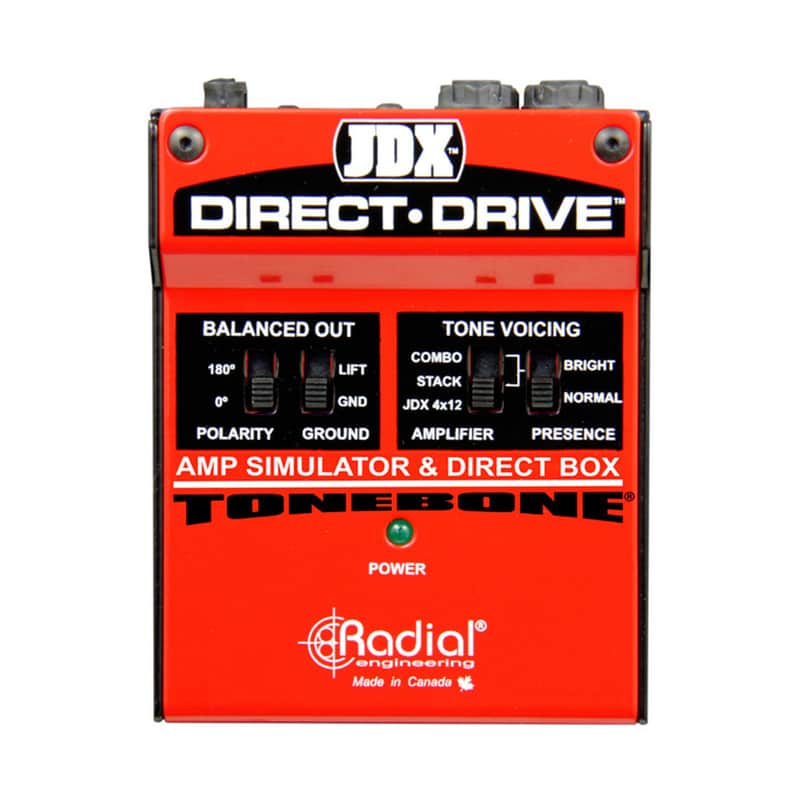

The Radial JDX Direct-Drive is a unique and powerful device that emulates the sound of a guitar amplifier while doubling as a direct box. Unlike a typical direct box that merely transfers the sound of the pedals to the PA, the Direct-Drive simulates the tone and feel of a real guitar amp, producing a much more realistic sound. In other words, with the Direct-Drive on your pedalboard, you can do a gig without carrying an amp to the club.

Key Features

• Guitar amp simulator for pedalboards
• Eliminates need to bring an amp to the gig
• 4 x 12 half-stack & open back combo tones
• Employs Radial’s popular JDX tone shaping

Technical Specifications

Circuit Type
Class-A BiFET input buffer with electronic frequency shaping circuitry
Frequency Response
Shaped for guitar use
Dynamic Range
83dB to 100dB
Total Harmonic Distortion
<0.01%
Noise
-78dBU
Intermodulation Distortion
>0.1 @ -15dBu Out
Maximum Input
> +5dBu
Maximum Gain - input to XLR output
0dB
Minimum Gain - input to 1/4" output
-5.8dB
Clip Level - XLR output
> +5dBu
Output Impedance - XLR output
600 Ohms
Output Impedance - 1/4" output
100 Ohms
Power
40mA, 9VDC (center pin negative)
Construction
14-gauge steel chassis and outer shell
Finish
Durable powder coat
Shipping Weight
1.6 lbs. (.7 kg)
Size
4.75" x 3.625" x 2" (121 x 92 x 51mm)
Warranty
Radial 3-year, transferable
