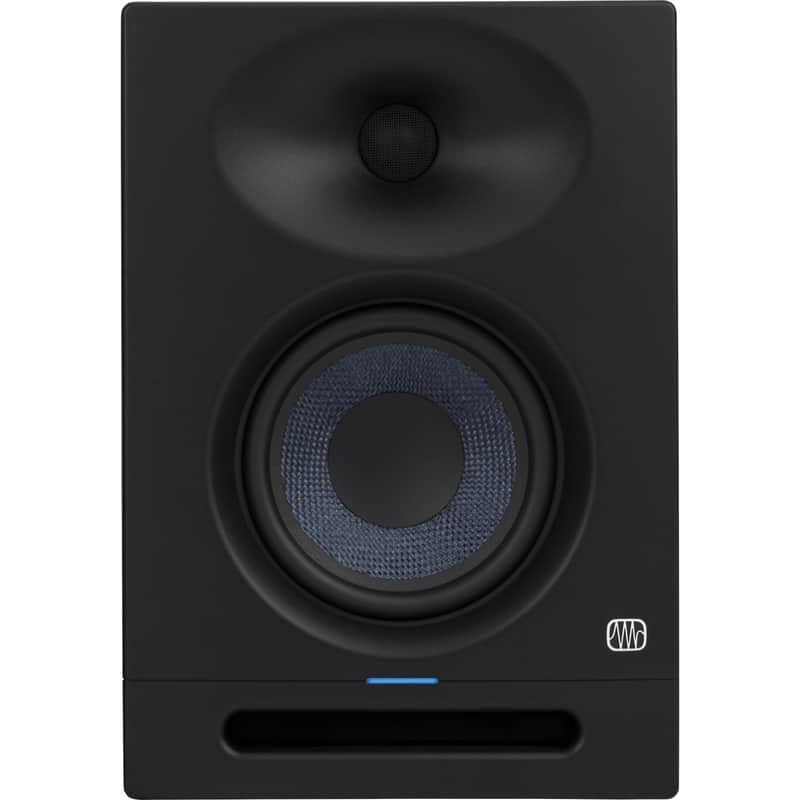

Building on the reputation of its award-winning predecessors, the Eris® Studio 5 is a substantial update that delivers richer low-end and more controlled high-frequency response that reproduces every detail in your recordings with a natural sound unparalleled in its class. Designed for superior performance in both home studio and small professional mix rooms, the Eris Studio 5 combines flexible connectivity with sonic accuracy that puts it a class all its own.

The custom-designed EBM (Elliptical Boundary Modeled) waveguide provides superior high-frequency response and wide 120-degree horizontal dispersion to create a broader sweet spot. Narrow vertical dispersion reduces reflections from your desk, and a silk-dome tweeter ensures snappy, accurate transient reproduction. An elegant new enclosure design improves the waveguide performance so you'll hear the finest details in your mix.

The woven-composite low-frequency driver offers Eris' signature tight, clear bass with plenty of punch. Its 80W of biamped power make the Eris Studio 5 more efficient than previous designs. The ported enclosure maximizes bass response and allows the Eris Studio 5 to reach down to an astonishing 48 Hz - without a subwoofer!

Flexible input options let you connect almost any line-level source, from mixers to audio interfaces and more. You'll have no problem hooking your Eris speakers up to virtually anything.

Set Up Your Studio Monitors For Your Room.
\n Eris® Studio 5 active monitors are equipped with Acoustic Tuning controls to ensure the flattest response in your mix environment. You get Low Cut, Mid, and High controls, as well as three-way Acoustic Space tuning that makes it easy to compensate for the boundary bass boost that occurs when a speaker is placed too close to a wall.

Honest. Expressive. Powerful.
\n Like all PreSonus® studio monitors, the Eris® Studio 5 offers consistent, accurate listening. Their stylish design makes them a welcome addition to any mix space and their smooth, incredibly even frequency response ensures that your mixes will sound great everywhere.

Key Features

\n
• 5.25-inch woven composite low-frequency driver
\n
• inch, ultra-low mass, silk-dome, high frequency driver
\n
• Crossover Frequency, 3.5 kHz
\n
• 120° x 60° EBM waveguide provides a sweet spot
\n
• Front-firing acoustic port for superior bass-frequency reproduction and optimized, resonance-suppressing internal bracing
\n
• 80W, Class AB dual amplification
\n
• 48 Hz to 20 kHz frequency response
\n
• 102 dB Peak SPL (@ 1 meter)
\n

Technical Specifications

Voltage
\n 100-120V
\n Wattage
\n 80 Watts
\n Cabinet Material
\n Vinyl-Laminated, Medium-Density Fiberboard
\n Connection Type
\n IEC
\n Protections
\n RF interference
\n Output-current limiting
\n Over-temperature
\n Turn-on/off transient
\n Subsonic filter
\n Audio Switches
\n Acoustic Space (Flat, -2 dB, -4 dB)Low Cut (Flat, 80 Hz, 100 Hz @ -12 dB / octave)
\n Audio Controls
\n VolumeHigh Frequency (±6 dB, center 10 kHz, continuously variable)Mid Frequency (±6 dB, center 1 kHz, continuously variable)
\n Peak SPL
\n 102 dB (@ 1 meter)
\n Crossover Frequency
\n 3.5 kHz
\n Monitor Inputs
\n 1- Balanced XLR, 1- Balanced 1/4†TRS, 1- Unbalanced RCA
\n HF Transducers
\n 1†Ultra Low Mass, Silk Dome Tweeter
\n LF Transducers
\n 5.25" Woven Glass Fiber Composite
\n Frequency Response
\n 48 Hz - 20 kHz
\n Input Impedance
\n 10 kO
\n Coverage Pattern
\n 100 degree (H) x 60 degree (V)
\n Monitor Amplifier Power
\n LF Amplifier - 45W, HF Amplifier - 35W
\n Input Impedance
\n10 kO
